Generic X550-T2 Dual Port 10GB Ethernet Adapter User Manual

Gabatarwa

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Generic X550-T2 Dual Port 10GB Ethernet Adapter. Please read this manual thoroughly before installation and retain it for future reference.

Bayanin Tsaro

• Ensure your computer is powered off and unplugged from the wall outlet before installing or removing the adapter.
• Discharge any static electricity from your body by touching a grounded metal object before handling the adapter.
• Handle the adapter by its edges to avoid touching components on the circuit board.
• Kada a fallasa adaftar ga danshi ko yanayin zafi mai tsanani.

Abubuwan Kunshin

Tabbatar cewa duk abubuwa suna nan a cikin kunshin:

• Generic X550-T2 Dual Port 10GB Ethernet Adapter
• Low-profile bracket (if applicable, for small form factor PCs)
• Driver CD (or instructions for driver download)

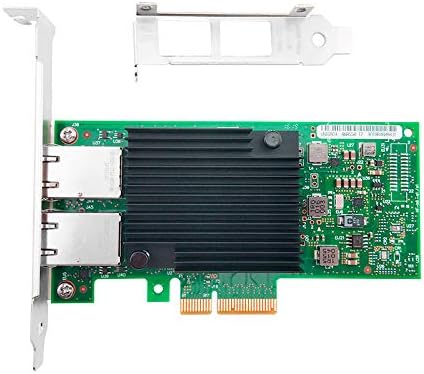

Image 1: The X550-T2 Dual Port 10GB Ethernet Adapter, showing the main board and included brackets.

Saita da Shigarwa

1. Tsarin Kashe Wuta: Kashe kwamfutarka gaba ɗaya sannan ka cire kebul ɗin wutar lantarki daga mashigar bango.
2. Bude Cajin Kwamfuta: Cire gefen gefen akwati na kwamfutarka don samun dama ga motherboard.
3. Gano wuri na PCI-E: Identify an available PCI Express (PCI-E) x4 or larger slot on your motherboard.
4. Cire Rufin Ramin: Carefully remove the metal slot cover corresponding to the chosen PCI-E slot on the back of your computer case.
5. Sanya Adafta: Align the adapter with the PCI-E slot and firmly press it down until it is securely seated. Ensure the bracket is flush with the case opening.
6. Amintaccen Adafta: Use a screw to secure the adapter's bracket to the computer case.
7. Rufe Case: Maye gurbin sashin gefen akwati na kwamfuta.
8. Sake haɗa Wuta: Plug the power cord back into the wall outlet and power on your computer.

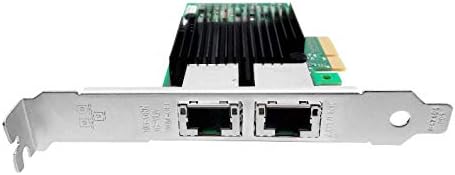

Hoto 2: Rufewa view of the dual RJ45 ports on the adapter, ready for network cable connection.

Umarnin Aiki

Shigar da Direba

Upon first boot after installation, your operating system (e.g., Windows) may automatically detect and install the necessary drivers. If not, follow these steps:

1. Insert Driver CD: If provided, insert the driver CD into your computer's optical drive and follow the on-screen instructions.
2. Zazzage Direbobi: If no CD is provided or for updated drivers, visit the manufacturer's website (or a reputable driver download site for Generic products) and download the appropriate drivers for the X550-T2 adapter and your operating system.
3. Sanya Direbobi: Run the downloaded driver installer and follow the prompts. Restart your computer if prompted.

Haɗin Yanar Gizo

Once drivers are installed, connect your network cables:

• Connect one end of a standard RJ45 Ethernet cable to one of the ports on the X550-T2 adapter.
• Connect the other end of the Ethernet cable to your network switch, router, or directly to another 10GB Ethernet device.
• Repeat for the second port if dual connectivity is desired.
• Verify network connectivity through your operating system's network settings.

Kulawa

• Keep the computer case clean and free of dust to ensure proper airflow and prevent overheating of the adapter.
• Periodically check for updated drivers on the manufacturer's webshafin don tabbatar da ingantaccen aiki da dacewa.
• Avoid physical impact or bending of the adapter.

Shirya matsala

No network connectivity after installation:

• Ensure the adapter is fully seated in the PCI-E slot.
• Verify that the network cables are securely connected to both the adapter and the network device.
• Check if the drivers are correctly installed in your operating system's Device Manager. Reinstall drivers if necessary.
• Confirm that the network switch/router is powered on and functioning correctly.

Slow network speeds:

• Ensure you are using CAT6a or CAT7 Ethernet cables for 10GB speeds.
• Verify that your network switch/router supports 10GB Ethernet.
• Update the network adapter drivers to the latest version.
• Check for other network congestion or issues on your network.

Adapter not detected by the system:

• Reseat the adapter in the PCI-E slot.
• Try installing the adapter in a different PCI-E slot if available.
• Ensure your motherboard's BIOS/UEFI settings are configured to enable PCI-E slots.

Ƙayyadaddun bayanai

Garanti da Taimako

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the retailer. As this is a Generic product, specific warranty terms may vary by seller.
