Gabatarwa

The D-Link DMS-108 is an 8-Port 2.5GB Unmanaged Multi-Gigabit Switch designed to enhance network performance for devices requiring high-speed data transfer. This switch is ideal for connecting 2.5G NAS, 2.5G PCIe Adapters, 2.5G Servers, gaming PCs, and Wi-Fi 6 Access Points with 2.5G WAN ports. It features a durable metal housing, fanless design for silent operation, and supports energy-efficient Ethernet (EEE) to reduce power consumption.

This manual provides instructions for setting up, operating, maintaining, and troubleshooting your DMS-108 switch.

Hoto: Gaba view of the D-Link DMS-108 switch, showing 8 Ethernet ports and LED indicators.

Abubuwan Kunshin

Tabbatar cewa kunshin ku ya ƙunshi abubuwa masu zuwa:

• D-Link DMS-108 8-Port 2.5GB Multi-Gigabit Canjawa mara sarrafa
• Adaftar Wuta
• Jagorar Shigar da Sauri (QIG)

Idan wasu abubuwa sun ɓace ko sun lalace, tuntuɓi mai siyarwar D-Link na gida don taimako.

Saita

Shigarwa na Jiki

The DMS-108 switch can be placed on a desktop or mounted on a wall. Ensure the installation location provides adequate ventilation and is free from excessive heat, humidity, or electromagnetic interference.

Haɗa Sauyawa

1. Haɗin Wuta: Connect the provided power adapter to the power input port on the rear panel of the DMS-108 switch. Plug the other end of the power adapter into a standard electrical outlet. The power LED on the front panel will illuminate.

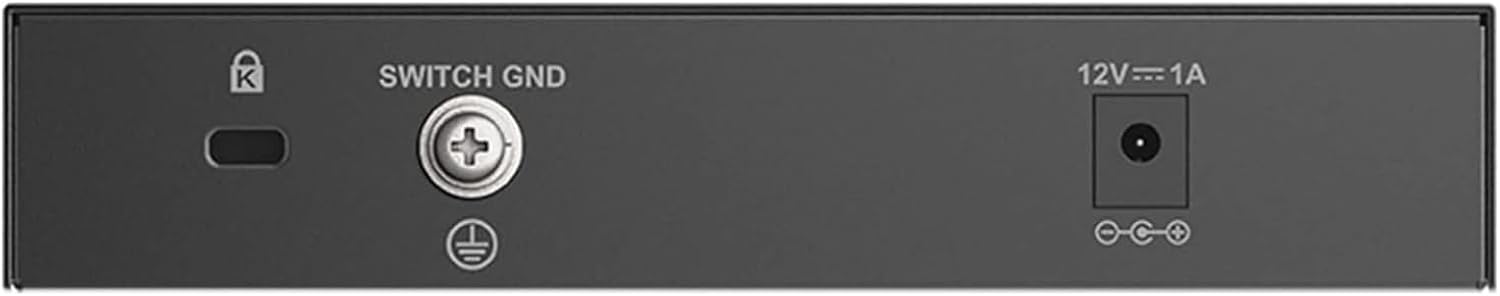

   Image: Rear panel of the DMS-108, highlighting the power input (12V===1A), ground screw (SWITCH GND), and Kensington lock slot.

2. Haɗin Na'urar Yanar Gizo: Connect your network devices (e.g., computers, NAS, Wi-Fi 6 APs, gaming consoles) to any of the 8 available 2.5 Gigabit Ethernet ports using standard Ethernet cables (Cat5e or Cat6 recommended for optimal performance).

   Image: The D-Link DMS-108 switch demonstrating compatibility with existing Cat5e and Cat6 cables for 2.5x faster transfer rates.

The DMS-108 is a plug-and-play device, requiring no software installation or configuration. It will automatically detect the link speeds of connected devices (100Mb/1G/2.5G) and adjust for optimal performance.

Aiki da Sauyawa

LED Manuniya

The front panel of the DMS-108 features LED indicators for each port and for power status. These LEDs provide visual feedback on the switch's operation:

• LED Power: Indicates if the switch is powered on.
• Hanyar haɗi/Dokar LEDs (kowace tashar jiragen ruwa):
  • Solid Green: Indicates a stable 2.5G network link.
  • Solid Blue: Indicates a stable 1G network link.
  • Solid Amber: Indicates a stable 100Mb network link.
  • Flashing: Indicates network activity (data transmission).
  • Off: No link or device connected.

Hoto: cikakken bayani view of the DMS-108's front panel, highlighting the Link/Act LEDs for each of the 8 ports.

Mabuɗin Siffofin

• Tattaunawa ta atomatik: Automatically senses the link speeds of connected devices (100Mb/1G/2.5G) and adjusts for compatibility and optimal performance.
• Ingancin Sabis (QoS): Allows network traffic to be classified into 8 priority levels, ensuring critical data (e.g., gaming, video streaming) receives preferential treatment.
• Ikon Gudanarwa: Helps minimize dropped packets during periods of high network congestion, leading to more reliable connections.
• IGMP Snooping: Optimizes multicast data streams, which is beneficial for bandwidth-intensive applications like IPTV, by forwarding multicast traffic only to ports that have requested it.
• Energy-Efficient Ethernet (EEE) (IEEE 802.3az): Reduces power consumption during periods of low network activity, conserving energy and lowering operational costs.

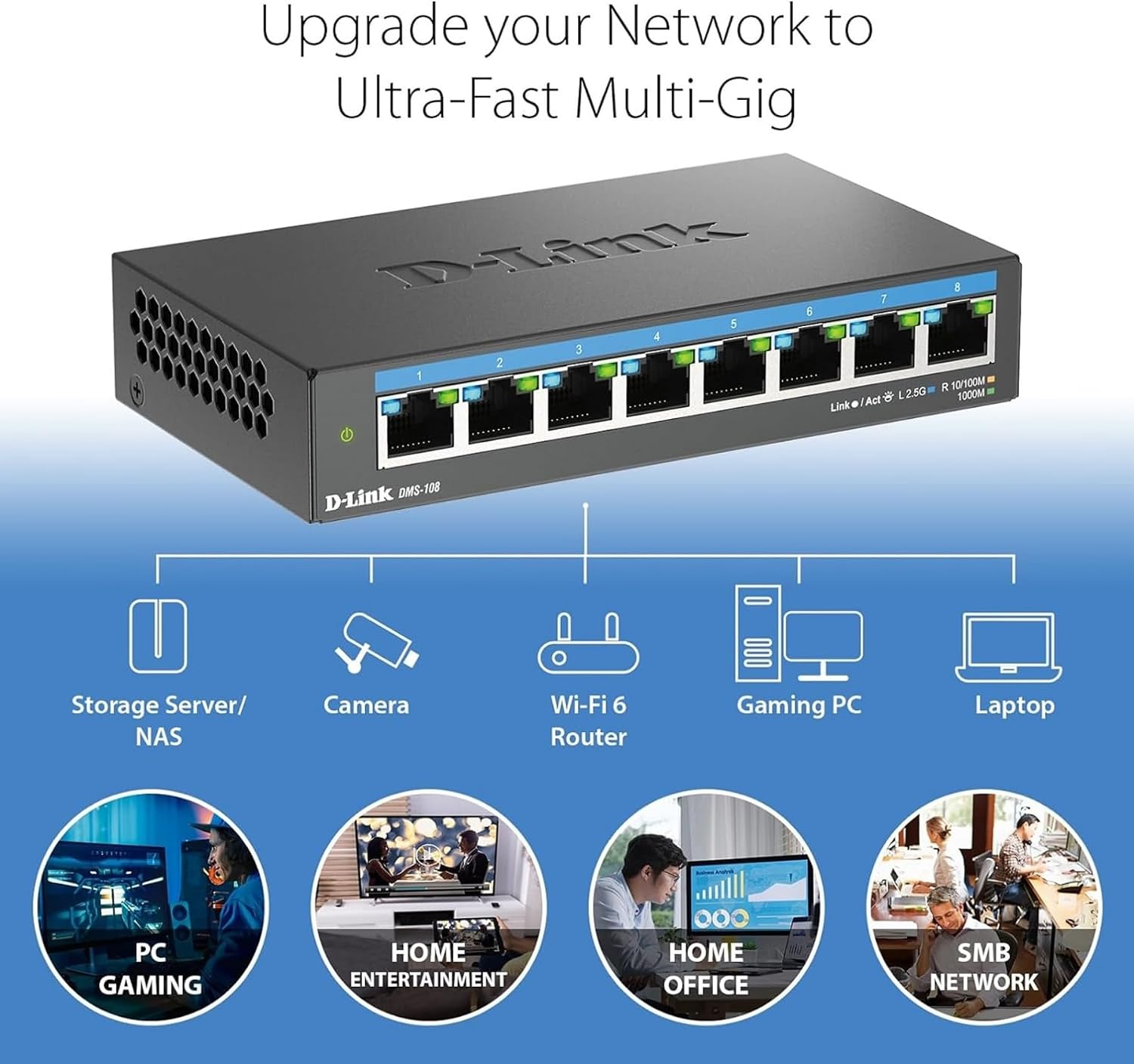

Image: An illustration demonstrating how the DMS-108 switch can upgrade a network to ultra-fast multi-gigabit speeds by connecting various devices.

Image: The DMS-108 switch highlighting its durable metal casing, silent fanless design, energy-efficient features, and D-Link's 35+ years of experience.

Kulawa

To ensure optimal performance and longevity of your D-Link DMS-108 switch, follow these maintenance guidelines:

• Samun iska: Ensure the switch is placed in a location with adequate airflow. Do not block the ventilation holes on the sides of the device.
• Tsaftacewa: Periodically clean the exterior of the switch with a soft, dry cloth. Avoid using liquid or aerosol cleaners, as they may damage the device.
• Na'urar USB: A kiyaye kebul na cibiyar sadarwa a tsari kuma ba tare da lanƙwasawa ko lanƙwasawa mai yawa ba don hana lalacewar sigina.
• Tushen wutan lantarki: Use only the power adapter provided with the switch. If the power adapter is damaged, contact D-Link support for a replacement.
• Sabunta Firmware: As an unmanaged switch, the DMS-108 typically does not require firmware updates. However, always refer to the D-Link support website for any specific recommendations.

Shirya matsala

If you encounter issues with your DMS-108 switch, refer to the following troubleshooting tips:

• Babu Ƙarfi:
  • Check if the power adapter is securely connected to the switch and the electrical outlet.
  • Verify that the electrical outlet is functioning correctly by plugging in another device.
  • Ensure the power LED on the switch is illuminated.
• No Link on a Port:
  • Tabbatar cewa kebul na Ethernet yana da haɗin tsaro da tashar sauyawa da kuma na'urar da aka haɗa.
  • Verify that the connected device is powered on and its network adapter is enabled.
  • Gwada kebul na Ethernet daban don kawar da kebul mara kyau.
  • Test with a different port on the switch.
  • Check the Link/Act LED for the specific port. If it's off, there's no active connection.
• Slow Network Gudun:
  • Ensure you are using Cat5e or Cat6 Ethernet cables for 2.5G connections. Older cables (e.g., Cat5) may limit speed.
  • Verify that your connected devices support 2.5G Ethernet. The switch will operate at the highest common speed.
  • Check the Link/Act LED color for the port to confirm the negotiated speed (Green for 2.5G, Blue for 1G, Amber for 100Mb).
  • Reduce network congestion by limiting simultaneous bandwidth-intensive activities.
• Haɗin Kai Tsaye:
  • Duba duk hanyoyin haɗin kebul don ganin ko sun lalace ko kuma sun lalace.
  • Ensure the switch is not overheating. Provide adequate ventilation.
  • Avoid placing the switch near sources of strong electromagnetic interference.

If problems persist, contact D-Link Technical Support for further assistance.

Ƙayyadaddun bayanai

Bayanin Garanti

The D-Link DMS-108 switch comes with a Limited Warranty. For detailed information regarding the terms and conditions of your warranty, please refer to the official D-Link webshafin ko katin garanti wanda aka haɗa tare da samfurin ku.

Optional protection plans may be available for purchase, offering extended coverage beyond the standard manufacturer's warranty. Please check with your retailer for details on available protection plans.

Taimako

For technical support, product registration, or to download the latest documentation and software, please visit the official D-Link support website:

www.dlink.com/support

You can also find additional resources and frequently asked questions on the D-Link website.

Bidiyon Samfura

Watch the official D-Link video for an overview of D-Link Switch Solutions for various environments.
