Generic Targa TG-H12000.4 Hitman Series 4-Channel AmpJagorar Mai Amfani

1. Gabatarwa

Thank you for choosing the Generic Targa TG-H12000.4 Hitman Series 4-Channel Amplififi. Wannan jagorar tana ba da mahimman bayanai don shigarwa, aiki, da kuma kula da ku amplifier. Please read this manual thoroughly before attempting installation or operation to ensure optimal performance and safety.

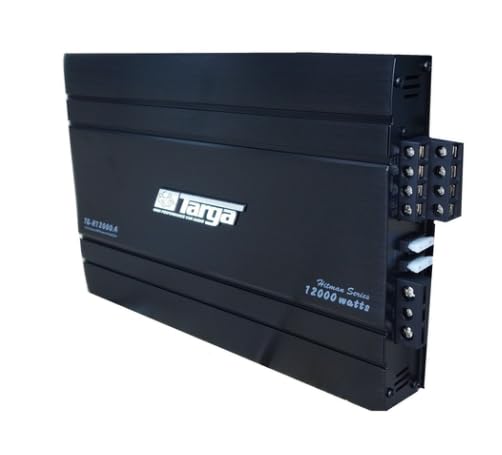

Hoto 1.1: Gaba view of the Targa TG-H12000.4 Hitman Series 4-Channel Amplifier. Wannan hoton yana nuna baƙar fata mai santsi casing with the 'Targa' logo and model number 'TG-H12000.4' visible on the top surface.

2. Bayanin Tsaro

Koyaushe ku kiyaye waɗannan matakan tsaro don hana rauni ko lalacewa ga ampmai ɗaukar kaya ko abin hawa:

• An Shawarar Shigar Ƙwararru: Installation of car audio equipment can be complex. If you are unsure about any part of the installation process, seek assistance from a qualified professional.
• Cire haɗin baturi: Before starting any wiring, disconnect the vehicle's negative battery terminal to prevent electrical shorts.
• Waya Mai Kyau: Ensure all wiring is correctly routed and secured to prevent pinching, cutting, or shorting. Use appropriate gauge wires for power, ground, and speakers.
• Samun iska: Shigar da amplifier a wurin da ke ba da damar samun isasshen iska don hana zafi fiye da kima. amplifier tare da kafet ko wasu kayan.
• Kariyar Fuse: Always use the correct fuse rating as specified in the specifications. Never replace a fuse with one of a higher rating.
• A guji Danshi: Kar a fallasa abin ampmai rage danshi zuwa ruwa ko danshi.
• Matakan girma: Tsawaita tsayin daka zuwa matakan girma na iya haifar da lalacewar ji. Daidaita ƙara zuwa matakin aminci.

3. Abubuwan Kunshin

Da fatan za a duba akwatin don abubuwa masu zuwa:

• 1 x Targa TG-H12000.4 Hitman Series 12000W 4-Channel Amplififi
• Jagorar mai amfani (wannan takaddar)
• Mounting hardware (screws, etc. - na iya bambanta ta fakiti)

4. Saita da Shigarwa

4.1. Hawan da Amplififi

Choose a secure, well-ventilated location for mounting the amplifier. Common locations include under a seat, in the trunk, or on an amplifier rack. Ensure the mounting surface is solid and can support the amplifier's weight. Use the provided mounting hardware to secure the amplifier firmly.

Hoto 4.1: Sama-sama view of the Targa TG-H12000.4 amplifier. This image shows the overall dimensions and the heat sink fins along the sides, which are crucial for proper heat dissipation.

4.2. Haɗin Waya

All wiring should be done with the vehicle's battery disconnected.

1. Ƙarfi (B+): Connect a heavy-gauge power cable (e.g., 8 AWG or 4 AWG depending on total system power) directly from the positive (+) terminal of the vehicle's battery to the B+ terminal on the amplifier. Install an in-line fuse holder within 18 inches (45 cm) of the battery.
2. Kasa (GND): Connect a heavy-gauge ground cable of the same size as the power cable from the GND terminal on the amplifier to a clean, unpainted metal surface on the vehicle's chassis. Ensure a good electrical connection.
3. Nesa (REM): Connect a remote turn-on wire (typically 18 AWG) from the REM terminal on the amplifier zuwa fitarwa daga na'urar kai ta nesa. Wannan wayar tana juya shi zuwa ga na'urar kai ta nesa. amplifier on and off with your car stereo.
4. Shigarwar RCA: Connect RCA cables from the pre-amp outputs of your head unit to the RCA input jacks on the ampmai sanyaya wuta.
5. Fitar magana: Haɗa lasifikan ku zuwa tashoshi masu fitar da lasifikan akan amplifier. Ensure correct polarity (+ to + and - to -) for each speaker. This is a 4-channel amplifier, allowing for connection of up to four speakers or two speakers in bridged mode (refer to specific wiring diagrams for bridged mode, not detailed here).

4.3. Saitunan farko

After all wiring is complete and checked, reconnect the vehicle's battery.

• Samun Ikon: Start with the gain control set to minimum. Gradually increase the gain until you achieve a clear, undistorted sound at your desired maximum volume level from the head unit. Avoid setting the gain too high, as this can cause distortion and damage to speakers.
• Saitunan Ketare: The amplifier features a frequency response of 20Hz - 36Hz. Adjust any built-in crossover settings (if available on your specific model or head unit) to match your speaker types (e.g., high-pass for tweeters, low-pass for subwoofers). For mid-range and tweeter applications, a high-pass filter is typically used.

5. Aiki da Amplififi

Once installed and configured, the amplifier operates automatically with your car's audio system. When the head unit is turned on, the amplifier will power up via the remote turn-on wire. When the head unit is turned off, the amplifier will power down.

• Sarrafa ƙara: Adjust the overall system volume using your head unit. The amplifier's gain control is for matching the output of the head unit to the amplifier's input sensitivity, not for daily volume adjustments.
• ingancin sauti: If you experience distortion, first check the gain settings. If distortion persists, inspect all wiring connections and ensure speakers are correctly matched to the amplifier's output capabilities.

6. Kulawa

The Targa TG-H12000.4 amplifier yana buƙatar kulawa kaɗan.

• Tsaftacewa: Shafa lokaci-lokaci ampA shafa wajen lifier da kyalle mai laushi da busasshe don cire ƙura. Kada a yi amfani da sinadarai masu ƙarfi ko masu tsaftace muhalli.
• Samun iska: Tabbatar cewa yankin da ke kewaye da shi yana da amplifier remains clear of obstructions to allow for proper airflow and prevent overheating.
• Haɗin kai: A wasu lokutan, duba duk hanyoyin haɗin waya don tabbatar da cewa suna da aminci kuma ba su da tsatsa.

7. Shirya matsala

Idan kuna fuskantar matsaloli tare da ku amplifier, koma zuwa ga wadannan gama gari matsaloli da mafita:

8. Ƙayyadaddun bayanai

The following are the technical specifications for the Targa TG-H12000.4 Hitman Series 4-Channel Amplififi:

• Samfura: TG-H12000.4
• Matsakaicin Ƙarfin: 12000W
• Ƙarfin RMS: 4 x 85W
• Tashoshi: 4-Tashar
• Martanin Mitar: 20Hz - 36Hz (-9dB)
• Alamar siginar-zuwa-Noise Ratio: 9dB ku
• Fuse: 2 x20 a
• Lambar Samfurin Abu: TG_H12000.4

9. Garanti Bayani

This product comes with a Limited 6 Months Manufacturer's Warranty. Please retain your proof of purchase for any warranty claims. The warranty covers manufacturing defects under normal use. It does not cover damage caused by improper installation, misuse, accident, neglect, or unauthorized modification.

10. Taimako

For further assistance, technical support, or warranty inquiries, please contact the retailer where you purchased this product. They will be able to provide guidance or direct you to the appropriate service channels.
