1. Gabatarwa
Thank you for choosing the Nextech Fast Sync & Charge Micro USB Cable. This cable is designed for efficient charging and high-speed data transfer for a wide range of Micro USB-compatible devices. Its robust construction ensures durability and reliable performance.
Mabuɗin fasali:
- Saurin Caji: Supports up to 2.4A for quick power delivery.
- Daidaita Bayani Mai Sauri: Achieves data transfer speeds of up to 480 Mbps.
- Yarda da Duniya: Works with Android smartphones, tablets, power banks, and other Micro USB devices.
- Zane Mai Dorewa: Reinforced and flexible construction for enhanced longevity.
- Siffofin Tsaro: Built-in overcharge and heat protection.
Image: Illustration demonstrating fast charging capabilities of the cable, showing a smartphone charging at 15W with 3A high-speed charging.
2. Saita
Setting up your Nextech Micro USB Cable is straightforward. Follow these steps to begin charging or transferring data:

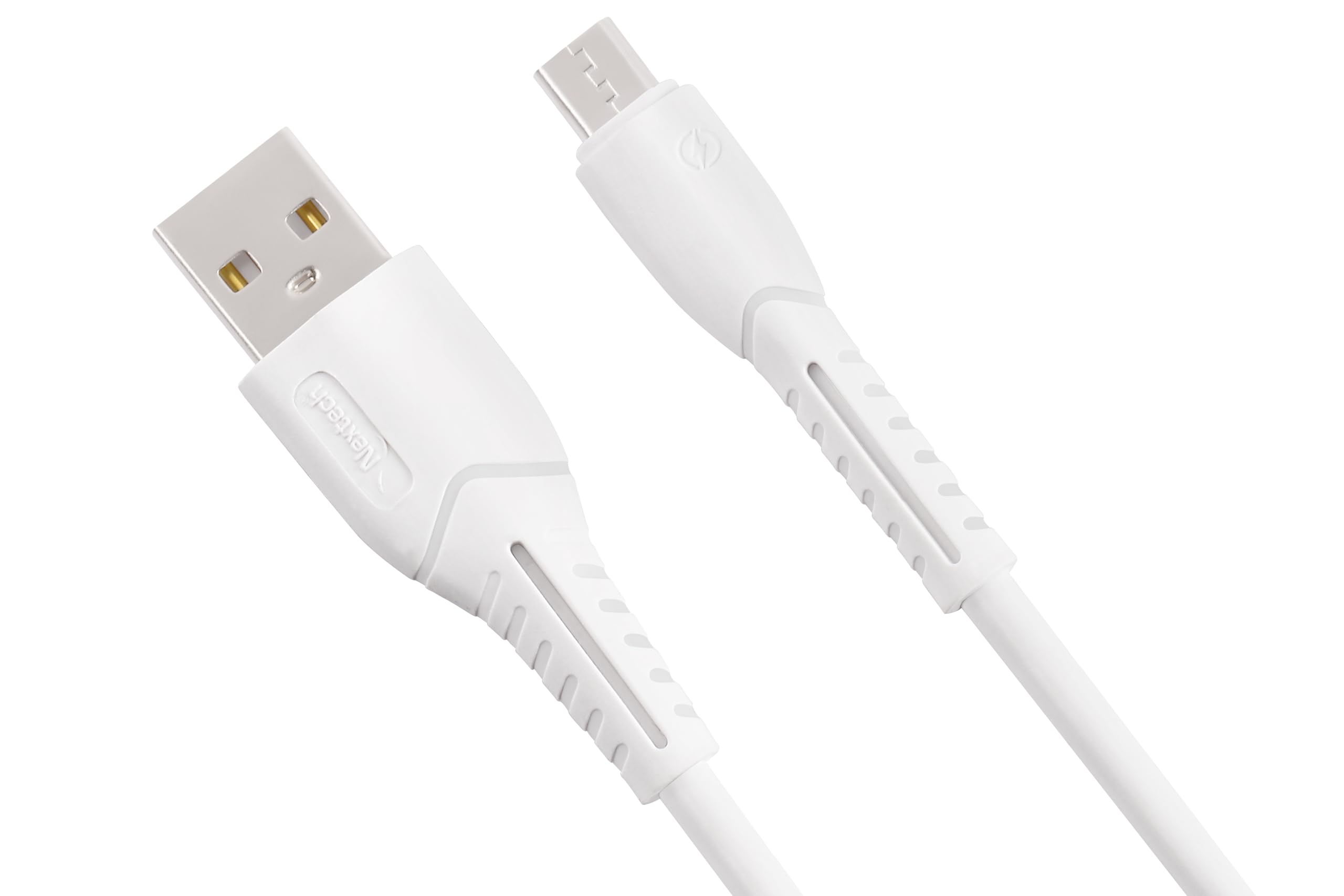

- Gano masu haɗawa: The cable has two distinct ends: a standard USB Type-A connector and a Micro USB connector.
- Haɗa zuwa Na'ura: Insert the Micro USB connector into the Micro USB port of your smartphone, tablet, or other compatible device. Ensure it is fully inserted.
- Connect to Power/Data Source: Insert the USB Type-A connector into a compatible USB port on a wall charger, power bank, laptop, or desktop computer.
- Tabbatar da Haɗin kai: For charging, your device should indicate that it is receiving power. For data transfer, your computer should recognize the connected device.
3. Umarnin Aiki
Cajin Na'urarku:
- Connect the Micro USB end to your device and the USB-A end to a compatible USB wall adapter or power bank.
- Ensure the power source provides sufficient output (e.g., 5V/2.4A) for fast charging.
- The device's battery indicator will show charging status.
Canja wurin bayanai:
- Connect the Micro USB end to your device and the USB-A end to a USB port on your computer.
- Your computer should detect the connected device. You may need to select a 'File Transfer' or 'MTP' mode on your device if prompted.
- You can now access your device's storage to transfer files.
Image: Image depicting data synchronization and charging, highlighting a data transfer speed of 480 Mbps between a smartphone and a laptop.
4. Kulawa
Proper care and maintenance will extend the life of your Nextech Micro USB Cable:
- Ajiya: Ajiye kebul ɗin a wuri mai sanyi, bushewa nesa da hasken rana kai tsaye da matsanancin zafi.
- Tsaftacewa: Use a soft, dry cloth to gently wipe the cable and connectors. Avoid using liquids or abrasive cleaners.
- Gudanarwa: Avoid sharp bends, kinks, or excessive pulling on the cable, especially near the connectors, to prevent internal damage. Always grasp the connector head when plugging or unplugging, not the cable itself.
- Dubawa: Periodically check the cable for any signs of wear, fraying, or damage. Discontinue use if damage is observed.
5. Shirya matsala
If you encounter issues with your Nextech Micro USB Cable, refer to the following common solutions:
| Matsala | Dalili mai yiwuwa | Magani |
|---|---|---|
| Na'urar ba ta caji | Loose connection, faulty power source, damaged cable, dirty device port. | Ensure connectors are fully inserted. Try a different wall adapter or USB port. Inspect cable for damage. Clean device's Micro USB port carefully. |
| A hankali caji | Low-power charger, background apps, cable damage. | Use a charger with appropriate output (e.g., 2.4A). Close unnecessary apps on your device. Check cable for damage. |
| Babu canja wurin bayanai | Loose connection, incorrect device settings, faulty computer USB port, damaged cable. | Ensure connections are secure. On your device, select 'File Transfer' or 'MTP' mode. Try a different USB port on your computer. Inspect cable for damage. |
| Kebul ya bayyana ya lalace | Damuwar jiki, lalacewa da tsagewa. | Discontinue use immediately to prevent potential hazards. Replace the cable. |
6. Ƙayyadaddun bayanai
Detailed specifications for the Nextech Fast Sync & Charge Micro USB Cable (Model NC61):
- Alamar: Nextech
- Sunan Samfura: Micro USB Cable
- Lambar Samfura: NC61
- Nau'in Haɗawa: Micro USB (Male), USB Type-A (Male)
- Nau'in Kebul: USB
- Na'urori masu jituwa: Smartphones, Tablets, Laptops, Power Banks, Charging Adapters, Headphones
- Siffofin Musamman: Data Transfer, Fast Charging, High Speed
- Yawan Canja wurin Bayanai: Megabytes 480 a cikin dakika daya
- Matsakaicin Yanzu: 3 Amps
- Watatage: 15 Watts
- Tsawon Kebul: Mita 1
- Launi: Fari
- Nauyin Abu: 30 Grams
- Ƙasar Asalin: Indiya
Image: Diagram illustrating the universal compatibility of the Micro USB cable with various devices including smartphones, laptops, power banks, and chargers.
7. Garanti da Tallafawa
For warranty information, technical support, or any inquiries regarding your Nextech Micro USB Cable, please contact the manufacturer directly:
- Mai ƙira: Amson Interconnect Pvt Ltd
- Lambar Tuntuɓa: +91-9953694939
- Imel: Social@amson.in
Da fatan za a riƙe shaidar siyan ku don kowane da'awar garanti.
