Azwok AKB74955602 Replacement Remote Control User Manual

Gabatarwa

This manual provides instructions for the proper setup, operation, and maintenance of your Azwok AKB74955602 replacement remote control for LG Air Conditioners. This remote is designed to function as a direct replacement for the original AKB74955602 remote, offering essential controls for your air conditioning unit.

Saita

1. Shigar da Baturi

The remote control requires two AAA or AA batteries (not included). Follow these steps to install them:

1. Nemo murfin sashin baturi a bayan ramut.
2. Danna ƙasa akan shafin kuma zame murfin.
3. Insert two AAA or AA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Zamar da murfin ɓangaren baturin baya zuwa wurin har sai ya danna amintacce.

Hoto: Na baya view of the Azwok AKB74955602 remote control, showing the battery compartment.

2. Amfanin Farko

This replacement remote control is ready to use immediately after battery installation. No programming or pairing is required. Point the remote directly at your LG Air Conditioner unit and press the desired function button.

Umarnin Aiki

The Azwok AKB74955602 remote control provides essential functions for your LG Air Conditioner. Below is a general overview of common buttons and their functions:

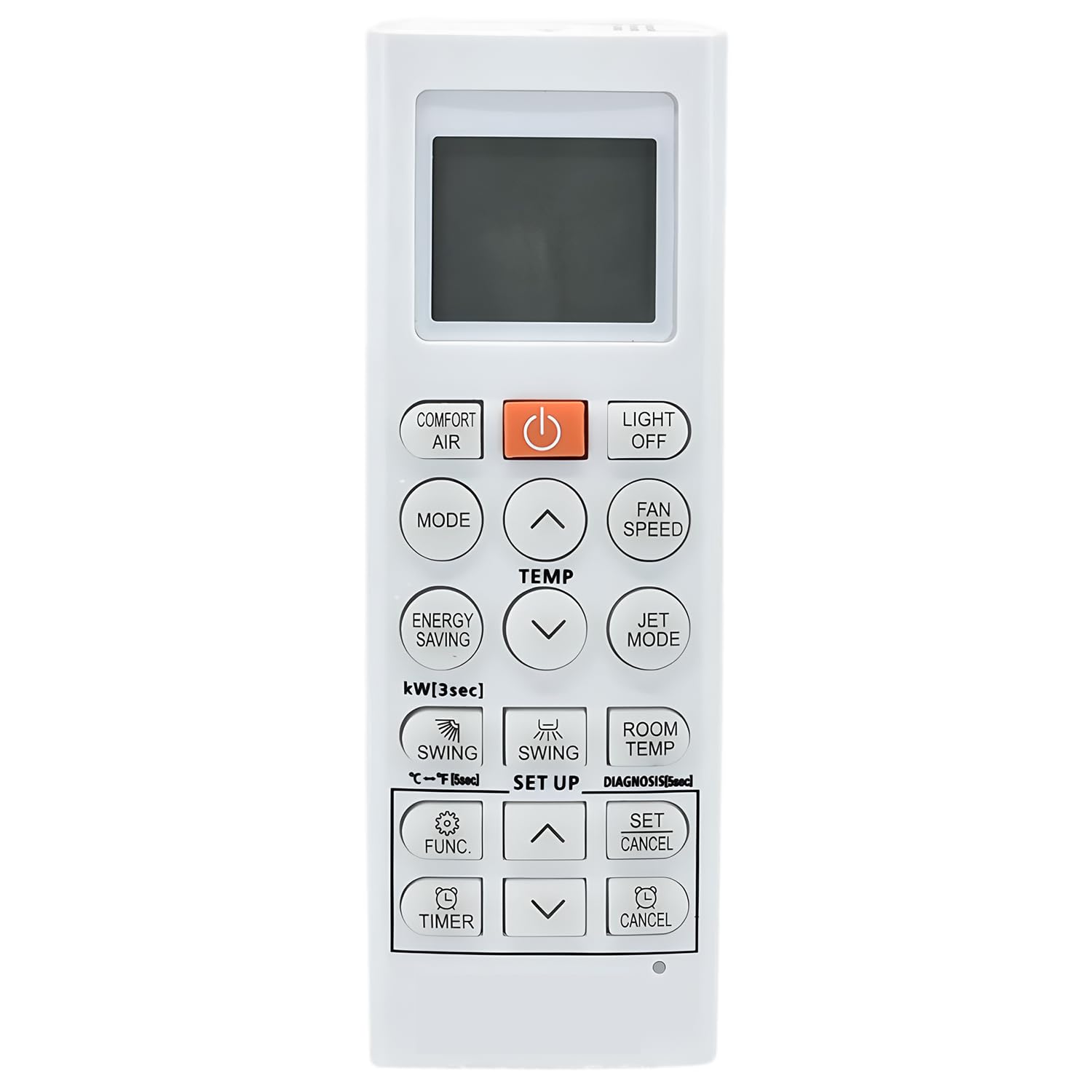

Hoto: Gaba view of the Azwok AKB74955602 remote control, displaying various function buttons.

• WUTA: Yana kunna ko kashe na'urar sanyaya daki.
• kwatance: Cycles through operating modes such as Cool, Heat, Fan, Dry, and Auto.
• TEMP ▲/▼: Yana daidaita yanayin zafi sama ko ƙasa.
• FAN GUDU: Yana canza saurin fanka (misali, Ƙasa, Matsakaici, Babba, Ta atomatik).
• SWING: Yana kunna ko kashe aikin lilon louver.
• TIMER: Yana saita mai ƙidayar lokaci don ayyukan kunnawa/kashewa ta atomatik.
• BARCI: Activates the sleep mode for comfortable night operation.

Samfura masu jituwa

This remote control is compatible with a wide range of LG Air Conditioner models, including but not limited to:

• AKB75215402, AKB74955615, AKB74955604, AKB75215401, AKB74955602, AKB74955603
• LSN363HLV, LS243HLV, LS303HLV, LS363HLV, LSU363HLV, LSU303HLV, LSN243HLV, LSN303HLV
• LA090HSV5, LA240HSV3, LA180HSV5, LS120HEV2, LS090HEV2, LS240HEV2, LS090HXV, LS120HXV, LSU120HEV2
• HSN24ISY, HSN12ISY, HSN18IPA, HSN12IPC, HSN12IPA, HSN09IPA
• WH21SLN-18, WH24SLN-18, WH18SLN-18, WH30SRN-18, WH18SLN-19, HSN09ISW, HSN12ISW, WH34SRN-18
• TC18GQ, TC12GQ, TC09GQR, TC07GQR, TC24GQ
• LGHP12S, LGHP09S, LSU090HEV2, LSN240HEV2, LSU240HEV2, LSN090HEV2
• LS090HSV5, LS120HSV5, LS180HSV5, LS180HEV, LSU180HEV, LSN180HEV, LSN120HXV2, Ls090HXV2, LSU120HXV2, LS120HXV2
• Art cool LA120HSV5, LSU090HSV5, LAN120HSV5, LSU120HSV5, LAN180HSV5, LSU180HSV5, LAU240HSV3, LAN240HSV3, LAN090HSV5
• HSN30IPC, HSN24ISW, HSN24IPA, HSN18ISY

Kulawa

Tsaftace Ikon Nesa

To maintain optimal performance and appearance, clean the remote control regularly:

• Shafa saman tare da laushi, bushe bushe.
• Don datti mai taurin kai, dampa cikin zane da ruwa da kuma ɗan ƙaramin abu mai laushi, sannan a goge bushe nan da nan.
• Kada a yi amfani da masu tsaftace kayan gogewa, barasa, ko sinadarai masu narkewa, domin suna iya lalata saman na'urar ko abubuwan da ke cikinta.

Madadin Baturi

Replace batteries when the remote's response becomes sluggish or the air conditioner does not respond to commands. Always replace both batteries at the same time with new ones of the same type (AAA or AA). Remove batteries if the remote will not be used for an extended period to prevent leakage.

Shirya matsala

If your remote control is not functioning as expected, consider the following common issues and solutions:

• Remote baya amsawa:
  • Bincika idan an shigar da batura daidai tare da madaidaicin polarity (+/-).
  • Sauya tsoffin batura da sababbi.
  • Tabbatar cewa babu cikas tsakanin ramut da mai karɓar kwandishan.
  • Confirm you are within the effective operating range of the air conditioner.
• Air conditioner not turning on/off:
  • Verify the air conditioner unit is plugged in and receiving power.
  • Ensure the remote is pointed directly at the air conditioner's infrared receiver.
• Takamaiman ayyuka ba sa aiki:
  • Some advanced functions may vary slightly depending on your specific LG Air Conditioner model. Refer to your air conditioner's original manual for detailed function descriptions.

Ƙayyadaddun bayanai

Garanti da Taimako

Bayanin Garanti

This Azwok remote control comes with a Garanti na watanni 12 from the date of purchase. This warranty covers manufacturing defects and ensures the remote functions as described. For warranty claims or issues, please retain your proof of purchase.

Tallafin Abokin Ciniki

If you encounter any issues not covered in this manual, or if you are unsure about the compatibility of this remote with your specific LG Air Conditioner model, please contact our customer support. We are available to assist you in finding the correct solution or confirming suitability.

Note: If your model number is not listed in the compatible models section or your original remote differs significantly, please reach out to us for assistance.
