1. Gabatarwa
This manual provides essential information for the safe and effective use of your Feit Electric PLT26E/41 26-Watt Compact Fluorescent Light (CFL) Bulb. This PL-shaped bulb is designed for general purpose and task lighting, offering a cool white light at 4100K with 1600 lumens of output while consuming only 26 watts of electricity. It features a GX24Q-3 4-pin base for compatibility with various fixtures. Please read these instructions carefully before installation and retain them for future reference.
2. Bayanin Tsaro
- GARGADI: Always turn off the power supply at the circuit breaker or fuse box before installing, removing, or servicing the bulb.
- Do not use this bulb with dimmers unless specifically rated for dimmable CFLs. This bulb is not designed for use with dimmers.
- Bada kwan fitila ya yi sanyi gaba daya kafin a kula.
- Handle the bulb carefully. Do not drop or subject it to excessive force.
- This bulb contains a small amount of mercury. Follow local regulations for proper disposal. Do not dispose of with regular household waste.
- Don amfanin cikin gida kawai. Kada a bijirar da ruwa ko danshi mai yawa.
- Ensure the fixture is compatible with a GX24Q-3 4-pin base and the bulb's wattage.
3. Samfurin Ya Ƙareview

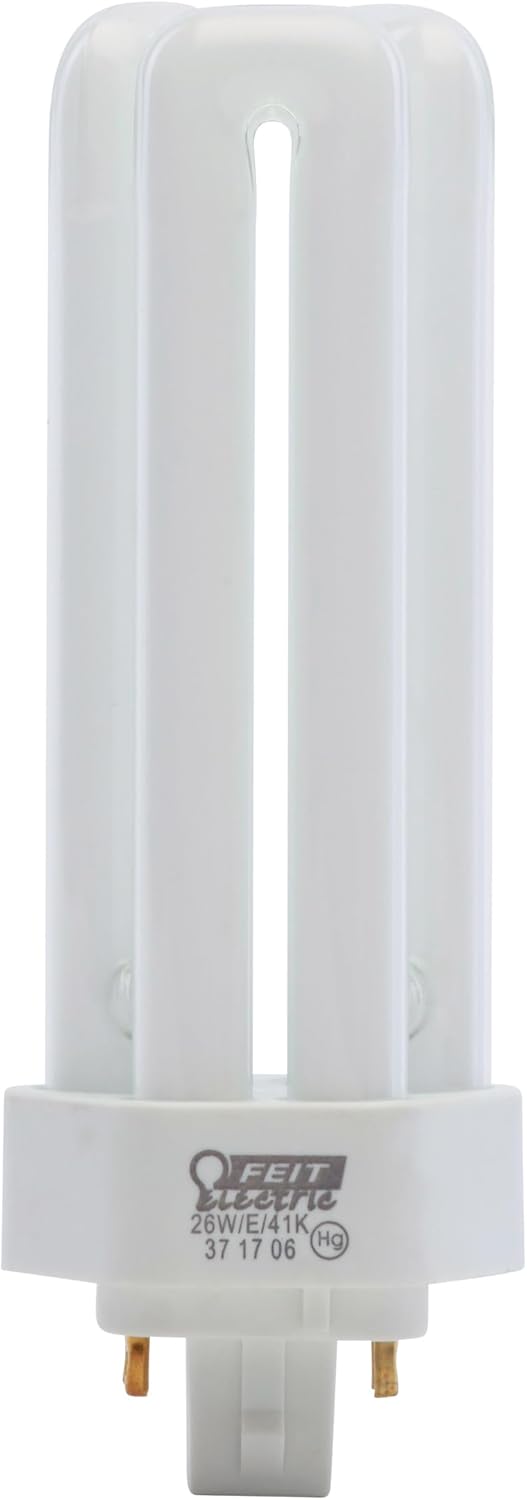

The Feit Electric PLT26E/41 is a high-efficiency compact fluorescent lamp designed for longevity and bright illumination. Its PL-shape allows for efficient light distribution in various fixtures, including recessed and overhead lighting.
Mabuɗin fasali:
- Ingantacciyar Makamashi: Consumes only 26 watts, providing 1600 lumens of light output.
- Hasken Fari mai Sanyi: 4100K color temperature, ideal for task lighting and general illumination in offices, kitchens, and workspaces.
- GX24Q-3 4-Pin Base: Designed for plug-and-play compatibility with ballasted fixtures.
- Tsawon Rayuwa: Engineered for an average life of up to 10,000 hours, reducing replacement frequency.
- Compact PL-Shape: Efficient design for fitting into various lighting enclosures.
4. Saita da Shigarwa
Follow these steps to safely install your Feit Electric CFL bulb:
- Kashe Wuta: Before beginning, ensure the power to the light fixture is completely turned off at the circuit breaker or fuse box.
- Identify Base Type: Confirm your fixture requires a GX24Q-3 4-pin base CFL bulb.
- Saka kwan fitila: Carefully align the four pins on the bulb's base with the corresponding slots in the fixture's socket.
- Amintaccen Haɗin kai: Gently push the bulb into the socket until it is fully seated. Some fixtures may require a slight twist to lock the bulb in place. Do not force the bulb.
- Dawo da Power: Da zarar an shigar da kwan fitila amintacce, mayar da wutar lantarki zuwa na'urar da ke jujjuyawa.
5. Umarnin Aiki
After proper installation, operating the Feit Electric PLT26E/41 CFL bulb is straightforward:
- Ensure the light fixture's switch is in the 'OFF' position before restoring power to the circuit.
- Flip the light switch to the 'ON' position to illuminate the bulb.
- To turn off the bulb, flip the light switch to the 'OFF' position.
Note: CFL bulbs may take a few moments to reach full brightness, especially in colder environments.
6. Kulawa
The Feit Electric PLT26E/41 CFL bulb requires minimal maintenance:
- Tsaftacewa: To clean the bulb, ensure the power is off and the bulb is cool. Gently wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Sauya: When the bulb reaches the end of its lifespan, follow the installation steps in reverse to remove it. Always turn off the power before attempting to remove the bulb.
- zubar: Due to the mercury content in CFLs, proper disposal is crucial. Do not discard with regular household trash. Consult your local waste management authority for recycling options or designated collection points for fluorescent bulbs.
7. Shirya matsala
If your Feit Electric PLT26E/41 CFL bulb is not functioning as expected, consider the following:
- Bulb Ba Ya Haske:
- Check that the power supply to the fixture is turned on at the circuit breaker.
- Ensure the bulb is correctly and securely seated in the socket. Remove and re-insert if necessary.
- Verify that the fixture is compatible with a GX24Q-3 4-pin base CFL bulb and its wattage.
- If the fixture has a ballast, ensure it is functioning correctly.
- Test the bulb in another compatible fixture, if available, to determine if the issue is with the bulb or the fixture.
- Bulb Flickers:
- Ensure the bulb is fully inserted and making good contact with the socket.
- Confirm the fixture's ballast is compatible and functioning correctly.
- Avoid using with dimmer switches, as this bulb is not designed for dimming and may flicker or fail prematurely.

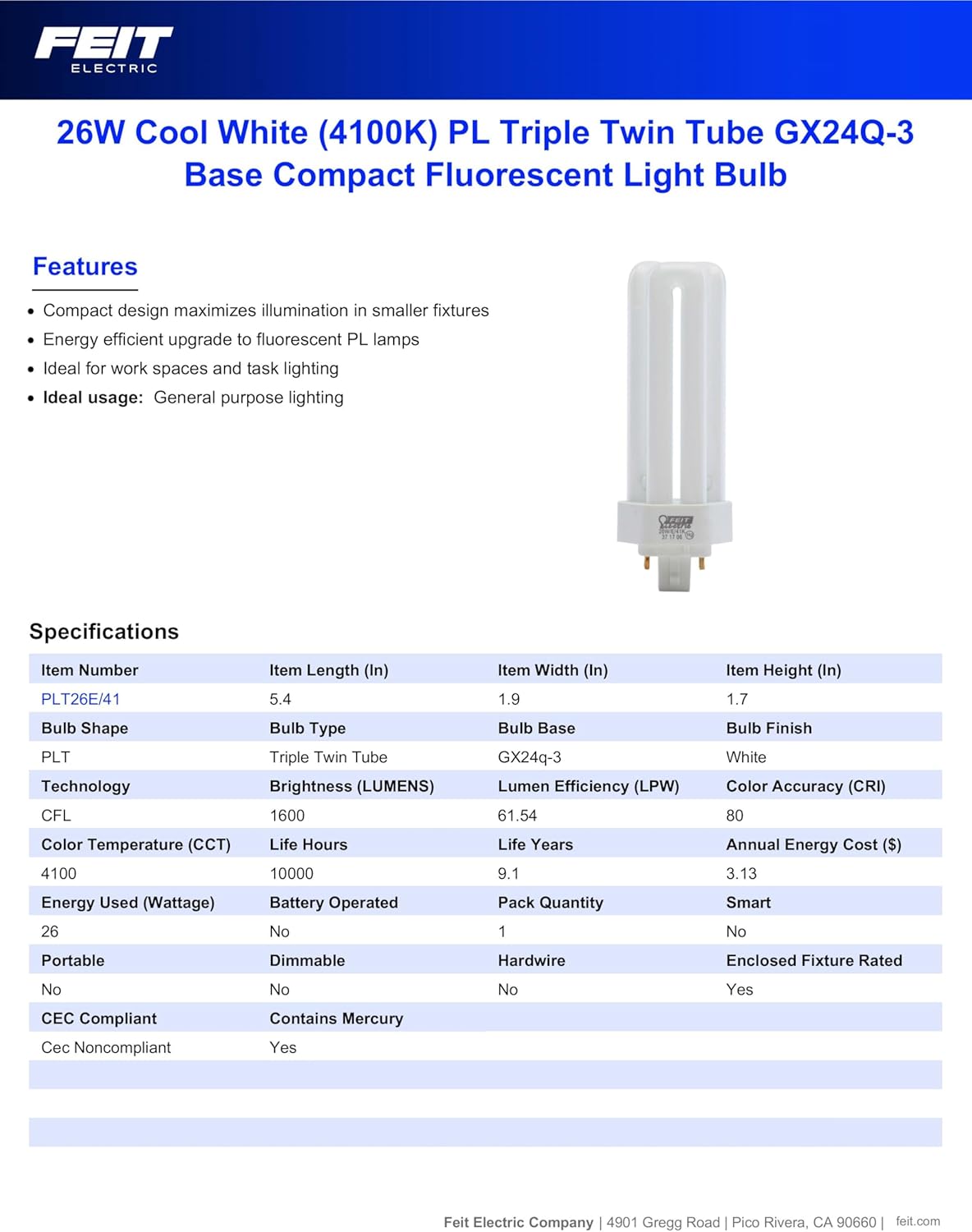

8. Ƙayyadaddun bayanai
Detailed technical specifications for the Feit Electric PLT26E/41 CFL Light Bulb:
| Ƙayyadaddun bayanai | Daraja |
|---|---|
| Lambar Samfura | PLT26E/41 |
| Alamar | Feit Wutar Lantarki |
| Nau'in Haske | CFL (Compact Fluorescent) |
| Watatage | 26 Watts |
| Tushen Bulb | GX24Q-3 (4-Pin) |
| Haske | 1600 Lumen |
| Zazzabi Launi | 4100K (Cool Fari) |
| Siffar | PL-Shaped |
| Matsakaicin Rayuwa | 10,000 Hours (approx. 9.1 years) |
| Voltage | 120 Volts |
| Amfanin Cikin Gida/Waje | Amfanin Cikin Gida Kawai |
| Kayan abu | Filastik |
| Girman samfur | 1.85"W x 1.95"H |
| Siffa ta Musamman | Energy-efficient (Uses only 26W) |
9. Garanti Bayani
This Feit Electric PLT26E/41 CFL Light Bulb is covered by a Garanti mai iyaka na shekara 1. This warranty covers defects in materials and workmanship under normal use. For warranty claims or further details, please retain your proof of purchase and contact Feit Electric customer support.
10. Taimako da Bayanan Tuntuɓi
For additional assistance, technical support, or to inquire about other Feit Electric products, please visit the official Feit Electric website ko tuntuɓi sashen sabis na abokin ciniki.
- Website: www.karafiya.com
- Refer to the product packaging for specific customer service contact numbers or email addresses.
