Whirlpool W10324651 Hub Replacement Instruction Manual

1. Samfurin Ya Ƙareview

The Whirlpool W10324651 Hub is a genuine replacement part designed for specific Whirlpool appliances. This component is crucial for the proper functioning of your appliance, ensuring durability and optimal performance. Using genuine OEM parts helps maintain the integrity and longevity of your appliance as originally intended by the manufacturer.

Hoto 1.1: This graphic illustrates the concept of Original Equipment Manufacturer (OEM) parts, emphasizing that Whirlpool, Maytag, KitchenAid, Amana, and JennAir are part of the Whirlpool Corporation family of brands, and their parts are specifically designed for their products.

2. Muhimman Bayanan Tsaro

Before attempting any repair or replacement, please read and understand all safety precautions. Failure to follow these instructions may result in personal injury, property damage, or appliance malfunction.

• Cire haɗin Wuta: Always disconnect the appliance from its power source (unplug or turn off circuit breaker) before beginning any service.
• Saka Kayan Kariya: Yi amfani da kayan kariya masu dacewa, kamar safar hannu da gilashin tsaro, don hana rauni.
• Tuntuɓi Kwararren: If you are unsure about any step or uncomfortable performing the repair, contact a qualified appliance service technician.
• Gudanar da Kulawa: Components may have sharp edges or pinch points. Exercise caution during handling and installation.

3. Jagoran Girkawa

This section provides general guidance for replacing the W10324651 Hub. Specific steps may vary depending on your appliance model. Always refer to your appliance's service manual for detailed instructions.

3.1. Kayan aikin da ake buƙata

• Screwdrivers (Phillips da Flathead)
• Wrenches or Socket Set
• Pliers
• Aiki safar hannu
• Gilashin Tsaro

3.2. Kafin Ka Fara

1. Ensure the appliance is completely disconnected from power.
2. Clear the work area around the appliance.
3. Have all necessary tools and the new W10324651 Hub ready.

3.3. Step-by-Step Replacement

1. Access the Hub: Depending on your appliance (washer or dryer), you will need to access the area where the hub is located. This may involve removing the agitator, wash plate, or other internal components.
2. Remove the Old Hub: Carefully unfasten any screws, bolts, or clips securing the old hub. Note the orientation and position of all parts for correct reassembly.
3. Inspect the Area: Clean any debris or residue from the shaft and surrounding area before installing the new hub.
4. Install the New Hub: Position the new Whirlpool W10324651 Hub onto the shaft, ensuring it seats correctly. Secure it with the provided fasteners or the original hardware if it is in good condition.
5. Sake tarawa: Reinstall all previously removed components in reverse order. Double-check all connections and fastenings.
6. Gwaji: Once fully reassembled and secured, reconnect power to the appliance and perform a test cycle to ensure proper operation.

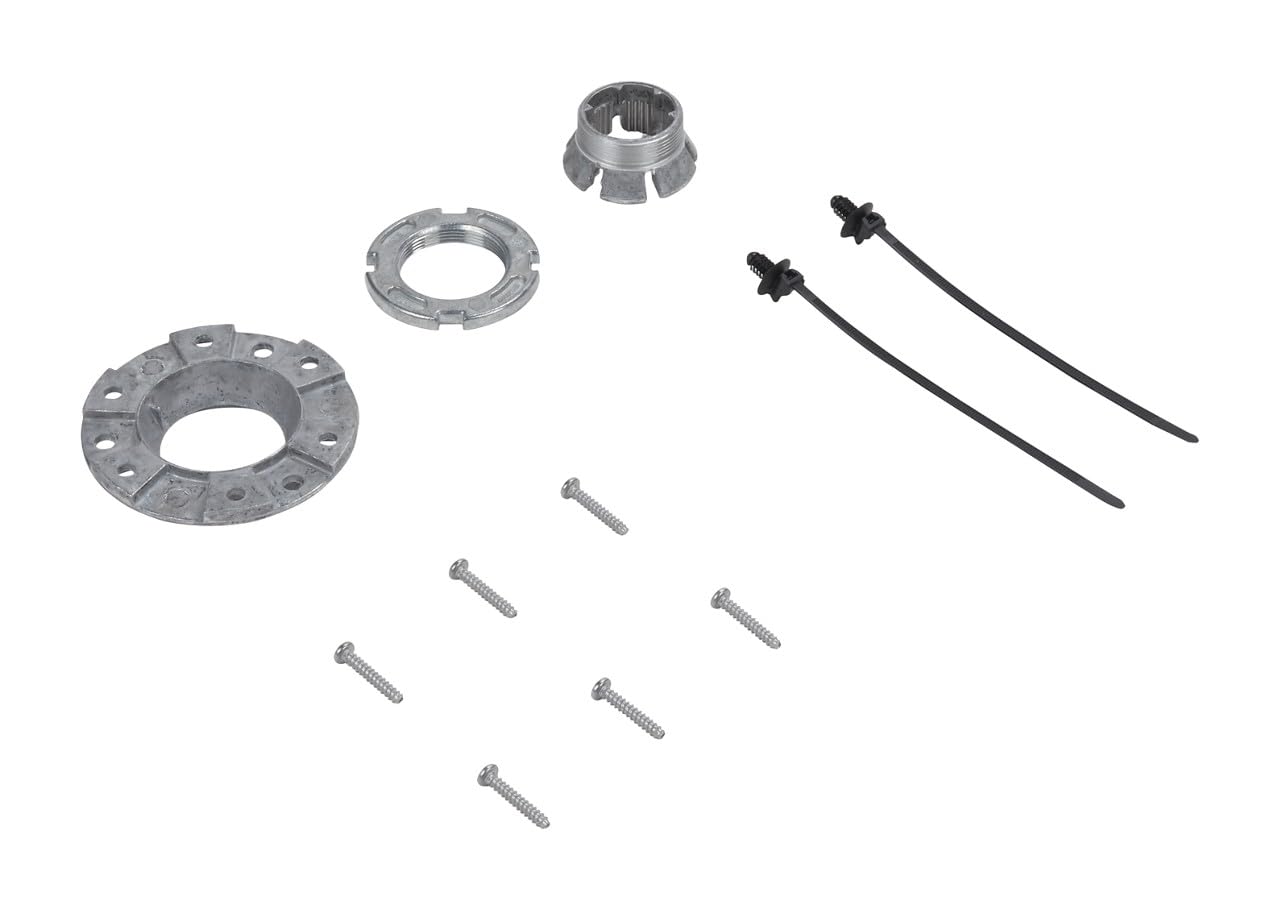

Hoto 3.1: This image displays the Whirlpool W10324651 Hub along with its accompanying installation hardware, including screws and zip ties, which are typically part of a replacement kit.

Hoto 3.2: A daki-daki view of the Whirlpool W10324651 Hub, showing its design and construction as a critical component for appliance function.

4. Aiki

The W10324651 Hub is an internal mechanical component that facilitates the rotational movement within your appliance, typically a washer or dryer. It does not have user-operable controls. Its correct installation ensures the smooth and efficient operation of the appliance's primary functions, such as agitation or spinning.

5. Kulawa

As an internal component, the W10324651 Hub generally requires no routine maintenance. However, to prolong the life of your appliance and its parts:

• Regularly clean your appliance according to its user manual to prevent buildup that could affect internal components.
• Avoid overloading your appliance, as this can put undue stress on the hub and other moving parts.
• Periodically inspect for unusual noises or vibrations, which could indicate wear or a loose component.

6. Shirya matsala

If your appliance is not functioning correctly after replacing the W10324651 Hub, consider the following:

• Duban Wuta: Ensure the appliance is properly plugged in and the circuit breaker has not tripped.
• Shigarwa Review: Double-check all steps of the installation process. Ensure the hub is securely fastened and all connections are tight.
• Correct Part: Verify that the W10324651 Hub is the correct part for your specific appliance model.
• Wasu batutuwa: The malfunction might be due to another component. If the problem persists, it is recommended to contact a qualified service technician for diagnosis.

7. Ƙayyadaddun bayanai

8. Garanti da Tallafawa

The Whirlpool W10324651 Hub is listed with Babu Garanti as per product specifications. For any questions regarding installation, troubleshooting, or general appliance support, please contact Whirlpool Customer Service directly or visit the official Whirlpool website for authorized service information.

Don ƙarin taimako, zaku iya ziyartar shafin Shagon Whirlpool akan Amazon or the official Whirlpool Corporation website.
