Gabatarwa
This manual provides essential instructions for the setup, operation, and maintenance of your Gigaset Handset and Charging Station. This product is compatible with various Gigaset phone systems, including models S2, S44, S200, S440, S445, S645, SX440, and SX445. Please read this manual carefully to ensure proper use and to maximize the lifespan of your device.
1. Saita
1.1 Buɗewa da Binciken Farko
Carefully unpack all components. Ensure that the handset, charging station, and power adapter are present and undamaged. If any items are missing or damaged, contact your retailer.
1.2 Connecting the Charging Station
- Connect the power adapter cable to the charging station.
- Toshe adaftan wutar cikin madaidaicin tashar lantarki.
- Place the charging station on a flat, stable surface, away from heat sources and direct sunlight.
Hoto 1.1: Sama view of the Gigaset charging station. This image shows the compact design of the charging station, ready to receive the handset.
1.3 Inserting the Battery and Charging the Handset
- Bude murfin ɗakin baturi a bayan wayar hannu.
- Insert the rechargeable battery, ensuring correct polarity.
- Rufe murfin ɗakin baturi.
- Place the handset into the charging station. Ensure it is seated correctly and the charging indicator (if present) illuminates.
- Allow the handset to charge for at least 6-8 hours before initial use to ensure full battery capacity.
Hoto 1.2: Gaba view of the Gigaset handset securely placed in its charging station. The display shows "Wahlvorbereitung" (dialing preparation) and a phone number, indicating it's powered on and ready.

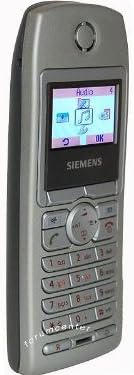

Hoto 1.3: Gefe view of the Gigaset handset, highlighting its ergonomic design and button layout. The display shows menu options like "Audio" and "OK".
Hoto 1.4: Baya view of the Gigaset handset, showing the smooth casing and the location of the battery compartment cover.
1.4 Yin Rijista Na'urar Hannu zuwa Tasha
This handset is designed to be compatible with various Gigaset base stations. The registration process may vary slightly depending on your specific base station model. Refer to your base station's manual for detailed instructions. Generally, the steps involve:
- Activate registration mode on your Gigaset base station (usually by pressing and holding a registration button).
- On the handset, navigate to the "Settings" or "Registration" menu.
- Select "Register Handset" and follow the on-screen prompts. You may need to enter a PIN (default is usually 0000).
- Once registered, the handset display will confirm successful connection to the base station.
2. Umarnin Aiki
2.1 Aiki na asali
- Yin Kira: Enter the phone number and press the green call key.
- Amsa Kira: Press the green call key when the phone rings.
- Ƙare Kira: Press the red end call key.
- Kiran Kyauta Ba Hannu: During a call, press the dedicated hands-free key (often backlit) to activate the speakerphone.
2.2 Phonebook (Directory)
The handset features a directory capable of storing up to 200 phone numbers and names.
- Ƙara shigarwa: Navigate to the "Directory" or "Phonebook" menu, select "New Entry," and enter the name and number.
- Calling from Directory: Open the directory, scroll to the desired entry, and press the green call key.
2.3 Display and Indicators
The handset features a 5-line illuminated graphic display. Key indicators include:
- Nuna Kwanan Wata/Lokaci: Always visible on the idle screen.
- CLIP Function (Call Display): Shows the caller's number or name (if stored in the directory) for incoming calls.
- Alamar baturi: Yana nuna matakin cajin baturi na yanzu.
- Alamar Ƙarfin Sigina: Displays the connection quality to the base station.
3. Kulawa
3.1 Tsaftacewa
- Wipe the handset and charging station with a soft, damp zane.
- Kada a yi amfani da masu tsabtace abrasive ko sauran ƙarfi.
- Tabbatar cewa babu ruwa da zai shiga cikin ramukan na'urar.
3.2 Kula da baturi
- Always use the original or approved replacement rechargeable batteries.
- Guji fallasa baturin zuwa matsanancin zafi.
- Idan ba za a yi amfani da wayar ba na tsawon lokaci, cire batirin.
4. Shirya matsala
| Matsala | Dalili mai yiwuwa | Magani |
|---|---|---|
| Wayar hannu ba ta kunnawa. | Ba a shigar da baturi daidai ko cire shi ba. | Check battery insertion. Place handset in charging station for several hours. |
| Babu sautin bugun kira. | Handset not registered to base station or out of range. | Ensure handset is registered. Move closer to the base station. Check base station power. |
| Rashin ingancin kira. | Interference or handset too far from base station. | Move away from other electronic devices. Move closer to the base station. |
| Ba za a iya yin ko karɓar kira ba. | Line issue or base station problem. | Check your telephone line connection. Restart the base station by unplugging and replugging its power. |
5. Ƙayyadaddun bayanai
- Alamar: Gigaset
- Samfura masu jituwa: Gigaset S2, S44, S200, S440, S445, S645, SX440, SX445
- Ikon Littafin Waya: Up to 200 entries (names and numbers)
- Nunawa: 5-line illuminated graphic display
- Siffofin: Backlit hands-free key, Date/Time display, CLIP function (Call Display)
- Mai ƙira: Gigaset
- ASIN: B0102FULTW
Note: Information regarding spare parts availability and guaranteed software updates is not provided. This product is currently not listed as discontinued by the manufacturer.
6. Garanti da Tallafawa
Specific warranty details for this Gigaset Handset and Charging Station are not provided within the available product information. For warranty claims, technical support, or service inquiries, please refer to the documentation included with your original purchase or visit the official Gigaset website don yankinku.
You may also contact your retailer for assistance.
