1. Gabatarwa
This manual provides instructions for the installation, operation, and maintenance of the Morris Products Flat Panel LED Small Flood Light, Model 71533. This energy-efficient LED floodlight features a low-profile design and is suitable for various indoor and outdoor applications.
2. Bayanin Tsaro
- GARGADI: Hadarin girgiza wutar lantarki. Cire haɗin wuta a fuse ko na'urar da'ira kafin shigarwa ko sabis.
- Dole ne ƙwararren ma'aikacin lantarki ya yi shigarwa daidai da duk lambobin lantarki na ƙasa da na gida.
- Tabbatar da wadata voltage is compatible with the fixture's requirements (120/208/240/277V).
- Do not handle live wires.
- Saka kayan kariya masu dacewa (PPE) yayin shigarwa.
- This fixture is designed for wet locations (IP65, NEMA 4X).
3. Abubuwan Kunshin
Verify that all components are present and undamaged upon opening the package. If any parts are missing or damaged, contact customer support.
- Flat Panel LED Small Flood Light (Model 71533)
- Sashi Dutsen

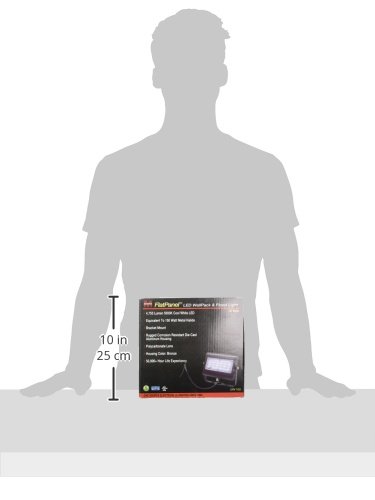

Figure 3.1: Product packaging showing the Morris Products Flat Panel LED Small Flood Light box.
4. Saita da Shigarwa
This flood light is designed for surface mount installation using the included bracket. Ensure the mounting surface is structurally sound to support the fixture's weight.
4.1 Haɓaka Ƙaddamarwa
- Gano wurin hawa mai dacewa.
- Position the bracket mount against the surface and mark the drilling points.
- Drill pilot holes as necessary.
- Secure the bracket mount to the surface using appropriate hardware (not included).
- Attach the flood light fixture to the bracket, ensuring it is securely fastened. The bracket allows for adjustment of the light's angle.
Hoto 4.1: Gaba view of the flood light showing the LED panel and bracket mount.
4.2 Wutar Lantarki
MUHIMMI: All electrical wiring should be performed by a licensed electrician. Ensure power is disconnected at the circuit breaker before proceeding.
- The fixture supports Quad Voltage (120/208/240/277V). Connect the appropriate wires from the power supply to the fixture's wires.
- Typically, the black wire is Line (L), the white wire is Neutral (N), and the green wire is Ground (G). Refer to local electrical codes for specific color conventions.
- Use UL-listed wire connectors to secure all connections.
- Ensure all connections are tight and properly insulated.
Hoto na 4.2: Baya view of the flood light, illustrating the wiring entry point and product label.
5. Umarnin Aiki
Once properly installed and wired, the Morris Products Flat Panel LED Small Flood Light operates by receiving power from the connected electrical circuit.
- Kunnawa/Kashewa: The light is controlled by the external switch or remote control connected to its circuit.
- Fitowar Haske: The fixture provides 6,179 lumens of 5000K Cool White light.
- Photo Control (Optional): A photo control unit can be installed remotely to enable automatic dusk-to-dawn operation. This feature is not integrated into the fixture itself.
6. Kulawa
The Morris Products Flat Panel LED Small Flood Light is designed for minimal maintenance due to its durable construction and long-life LED components.
- Tsaftacewa: Periodically clean the polycarbonate lens with a soft, damp cloth to ensure optimal light output. Avoid abrasive cleaners.
- Dubawa: Annually inspect the fixture and wiring for any signs of damage or wear. Ensure all mounting hardware remains secure.
- Juriya na Lalata: The bronze die-cast aluminum housing is corrosion-resistant, suitable for outdoor environments.
- LED Life: The LED light source has an expected life of 50,000+ hours, reducing the need for frequent bulb replacement.
7. Shirya matsala
| Matsala | Dalili mai yiwuwa | Magani |
|---|---|---|
| Haske baya kunnawa | No power supply; faulty wiring; tripped circuit breaker; defective fixture. | Check power supply at the source. Verify all wiring connections. Reset circuit breaker. If problem persists, consult a qualified electrician or contact customer support. |
| Haske flickers ko dims. | Unstable power supply; loose wiring connection; incompatible dimmer (if applicable). | Ensure stable power. Check and tighten all wiring connections. This fixture is not designed for dimming unless specified by an external controller. |
| Rage fitowar haske. | Dirty lens; extreme operating temperature. | Clean the lens. Ensure the fixture is operating within its specified temperature range (-40°F to 131°F). |
8. Ƙayyadaddun bayanai
| Lambar Samfura | 71533 |
| Alamar | Morris Products |
| Watatage | 50 Watts |
| Luminous Flux | 6,179 Lumen |
| Zazzabi Launi | 5000K (Cool Fari) |
| Voltage | 120/208/240/277V (Quad Voltage) |
| Kayan Gida | Die Cast Aluminum |
| Kayan Lens | Polycarbonate |
| Kammala Launi | Tagulla |
| Hasken Rayuwar LED | Awanni 50,000+ |
| Yanayin Aiki | -40°F zuwa 131°F (-40°C zuwa 55°C) |
| IP Rating | IP65 (NEMA 4X) Dust & Water Tight |
| Takaddun shaida | cULus Listed for Wet Locations, DLC Listed |
| Girma | Kimanin 2 x 6 x 6 inci |
| Nauyin Abu | 2 fam |
9. Garanti da Tallafawa
The Morris Products Flat Panel LED Small Flood Light (Model 71533) comes with a Garanti na Shekara 5 daga ranar sayan, rufe lahani a cikin kayan aiki da aikin aiki a ƙarƙashin amfani na yau da kullun.
For warranty claims, technical support, or any inquiries, please contact Morris Products customer service. Keep your purchase receipt as proof of purchase.
Bayanin hulda:
Please refer to the Morris Products official webshafin yanar gizo ko takardun siyan ku don cikakkun bayanai game da hulɗarku ta yanzu.
