Domo DO7280S Vacuum Cleaner User Manual

Gabatarwa

Thank you for choosing the Domo DO7280S Vacuum Cleaner. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your appliance. Please read it thoroughly before first use and keep it for future reference.

Image: The Domo DO7280S vacuum cleaner, fully assembled with its hose, telescopic tube, and floor brush, ready for use. The main unit is grey and orange.

Umarnin Tsaro

Koyaushe kiyaye ƙa'idodin aminci na asali lokacin amfani da na'urorin lantarki don rage haɗarin wuta, girgiza wutar lantarki, da rauni na mutum.

• Tabbatar da wutar lantarki voltage yayi daidai da alamar ƙima akan kayan aikin.
• Do not use the vacuum cleaner to pick up water or wet substances.
• Do not vacuum flammable or combustible materials, hot ashes, or sharp objects.
• Ka kiyaye gashi, sutura maras kyau, yatsu, da duk sassan jiki daga buɗaɗɗe da sassa masu motsi.
• Unplug the appliance from the power outlet before cleaning or performing maintenance.
• Kada ku yi aiki da injin tsabtace injin tare da lalacewa ko igiya ko filogi.
• Wannan kayan aikin don amfanin gida ne kawai.

Samfurin Ƙarsheview

The Domo DO7280S is a cylinder vacuum cleaner designed for efficient cleaning across various surfaces. It features a multi-filter system and electronic suction control.

Babban abubuwan:

• Main Unit (Motor, Dust Container, Filters)
• Motsi mai sassauci
• Telescopic Metal Tube
• Eco-brush Floor Nozzle
• Crevice Tool with Brush (Accessory)

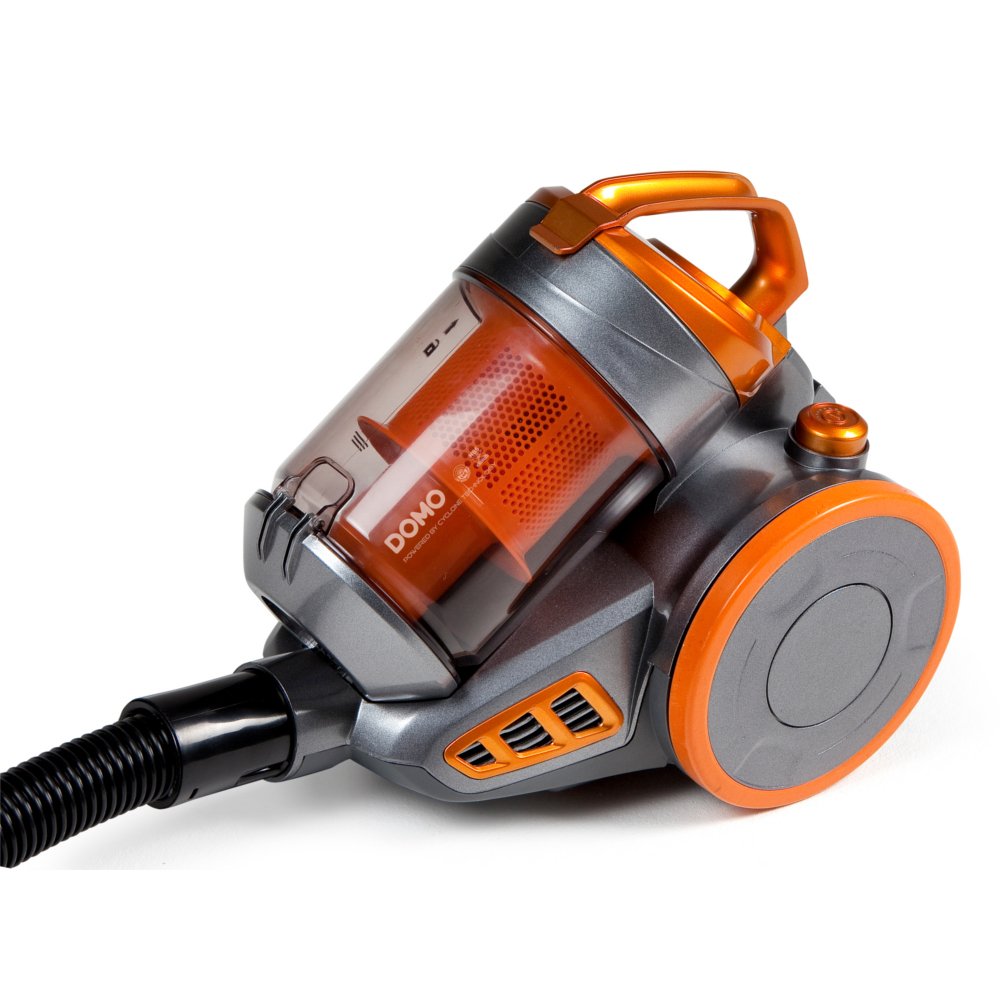

Hoto: Gefe view of the Domo DO7280S vacuum cleaner, highlighting the main unit, large wheels, and the connection point for the hose and telescopic tube.

Saita

1. Cire kaya: A hankali cire duk abubuwan da aka gyara daga marufi. Rike marufi don ajiya ko sufuri na gaba.
2. Attaching the Flexible Hose: Insert the end of the flexible hose into the suction inlet on the main unit until it clicks securely into place.
3. Haɗa Tube Telescopic: Connect the handle end of the flexible hose to the telescopic metal tube. Adjust the tube length by pressing the release button and sliding it to the desired height.
4. Connecting the Floor Nozzle: Attach the Eco-brush floor nozzle to the end of the telescopic tube. Ensure it is firmly connected.
5. Haɗin Wuta: Extend the power cord from the main unit and plug it into a suitable electrical outlet.

Aiki

1. Kunnawa/Kashewa: Danna maɓallin wuta dake kan babban naúrar don kunna ko kashe injin tsabtace injin.
2. Daidaita Ƙarfin tsotsa: Use the electronic suction control dial or buttons on the main unit to adjust the suction strength according to the surface being cleaned. Lower settings are suitable for delicate fabrics, while higher settings are for carpets and hard floors.
3. Using the Eco-brush: The Eco-brush is designed for efficient cleaning on various floor types. For optimal performance, move the nozzle slowly over the surface.
4. Amfani da Na'urorin haɗi: For specific cleaning tasks, detach the Eco-brush and attach the crevice tool with brush for corners, edges, and upholstery.
5. Dust Container Full Indicator: The vacuum cleaner is equipped with an indicator that signals when the dust container needs to be emptied. Observe this indicator for optimal performance.

Kulawa

Regular maintenance ensures the longevity and optimal performance of your Domo DO7280S vacuum cleaner. Always unplug the appliance before performing any maintenance.

Cire Kwantenan Kura:

1. Danna maɓallin sakin don cire kwandon ƙura daga babban naúrar.
2. Rike kwandon kura akan kwandon shara.
3. Open the bottom lid of the dust container to release the collected dirt.
4. Close the lid securely and reattach the dust container to the main unit.

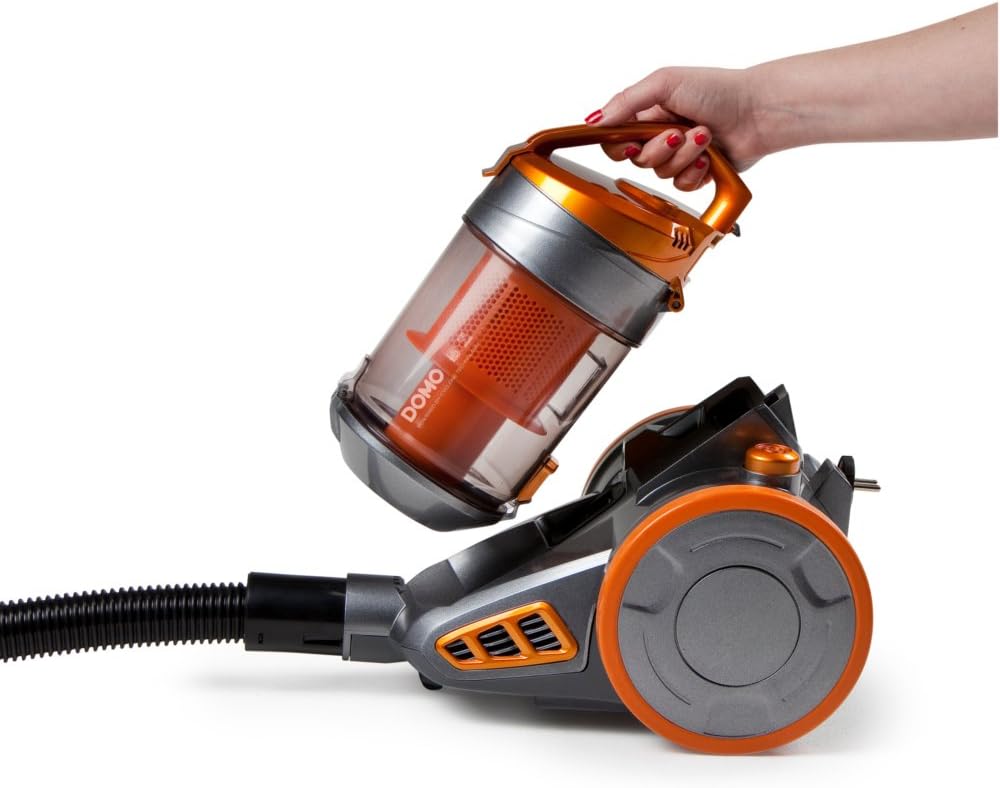

Image: A hand demonstrating the removal of the transparent orange dust container from the main body of the Domo DO7280S vacuum cleaner.

Image: A hand opening the bottom lid of the transparent orange dust container, revealing the internal filter system, ready for emptying.

Share Tace:

The Domo DO7280S features a multi-filter system. Regular cleaning of these filters is crucial for maintaining suction power.

• After emptying the dust container, remove the internal filters.
• Tap the filters gently over a bin to dislodge fine dust.
• If washable, rinse filters under cold running water. Ensure they are completely dry before reinserting.
• Do not use detergents or hot water on filters unless specified.
• Replace filters if they are damaged or excessively worn.

Shirya matsala

Ƙayyadaddun bayanai

Garanti da Taimako

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Domo customer service directly. Keep your proof of purchase for warranty claims.
