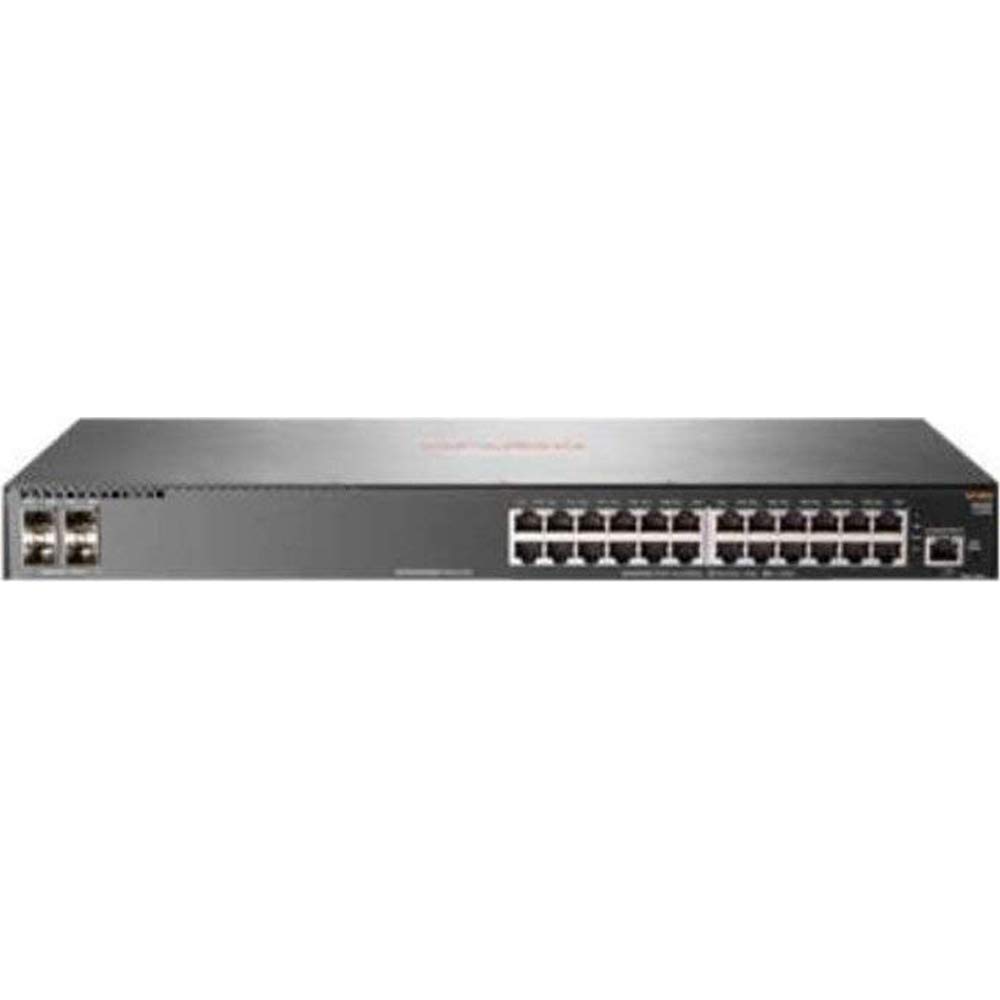

HP 2930F-24G 4SFP Switch (JL259A#ABA) User Manual

1. Gabatarwa

This manual provides comprehensive instructions for the installation, configuration, and operation of the HP 2930F-24G 4SFP Switch. This device is a high-performance network switch designed for reliable and secure network connectivity. It features 24 Gigabit Ethernet ports and 4 SFP uplink ports, supporting Layer 3 functionality for advanced network management.

2. Abubuwan Kunshin

Carefully unpack the box and verify that all items are present and undamaged. If any items are missing or damaged, contact your vendor immediately.

• 1 x HP 2930F-24G 4SFP Switch
• 1 x Carfin Wuta
• 1 x Screw Kit
• 4 x Kunnen Hawa
• 4 x Bumper Feet
• 1 x Kebul Tie

3. Saita

3.1. Shirye-shiryen Yanar Gizo

Ensure the installation site is clean, dry, and has adequate ventilation. Maintain proper temperature and humidity levels as specified in the environmental requirements. Ensure a stable power source is available.

3.2. Hawan Canjawa

The HP 2930F-24G 4SFP Switch supports both rack-mountable and desktop installations.

1. Shigar da Desktop: Attach the four bumper feet to the bottom of the switch. Place the switch on a flat, stable surface.
2. Rack-Mount Installation: Attach the mounting ears to the sides of the switch using the provided screws. Secure the switch into a standard 1U rack using appropriate rack screws (not included).

3.3. Haɗin Wuta

1. Connect the provided power cord to the power inlet on the rear panel of the switch.
2. Toshe dayan ƙarshen igiyar wutar lantarki cikin mashin wutar lantarki.
3. Verify that the power LED on the front panel illuminates, indicating the switch is receiving power.

3.4. Connecting Network Cables

1. Ethernet Ports: Connect standard RJ-45 Ethernet cables from your network devices (computers, servers, other switches) to the 24 Gigabit Ethernet ports on the front panel.
2. SFP Uplink Ports: Insert compatible SFP transceivers (not included) into the 4 SFP slots. Connect fiber optic or copper SFP cables to these transceivers for uplink connections to other network devices or the core network.

4. Umarnin Aiki

4.1. Ƙarfin Farko Kunna

Once power is connected, the switch will automatically begin its boot sequence. This process may take a few minutes. Observe the system status LEDs for indications of successful startup.

4.2. LED Manuniya

The front panel LEDs provide status information for the switch and its ports:

• LED Power: Indicates power status (On: Power OK, Off: No power).
• Tsarin LED: Indicates overall system health (Green: Normal, Amber: Warning, Red: Error).
• Port Link/Activity LEDs: Located next to each Ethernet and SFP port. (Green: Link established, Blinking Green: Activity, Off: No link).

4.3. Gudanar da Cibiyar sadarwa

The HP 2930F-24G 4SFP Switch can be managed via a Command Line Interface (CLI) through a console port (if available) or Telnet/SSH, and typically through a web-based graphical user interface (GUI). Refer to the comprehensive HP ArubaOS-Switch Management and Configuration Guide for detailed instructions on initial configuration, VLAN setup, Layer 3 routing, and other advanced features.

5. Kulawa

5.1. Tsaftacewa

Regularly clean the exterior of the switch with a soft, dry cloth. Do not use liquid or aerosol cleaners. Ensure ventilation openings are free from dust and obstructions to prevent overheating.

5.2. Sabuntawar Firmware

Periodically check the official HP support website for firmware updates. Keeping the switch firmware up-to-date ensures optimal performance, security, and access to new features. Follow the instructions provided with the firmware update package carefully.

5.3. La'akarin Muhalli

Ensure the switch operates within its specified temperature and humidity ranges. Avoid exposing the device to direct sunlight, excessive heat, or moisture.

6. Shirya matsala

Wannan sashe yana ba da mafita ga al'amuran gama-gari waɗanda zaku iya fuskanta.

• Babu Ƙarfi:
  • Check if the power cord is securely connected to both the switch and the power outlet.
  • Tabbatar da cewa tashar wutar lantarki tana aiki.
  • Ensure the power supply unit (internal) is not faulty.
• Babu hanyar haɗi akan Port:
  • Ensure the Ethernet or SFP cable is properly connected at both ends.
  • Tabbatar cewa na'urar da aka haɗa tana kunne kuma tana aiki yadda ya kamata.
  • Check the cable for damage. Try a different cable.
  • Confirm that the SFP transceiver is compatible and correctly seated (for SFP ports).
• Matsalolin Haɗin Intanet:
  • Tabbatar da tsarin adireshin IP akan na'urorin da aka haɗa da kuma maɓallin.
  • Check VLAN configurations if applicable.
  • Ensure no IP address conflicts exist on the network.
  • Sake kunna maɓallin da na'urorin da aka haɗa.

If problems persist, consult the detailed troubleshooting guides available on the official HP support website or contact HP technical support.

7. Ƙayyadaddun bayanai

8. Garanti da Tallafawa

For detailed warranty information, product registration, and technical support, please visit the official HP support website. You can find resources such as knowledge bases, FAQs, driver downloads, and contact information for customer service.

HP Support Website: www.hp.com/su tallafawa
