1. Gabatarwa
This manual provides essential information for the safe and efficient use of your HENDI Support Stand, Model 223666. This stand is specifically designed to accommodate up to five HENDI NANO GN 2/3 convection steam ovens, models 223291 and 223307. Please read these instructions thoroughly before installation and operation to ensure proper functionality and longevity of the product.
2. Umarnin Tsaro
Always adhere to the following safety guidelines to prevent injury or damage:
- Ensure the stand is placed on a stable, level, and non-slip surface capable of supporting the combined weight of the stand and the ovens.
- Do not exceed the maximum load capacity of the stand. It is designed for 5x NANO GN 2/3 ovens.
- Distribute weight evenly across the stand's shelves.
- Keep the area around the stand clear to prevent tripping hazards.
- Regularly inspect the stand for any signs of damage, loose connections, or instability. Do not use if damaged.
- Assembly should be performed by at least two people due to the weight and size of the components.
- Wear appropriate personal protective equipment (PPE) during assembly and handling, such as gloves.
3. Bayanin Samfur da Abubuwan da aka gyara
The HENDI Support Stand (Model 223666) is a robust, stainless steel structure designed for commercial kitchen environments. It features multiple levels to securely hold HENDI NANO GN 2/3 ovens.
Abubuwan Haɗe da:
- 1x HENDI Support Stand frame (Model 223666)
- Assembly hardware (screws, bolts, adjustable feet)
Note: HENDI NANO GN 2/3 ovens (models 223291 & 223307) are sold separately.
Hoto na 1: Gaba view of the HENDI Support Stand, Model 223666. This image shows the sturdy stainless steel construction and the multiple rack levels designed to hold GN 2/3 ovens.

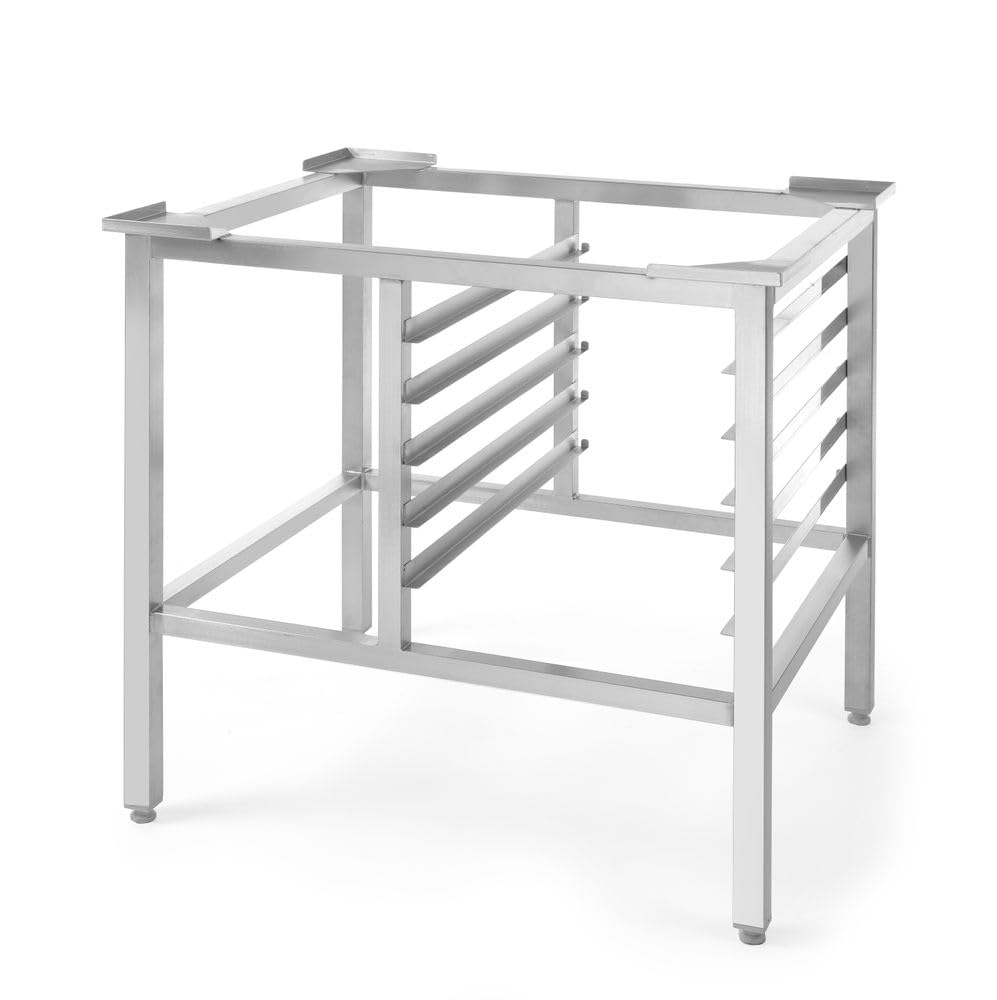

Hoto na 2: Angled view of the HENDI Support Stand, highlighting the robust frame and the integrated runners for GN 2/3 containers or ovens. The adjustable feet are visible at the base.
4. Saita da Shigarwa
Follow these steps for proper assembly and placement of your HENDI Support Stand:
- Cire kayan aiki: Carefully remove all parts from the packaging. Verify that all components listed in Section 3 are present and undamaged.
- Haɗa Frame: Connect the frame components using the provided hardware. Ensure all screws and bolts are tightened securely. Refer to the included assembly diagram (if provided with physical product) for specific connection points.
- Attach Adjustable Feet: Screw the adjustable feet into the bottom of each leg.
- Sanya Matsayi: Place the assembled stand in its desired location. Ensure the surface is level and stable.
- Level the Stand: Adjust the feet to ensure the stand is perfectly level and stable. This is crucial for the safe operation of the ovens placed on it.
- Place Ovens: Carefully lift and place the HENDI NANO GN 2/3 ovens onto the designated shelves of the support stand. Ensure they are seated securely and do not wobble.
5. Ka'idojin Amfani
The support stand is designed to provide a stable and organized platform for your HENDI NANO GN 2/3 ovens. Observe the following guidelines for optimal use:
- Always ensure ovens are properly positioned and stable on the stand before operation.
- When loading or unloading heavy items, maintain balance and avoid sudden movements that could destabilize the stand.
- Do not use the stand for purposes other than supporting compatible HENDI ovens or GN containers.
- Avoid leaning on the stand or applying excessive force to its structure.
6. Kulawa da Tsaftacewa
Regular maintenance and cleaning will extend the life of your HENDI Support Stand:
- Tsaftace Kullum: Shafe duk saman da tallaamp cloth and mild detergent. Rinse with clean water and dry thoroughly to prevent water spots and corrosion.
- Guji Abrasives: Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch the stainless steel finish.
- Dubawa na yau da kullun: A riƙa duba dukkan ƙusoshin da sukurori lokaci-lokaci domin tabbatar da cewa sun kasance matse. A sake matse su idan ya zama dole.
- Duba matakin: Verify that the stand remains level, especially after moving or heavy use. Adjust the feet as needed.
7. Shirya matsala
If you encounter issues with your support stand, refer to the following common problems and solutions:
| Matsala | Dalili mai yiwuwa | Magani |
|---|---|---|
| Tsayawa yana girgiza ko rashin tabbas. | Uneven floor surface; loose adjustable feet; loose frame connections. | Adjust the feet to level the stand. Ensure all feet are making firm contact with the floor. Check and tighten all frame bolts and screws. |
| Ovens do not fit correctly. | Incorrect oven model; improper placement. | Verify that your ovens are HENDI NANO GN 2/3 models 223291 or 223307. Ensure ovens are placed squarely on the support rails. |
| Visible damage or corrosion. | Impact damage; improper cleaning; exposure to harsh chemicals. | Discontinue use if structural integrity is compromised. Clean regularly with mild detergents. Avoid harsh chemicals. Contact HENDI support for replacement parts if necessary. |
8. Ƙayyadaddun bayanai
| Siffar | Daki-daki |
|---|---|
| Lambar Samfura | 223666 |
| Alamar | HENDI |
| Girma (L x W x H) | 700 x 580 x 700 mm |
| Nauyi | 64 kg |
| Daidaituwa | HENDI NANO GN 2/3 Ovens (Models 223291 & 223307) |
| Kayan abu | Bakin Karfe |
| Ƙasar Asalin | Poland |
9. Garanti Bayani
HENDI products are manufactured to high-quality standards. For specific warranty terms and conditions applicable to your HENDI Support Stand (Model 223666), please refer to the warranty card included with your purchase or visit the official HENDI website. Ajiye shaidar siyan ku don kowane da'awar garanti.
10. Tallafawa da Tuntuɓa
If you have any questions, require technical assistance, or need to order replacement parts, please contact HENDI customer service. You can find contact information on the official HENDI website ko ta wurin mai rarrabawa na gida.
Official HENDI Website: www.hendi.eu
Please have your product model number (223666) and purchase date ready when contacting support.
