1. Gabatarwa

This manual provides comprehensive instructions for the Weiser 9GED14550-005 SmartCode 5 Lever Electronic Lock with Z-Wave technology. This electronic lever lock offers keyless entry, enhanced security, and smart home integration capabilities. Please read this guide thoroughly before installation and operation to ensure proper function and longevity of your lock.

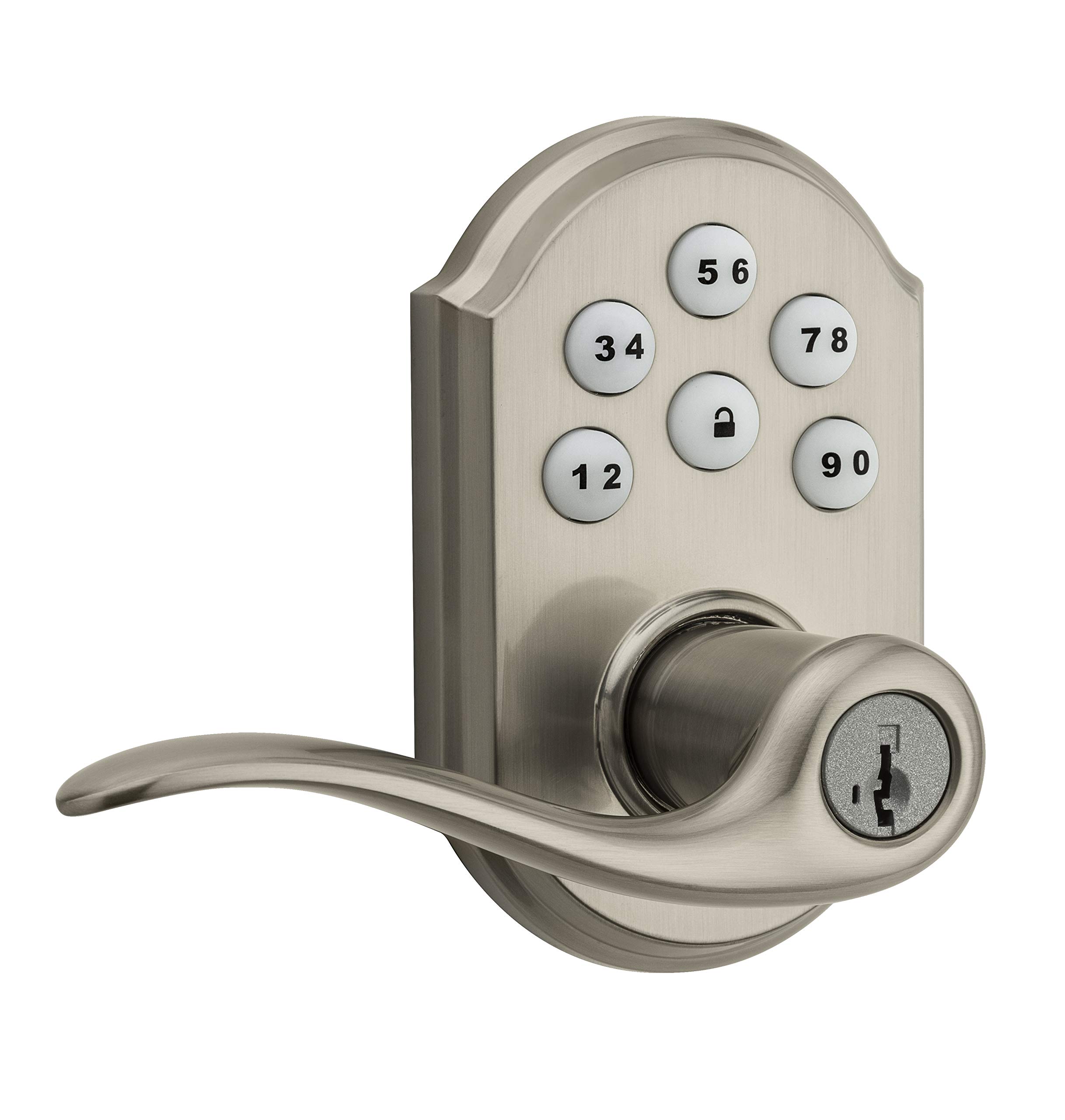

Image 1: Weiser SmartCode 5 Lever Electronic Lock in Satin Nickel finish. This image displays the complete lock assembly, including the exterior keypad and interior lever components.

2. Kayan Samfura

• Shigar Mara Maɓalli: Backlit keypad for convenient code access.
• Z-Wave 500 Home Connect Technology: Enables wireless communication with other smart home devices.
• Samun Nisa: Remotely check lock status, lock/unlock, and receive notifications via web-enabled devices.
• Daidaituwar Gidan Smart: Works with Z-Wave certified controllers, including Samsung SmartThings and Wink for Amazon Alexa integration.
• SmartKey Re-key Technology: Allows re-keying the lock to a new key in seconds.
• Kulle taɓawa ɗaya: Motorized locking with a single touch.
• Kulle ta atomatik: Customizable automatic re-locking after 30 seconds for added security.
• Lambobin mai amfani: Supports up to 30 unique user access codes and 1 master code.
• Dorewa: ANSI/BHMA Grade 2 certified.
• Sauƙin Shigarwa: Designed to fit most standard residential door preparations (1-3/8" to 1-3/4" door thickness, adjustable 2-3/8" or 2-3/4" backset, 2-1/8" cross bore).
• Tsaro: Full 128-bit encryption.

3. Abubuwan Kunshin

Before beginning installation, verify that all components are present. The package typically includes:

• Majalisar faifan maɓalli na waje
• Majalisar Lever na cikin gida
• Latch
• Farantar yajin aiki
• Hawan Hardware
• Installation Guide / Drilling Template

Note: 4 AA alkaline batteries are required and sold separately.

4. Jagoran Girkawa

Installation of the SmartCode 5 Lever lock is designed to be straightforward, typically requiring only a Phillips head screwdriver. Ensure your door meets the following specifications:

• Kaurin Ƙofa: 1-3/8" to 1-3/4" (35 mm - 44 mm)
• Cross Bore: 2-1/8" (54 mm)
• Latch Backset: Adjustable 2-3/8" or 2-3/4" (60 mm or 70 mm)
• Miƙa Ƙofa: Universal (can be installed on left or right-handed doors)

Matakan Shigarwa:

1. Shirya Ƙofar: If necessary, use the provided template to drill holes. Ensure the door is properly aligned and the existing latch bore is clear.
2. Sanya Latch: Insert the latch into the door edge and secure it with screws. Ensure the latch bolt faces the door frame.
3. Install Exterior Keypad Assembly: Route the cable through the cross bore and position the exterior keypad assembly on the door.
4. Sanya Majalisar Cikin Gida: Connect the cable from the exterior assembly to the interior assembly. Secure the interior assembly to the door using the provided mounting screws.
5. Shigar Levers: Attach the interior and exterior levers according to the instructions, ensuring they operate smoothly.
6. Shigar da Batura: Insert 4 new AA alkaline batteries into the battery pack.
7. Yi Tsarin Hannun Ƙofa: This step is crucial for the lock to learn the orientation of your door. Follow the specific instructions in your physical installation guide to ensure correct operation.

5. Initial Setup & Programming

After installation, the lock requires initial setup, including setting the Master Code and User Codes.

Lambar Jagora:

The Master Code is a critical security feature. It is used to add, delete, and modify User Codes and other lock settings. It does not unlock the door. It is highly recommended to create a Master Code immediately after installation.

Lambobin mai amfani:

The lock supports up to 30 unique 4-8 digit User Codes for family members, guests, or service personnel.

Programming Steps (General):

1. Saita Babban Code: Refer to your specific programming guide for the sequence to establish your Master Code.
2. Ƙara lambar mai amfani:
   • Enter your Master Code.
   • Press the Program button (usually located on the interior assembly).
   • Shigar da sabuwar Lambar Mai Amfani mai lambobi 4-8.
   • Press the Lock button.
   • Test the new User Code to ensure it unlocks the door.
3. Goge lambar mai amfani: Follow the specific instructions in your programming guide, typically involving the Master Code and the User Code to be deleted.

6. Z-Wave Integration

The SmartCode 5 Lever lock features Z-Wave 500 Home Connect Technology, allowing it to integrate with compatible smart home systems.

Enrollment (Adding to Z-Wave Network):

To add the lock to your Z-Wave network, initiate the 'Add Device' or 'Inclusion' process on your Z-Wave controller/hub. Then, follow the lock's specific instructions to put it into inclusion mode (often by pressing the Program button once). The lock will communicate with the controller to join the network.

Exclusion (Removing from Z-Wave Network):

To remove the lock from a Z-Wave network, initiate the 'Remove Device' or 'Exclusion' process on your Z-Wave controller/hub. Then, follow the lock's specific instructions to put it into exclusion mode.

Functionality with Z-Wave:

• Remotely lock and unlock the door.
• Check the current lock status (locked/unlocked).
• Receive notifications for lock activity (e.g., door locked/unlocked, low battery).

The lock is compatible with Z-Wave certified controllers, including those that support Amazon Alexa integration via Samsung SmartThings and Wink.

7. Aiki

Operating your SmartCode 5 Lever lock is simple and intuitive.

Kulle Ƙofar:

• From Exterior: Press the Lock button on the keypad. The motorized deadbolt will extend.
• From Interior: Rotate the interior thumb turn to the locked position.

Buɗe Ƙofar:

• From Exterior: Enter a valid 4-8 digit User Code on the keypad. The motorized deadbolt will retract.
• From Interior: Rotate the interior thumb turn to the unlocked position.

Kulle ta atomatik:

If enabled, the lock will automatically re-lock approximately 30 seconds after being unlocked from the exterior. This feature provides peace of mind, ensuring your door is always secured.

8. Kulawa

Proper maintenance ensures the longevity and reliable operation of your electronic lock.

Madadin Baturi:

The lock requires 4 AA alkaline batteries. When the batteries are low, the lock will typically provide an audible and/or visual low battery warning. Replace all four batteries simultaneously with new, high-quality alkaline batteries. Avoid using rechargeable batteries, as they may not provide sufficient voltage.

Tsaftacewa:

Clean the keypad and lock body with a soft, damp cloth. Avoid using abrasive cleaners, solvents, or chemical sprays, as these can damage the finish and electronic components.

Sake maɓalli na SmartKey:

If you need to re-key your lock to a new key, follow the specific instructions provided with your SmartKey tool. This process allows you to re-key the lock yourself in seconds without removing it from the door.

9. Shirya matsala

If you encounter issues with your lock, refer to the following common troubleshooting steps:

• Kulle Ba Amsa ba: Check that the batteries are correctly installed and fully charged. Replace batteries if necessary. Ensure all cables are securely connected inside the interior assembly.
• Lambobin Baya Aiki: Verify that the Master Code is set. Ensure User Codes are entered correctly and are active. Try deleting and re-adding the User Code.
• Matsalolin Haɗin Z-Wave: Ensure your Z-Wave controller/hub is powered on and within range of the lock. Try performing a Z-Wave exclusion and then re-inclusion process.
• Grinding Noise / Latch Not Extending: This can indicate door misalignment or an obstruction. Check that the door frame and strike plate are properly aligned with the latch. Ensure the latch operates freely without resistance.
• Faifan Maɓalli Ba Ya Haske: Check battery power. If batteries are new, ensure they are inserted with correct polarity.

For more detailed troubleshooting, consult the full product manual or contact Weiser customer support.

10. Ƙayyadaddun bayanai

11. Garanti & Tallafi

Weiser stands behind the quality of its products.

Bayanin Garanti:

• Mechanical & Finish Warranty: Rayuwa
• Garantin Lantarki: Shekara daya

These warranties apply to the original residential user of the product. Please retain your proof of purchase for warranty claims.

Taimakon Abokin Ciniki:

For detailed warranty terms, technical assistance, or further support, please visit the official Weiser website or contact their customer service department. Contact information can typically be found on the Weiser website ko a cikin kayan marufi.
