Quadra-Fire Combustion OEM Blower Motor SRV7000-588M Instruction Manual

1. Gabatarwa

This manual provides essential instructions for the installation, operation, and maintenance of the Quadra-Fire Combustion OEM Blower Motor, model SRV7000-588M. This component is a direct replacement part designed for specific Quadra-Fire and Heatilator pellet stove models.

The SRV7000-588M blower motor is crucial for the proper combustion process in your pellet stove, ensuring efficient and safe operation. It is an OEM (Original Equipment Manufacturer) part, guaranteeing compatibility and performance.

Abubuwan da aka haɗa:

• Combustion Blower Motor (SRV7000-588M)
• Round Gasket (SRV7000-714)

Ba a Hada da: Please note that this package does not include the blower housing or the housing gasket (SRV7000-332). These components must be retained from your existing setup or purchased separately if damaged.

Compatible Pellet Stove Models:

• Quadra-Fire Pellet Stoves: EDGE60, EDGE60-CE, MTV-AE-CE-CSB, MTV-AE-CE-CWL, MTV-AE-CE-MBK, MTV-AE-CE-PMH, MTVERNINSAE-CSB, MTVERNINSAE-CWL, MTVERNINSAE-MBK, MTVERNINSAE-PMH, MTVERNON-AE-CSB, MTVERNON-AE-CWL, MTVERNON-AE-MBK, MTVERNON-AE-PBE, MTVERNON-AE-PBK, MTVERNON-AE-PDB, MTVERNON-AE-PFT, MTVERNON-AE-PMH
• Heatilator Pellet Stoves: PT60 Pointe

Always refer to your pellet stove's owner's manual to confirm part number compatibility before installation.

2. Saita & Shigarwa

Gargadin Tsaro: Before beginning any installation, ensure your pellet stove is completely cool and disconnected from all power sources. Failure to do so can result in electric shock or burns. If you are unsure about any step, consult a qualified technician.

2.1 Shiri

1. Disconnect the pellet stove from the main power supply.
2. Allow the stove to cool completely.
3. Access the existing combustion blower motor. For insert models (e.g., Mt. Vernon AE), this may require carefully moving the stove approximately 6-8 inches to reach the rear components.

2.2 Removing the Old Blower Motor

1. Carefully disconnect the wiring from the old blower motor. Note the orientation for re-connection.
2. Unscrew and remove the bolts or nuts securing the old blower motor to the stove's housing.
3. Gently remove the old blower motor and its gasket. Inspect the area for any debris or damage.

2.3 Installing the New Blower Motor (SRV7000-588M)

Hoto 1: Gede view of the Quadra-Fire SRV7000-588M combustion blower motor, showing the fan assembly and electrical connections.

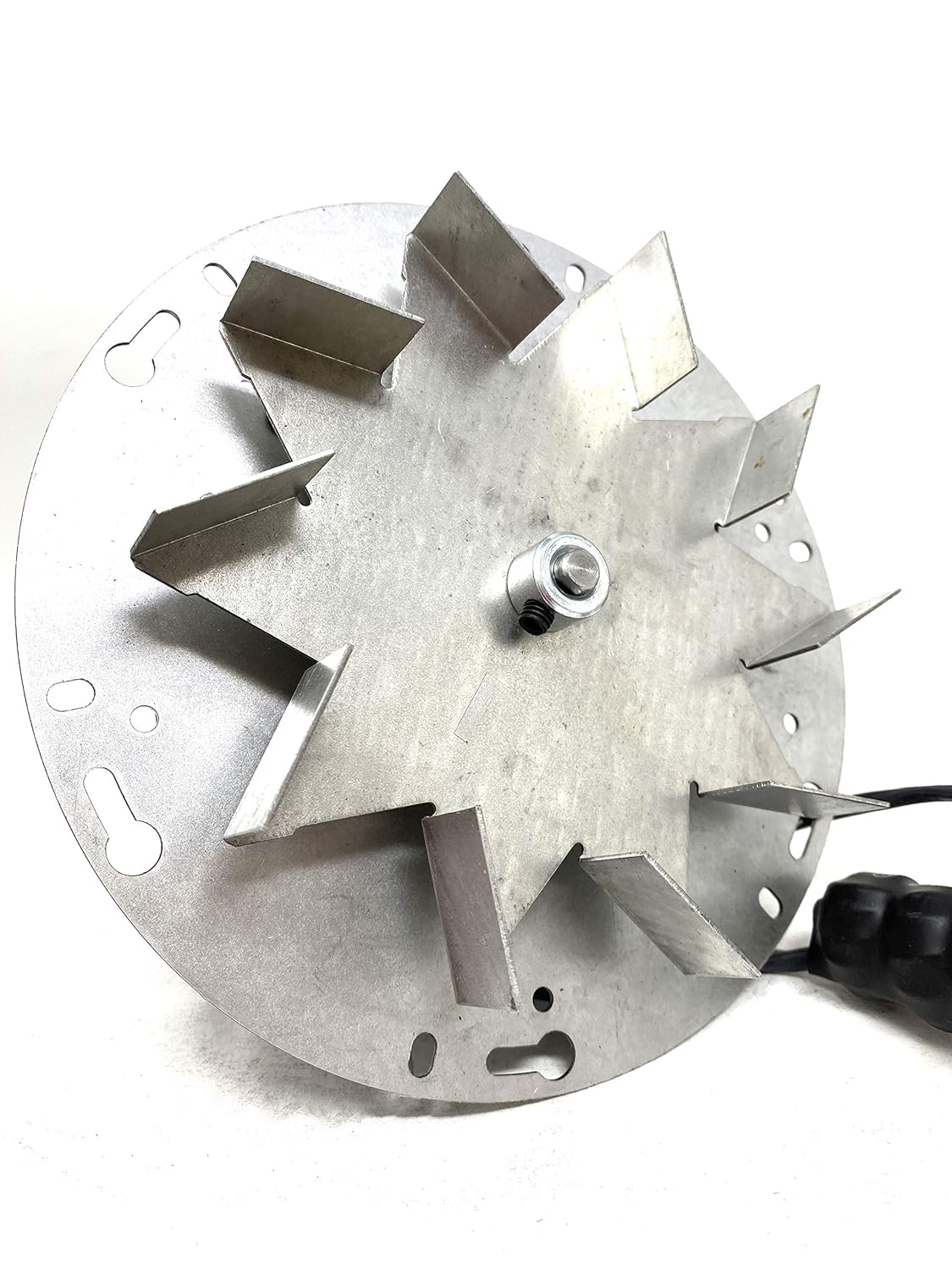

Hoto 2: Gaba view of the Quadra-Fire SRV7000-588M combustion blower motor fan, highlighting the impeller blades and mounting plate.

1. Place the new round gasket (SRV7000-714) onto the mounting plate of the new blower motor. Ensure it is seated correctly to prevent leaks.
2. Align the new blower motor with the mounting holes on the stove's housing.
3. Bolt Pattern Note: The SRV7000-588M motor is designed with a bolt pattern for newer style blowers. However, it also accommodates older style housings. To access the bolt pattern for older housings, you may need to remove the 6 screws located around the mounting plate. Ensure the 3 closer spaced holes on the fan base plate are oriented towards the top for proper alignment with the screw threads.
4. Secure the blower motor using the original bolts/nuts. Tighten them evenly to ensure a snug fit without overtightening.
5. Mounting Tip: The screw threads may tend to slide away from the motor base plate during tightening. A small amount of thread locker can be applied to the screw threads to help prevent them from spinning loose or pushing backwards into the housing while tightening the nuts.
6. Reconnect the electrical wiring to the new blower motor. Ensure connections are secure and correctly oriented.

2.4 Duban Shigarwa Bayan Shigarwa

1. Double-check all connections and mounting bolts for security.
2. Ensure no tools or loose items are left inside the stove or near moving parts.
3. Carefully return the stove to its original position if it was moved.
4. Reconnect the stove to the power supply.
5. Perform a test run according to your pellet stove's owner's manual to verify proper operation and check for any unusual noises or smells.

3. Aiki

The Quadra-Fire SRV7000-588M Combustion Blower Motor operates automatically as part of your pellet stove's combustion system. Its function is to draw air through the burn pot, facilitating the combustion of pellets and expelling exhaust gases.

Once installed, the blower motor's operation is controlled by the pellet stove's internal thermostat and control board. It will activate and deactivate as needed to maintain the desired heat output and ensure efficient burning.

For detailed instructions on how to operate your specific pellet stove model, including starting, adjusting heat settings, and shutting down, please refer to the owner's manual provided with your Quadra-Fire or Heatilator pellet stove.

4. Kulawa

Regular maintenance of your combustion blower motor helps ensure its longevity and the efficient operation of your pellet stove. Always ensure the stove is cool and disconnected from power before performing any maintenance.

4.1 Binciken yau da kullun

• Duban gani: Periodically inspect the blower motor and fan assembly for any visible signs of wear, damage, or accumulation of ash and debris.
• Mutuncin Gasket: Check the round gasket (SRV7000-714) for cracks, hardening, or signs of leakage. A compromised gasket can lead to vacuum errors or carbon monoxide leaks. Replace if necessary.
• Waya: Ensure all electrical connections are secure and that the wiring insulation is intact.

4.2 Tsaftacewa

• Fan Blades: Over time, ash and creosote can build up on the fan blades, reducing efficiency and potentially causing imbalance or noise. Carefully clean the fan blades using a stiff brush or a vacuum cleaner with a narrow attachment.
• Motor Exterior: Wipe down the exterior of the motor to remove any dust or grime.

Tsanaki: Do not use water or liquid cleaners directly on the motor or electrical components. Ensure the motor is completely dry before reconnecting power.

5. Shirya matsala

If you experience issues with your pellet stove's combustion system after installing the SRV7000-588M blower motor, refer to the following common troubleshooting steps. Always disconnect power before inspecting components.

5.1 Blower Motor Not Operating

• Tushen wutan lantarki: Verify that the pellet stove is connected to a working power outlet and that the circuit breaker has not tripped.
• Haɗin Waya: Check all electrical connections to the blower motor. Ensure they are secure and correctly seated.
• Stove Controls: Confirm that the pellet stove's control panel is set to an operating mode that should activate the combustion blower. Refer to your stove's manual.
• Safety Switches: Some stoves have safety switches (e.g., vacuum switches, high-limit switches) that prevent the blower from operating if conditions are not met. Consult your stove's manual for these components.

5.2 Excessive Noise from Blower

• Hanyoyi: Disconnect power and inspect the fan blades and housing for any foreign objects (e.g., ash, debris, small tools) that might be causing interference.
• Hawan sako-sako: Ensure the blower motor is securely mounted and all bolts are tightened evenly. Loose mounting can cause vibrations and noise.
• Bearing Wear: If the noise persists and is a grinding or squealing sound, it may indicate wear in the motor bearings. While this OEM motor is designed for durability, bearings can eventually wear out. Replacement of the motor may be necessary.
• Fan Imbalance: Uneven ash buildup on fan blades can cause imbalance and noise. Clean the fan blades thoroughly.

5.3 Reduced Combustion Performance

• Exhaust Path Blockage: Check the stove's exhaust venting system for any blockages or restrictions that could impede airflow.
• Gasket Leak: A leaking gasket (SRV7000-714) can cause a loss of vacuum, leading to inefficient combustion. Inspect and replace the gasket if necessary.
• Fan Cleanliness: Ensure the fan blades are clean and free of ash buildup, which can reduce airflow.

If troubleshooting steps do not resolve the issue, contact Quadra-Fire customer support or an authorized service technician.

6. Ƙayyadaddun bayanai

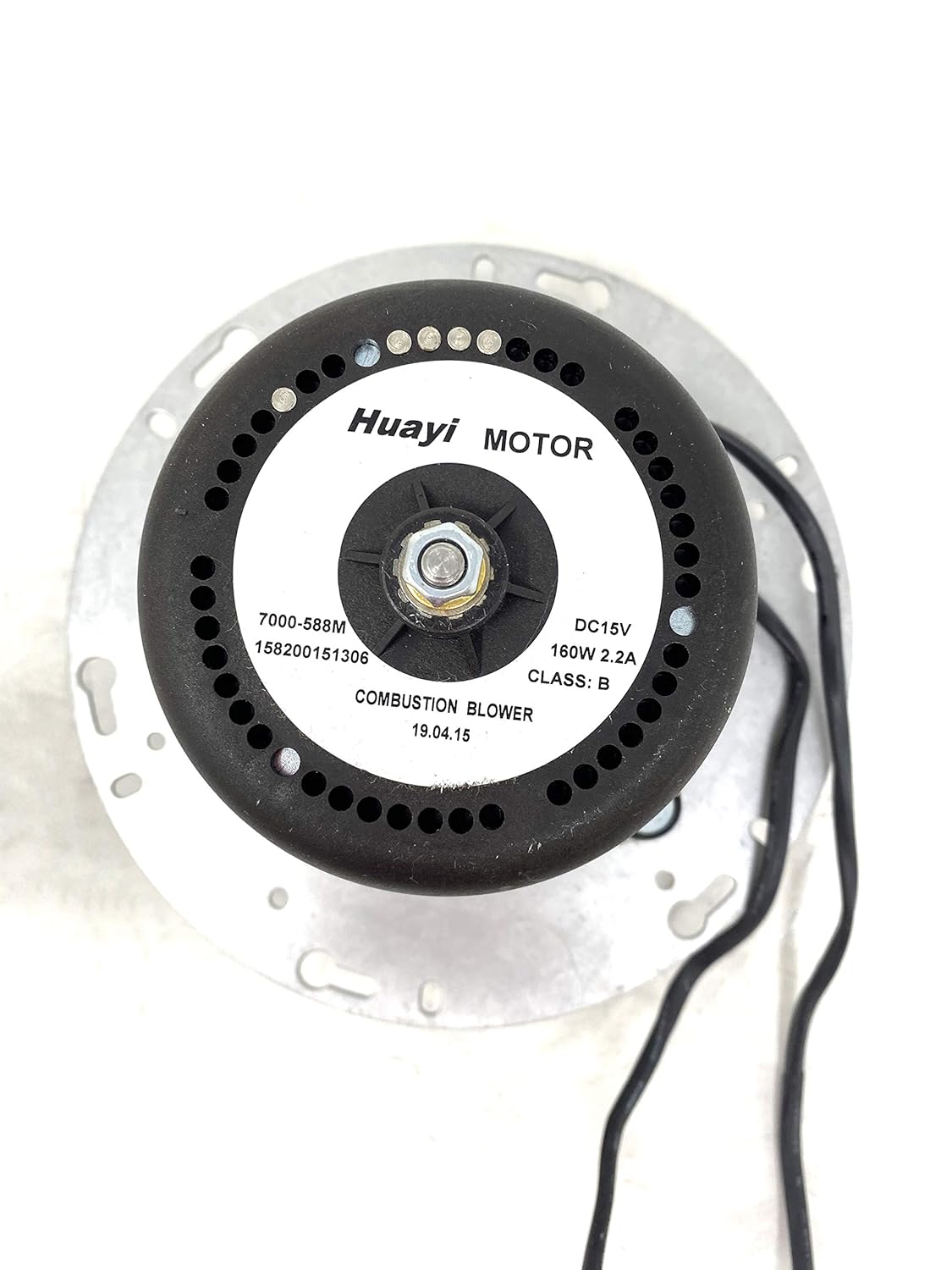

Hoto 3: Na baya view of the Quadra-Fire SRV7000-588M combustion blower motor, showing the manufacturer's label with technical specifications.

7. Garanti Bayani

The Quadra-Fire Combustion OEM Blower Motor SRV7000-588M is covered by the manufacturer's standard warranty. Warranty terms and conditions typically cover defects in materials and workmanship under normal use.

To understand the specific duration and coverage of your warranty, please refer to the original purchase documentation, the packaging, or the official Quadra-Fire website. You may also contact Quadra-Fire customer support directly for detailed warranty information.

Ajiye shaidar siyan ku (rasit ko daftari) kamar yadda ake buƙata don kowane da'awar garanti.

8. Tallafin Abokin Ciniki

For technical assistance, questions regarding installation, troubleshooting, or to inquire about replacement parts, please contact Quadra-Fire customer support or an authorized service technician.

Mai ƙira: HHT (Hearth & Home Technologies)

Please have your product model number (SRV7000-588M) and your pellet stove's model information readily available when contacting support to ensure efficient service.

You can typically find contact information for Quadra-Fire on their official website or in your pellet stove's owner's manual.
