1. Gabatarwa
This manual provides instructions for the proper setup, operation, and maintenance of your IPD IPH-160 Monaural Wired Headset. The IPH-160 is designed for clear communication in various environments, featuring a noise-cancelling microphone and a 3.5mm jack for broad compatibility.
2. Abubuwan Kunshin
Da fatan za a tabbatar cewa duk abubuwa suna nan a cikin kunshin ku:
- IPD IPH-160 Monaural Headset
- Quick Disconnect (QD) to 3.5mm Jack Cable (4-pole)
- Ear Cushions (pre-installed or spare)

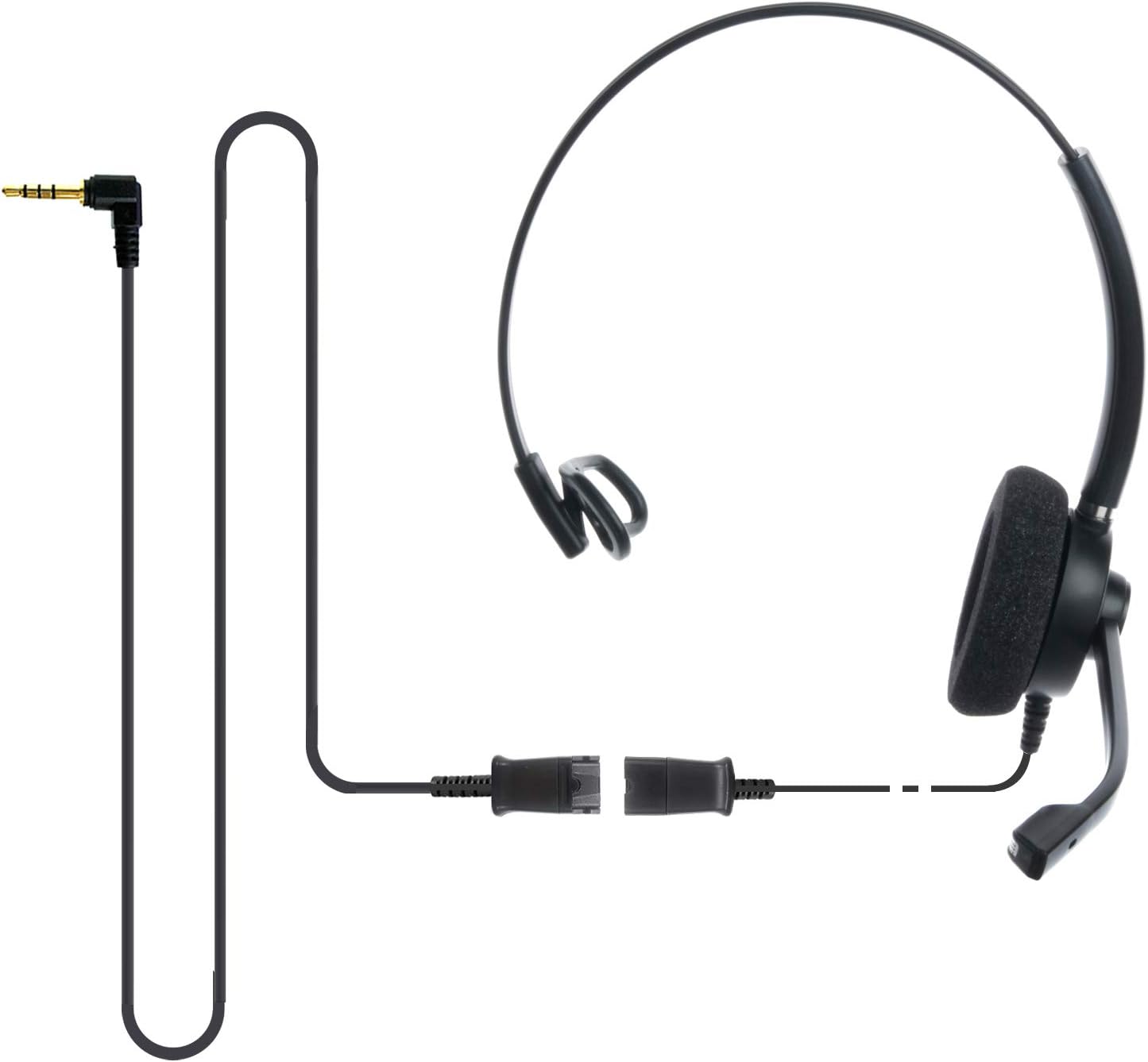

Image: The IPD IPH-160 headset with its detachable Quick Disconnect cable and 3.5mm jack connector.
3. Saita
3.1 Haɗa na'urar kai
- Connect the Quick Disconnect (QD) cable to the headset. Ensure a secure connection.
- Insert the 3.5mm jack of the cable into the corresponding port on your device (Android cell phone, laptop, tablet, Apple MacBook, or other smart device).
Hoto: Kusanci view of the 3.5mm jack connector, illustrating its connection to a mobile device and laptop.
3.2 Dacewar Na'urar
The 3.5mm jack (4 poles) is compatible with a wide range of devices including:
- Android cell phones (e.g., Samsung, Huawei, HTC, ZTE)
- Kwamfutar tafi da gidanka
- Allunan
- Apple MacBooks with a single 3.5mm headset port
Lura:
- iPhone 7/7S and later models may require an additional Lightning to 3.5mm adapter (not included).
- If your specific phone model is not listed or you encounter compatibility issues, please contact IPD support for assistance.
Image: The IPD headset shown with various connection options for desk phones, PCs/softphones, and mobile phones, highlighting the versatility of Quick Disconnect cables.
4. Aiki da Lasifikan kai
4.1 Sawa da Daidaitawa
The IPH-160 headset is designed for all-day comfort. Adjust the headband for a secure yet comfortable fit. The microphone boom is flexible; position it approximately 1-2 inches from your mouth for optimal voice pickup.
4.2 Hayaniyar Soke Makirufo
The headset features a passive noise-cancelling microphone to reduce background noise, ensuring clearer conversations. Proper microphone positioning is crucial for effective noise cancellation.
Image: A user wearing the headset, demonstrating the microphone's position and illustrating the effect of noise cancellation on audio waveforms.
4.3 Acoustic Shock Protection (ASP)
The headset incorporates an Acoustic Shock Protection (ASP) circuit on the speaker. This feature protects your hearing from sudden, unwanted loud noises by cutting sounds over 105dB and maintaining levels below 105dB.
4.4 Wideband Audio
The HD Wideband speaker delivers clear sound, enhancing the quality of your calls and audio monitoring.
Image: A close-up of the headset's ear cushion, visually representing the distinction between acoustic noise and clear sound for high-quality voice communication.
5. Kulawa
5.1 Tsaftacewa
To maintain hygiene and performance, regularly clean the ear cushions and other surfaces of the headset with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
5.2 Adana
Idan ba a amfani da shi, a ajiye belun kunne a wuri mai tsabta da bushewa, nesa da hasken rana kai tsaye da kuma yanayin zafi mai tsanani. A guji haɗa kebul ɗin don hana lalacewa.
6. Shirya matsala
6.1 Babu Sauti ko Ƙananan Ƙara
- Ensure the 3.5mm jack is fully inserted into your device.
- Duba saitunan ƙarar na'urarka.
- Verify that the headset is selected as the audio output device in your computer's sound settings.
- Confirm the Quick Disconnect (QD) cable is securely connected to the headset.
6.2 Makirifo Ba Ya Aiki
- Tabbatar cewa an sanya muryar makirufo daidai kusa da bakinka.
- Check your device's microphone input settings and ensure the headset is selected as the input device.
- Test the headset with another compatible device to rule out a device-specific issue.
6.3 Abubuwan da suka dace
If you experience compatibility problems with your device, especially if it's not explicitly listed as compatible, please contact IPD customer support for guidance.
7. Ƙayyadaddun bayanai
| Siffar | Ƙayyadaddun bayanai |
|---|---|
| Sunan Samfura | IPH-160-35 |
| Fasahar Haɗuwa | Waya |
| Kayan kunne Jack | 3.5 mm Jack (4-pole) |
| Sarrafa amo | Soke Noise mai wucewa |
| Amsa Mitar | 10 kHz |
| Hankali | 58db ku |
| Impedance | 150 ohms |
| Nauyin Abu | 198 Grams (7 oz) |
| Kayan abu | Filastik |
| Wurin Kunne | Sama Da Kunne |
| Siffa ta Musamman | Sokewar surutu |
| Abubuwan da aka haɗa | Kushin Kunnuwa |
8. Garanti Bayani
The IPD IPH-160 Headset comes with a Garanti na shekaru 3 daga ranar sayayya. Wannan garanti ya ƙunshi lahani na masana'antu a ƙarƙashin amfani na yau da kullun. Da fatan za a riƙe shaidar siyan ku don da'awar garanti.
9. Taimako
For technical assistance, warranty claims, or any questions regarding your IPD IPH-160 Headset, please contact IPD customer support. You can find contact information on the official IPD website ko ta hanyar dillalin ku.
Ziyarci IPD Store don ƙarin bayani da samfurori.
