1. Gabatarwa
This manual provides detailed instructions for the installation, operation, and maintenance of your SEBSON Outdoor Motion Detector (Model: IR_OUT_BA). Please read this manual thoroughly before installation and use to ensure safe and correct operation. Keep this manual for future reference.
Hoto 1.1: Gaba view of the SEBSON Outdoor Motion Detector.
2. Umarnin Tsaro
Koyaushe kiyaye matakan tsaro masu zuwa don hana rauni ko lalacewa ga na'urar:
- Tsaron Wutar Lantarki: Installation and maintenance should only be performed by a qualified electrician. Always disconnect the main power supply before any installation, wiring, or maintenance work.
- Voltage: Tabbatar da aiki voltage of 230V AC matches your electrical supply.
- Ƙididdigar IP44: This device is rated IP44, meaning it is protected against solid objects larger than 1mm and splashing water from any direction. It is suitable for outdoor use but must not be submerged in water.
- hawa: Mount the device securely on a stable surface. Do not install near flammable materials or heat sources.
- Yara: A ajiye kayan marufi da ƙananan sassa nesa da yara.
3. Abubuwan Kunshin
Kunshin ya hada da:
- 1x SEBSON Outdoor Motion Detector (Model: IR_OUT_BA)
4. Samfurin Ya Ƙareview da Features
The SEBSON Outdoor Motion Detector is designed for reliable motion detection in outdoor environments. Key features include:
- Tsawon Ganewa: Up to 12 meters with a 180° infrared sensor.
- Adjustable Sensor Head: Can be swiveled vertically by 300° for precise area coverage.
- Adjustable Illumination Duration (TIME): From 10 seconds to 7 minutes.
- Adjustable Ambient Brightness (LUX): Operates between 3 and 2000 lux, allowing for day and night operation settings.
- LED mai jituwa: Yana goyan bayan LED lamps and other energy-saving bulbs up to 300W, and incandescent bulbs up to 1200W.
- Zane Mai Dorewa: IP44 rated for outdoor use, anthracite color, made of plastic.
Hoto na 4.1: Ƙarsheview of key product features: 12m/180° detection, up to 300W LED, IP44 rating, 10 sec - 7 min duration, 3-2000 LUX sensitivity, 230V operation.
Image 4.2: Dimensions of the motion detector (96mm x 86mm x 60mm) and its 300° vertical swiveling capability.
5. Saita da Shigarwa
Bi waɗannan matakan don shigarwa da kyau:
- Shirya don Shigarwa: Before starting, ensure the main power supply to the installation area is switched off at the circuit breaker.
- Zaɓi Wuri Mai hawa: Select a suitable outdoor wall for surface mounting. Consider the desired detection area and avoid locations directly exposed to strong sunlight, heat sources (e.g., vents), or rapidly changing temperatures, which can cause false triggers. The recommended mounting height is 1.8m - 2.5m.
- Hawan Tushen:
- Carefully open the motion detector housing.
- Use the base of the detector as a template to mark the drilling points on the wall.
- Drill holes at the marked points. Insert appropriate wall plugs if necessary.
- Secure the detector's base firmly to the wall using screws.
- Haɗin Waya: Connect the electrical wires to the terminal block inside the detector. This device requires a 3-wire connection.
- Connect the Live wire (L) from the power supply.
- Connect the Neutral wire (N) from the power supply.
- Connect the Switched Live wire (L') to your light fixture.
Hoto 5.1: Example wiring diagram. Ensure correct Live (L), Neutral (N), and Switched Live (L') connections.
- Rufe Gidaje: Carefully close the detector housing, ensuring no wires are pinched.
- Dawo da Power: Once installation is complete and all connections are secure, restore the main power supply.
Image 5.2: The motion detector installed on an exterior wall, demonstrating typical placement.
6. Umarnin Aiki da Daidaitawa
The motion detector features two adjustable dials for customizing its operation:
Hoto 6.1: Rufewa view of the 'TIME' and 'LUX' adjustment dials on the motion detector.
6.1. TIME Adjustment (Illumination Duration)
The 'TIME' dial controls how long the connected light remains on after motion is detected and no further motion is sensed. The duration can be set from approximately 10 seconds to 7 minutes.
- Turn the dial clockwise (+) for a longer illumination duration.
- Turn the dial counter-clockwise (-) for a shorter illumination duration.
6.2. LUX Adjustment (Ambient Brightness Sensitivity)
The 'LUX' dial determines the ambient light level at which the motion detector will activate. It can be set from 3 lux (dark) to 2000 lux (daylight).
- Turn the dial towards the sun icon for activation in brighter conditions (e.g., during the day).
- Turn the dial towards the moon icon for activation only in darker conditions (e.g., at night).
6.3. Adjusting the Sensor Head
The sensor head can be manually swiveled vertically by 300° to fine-tune the detection area. Adjust it to cover the desired zone and avoid areas where unwanted triggers might occur (e.g., public pathways, moving foliage).

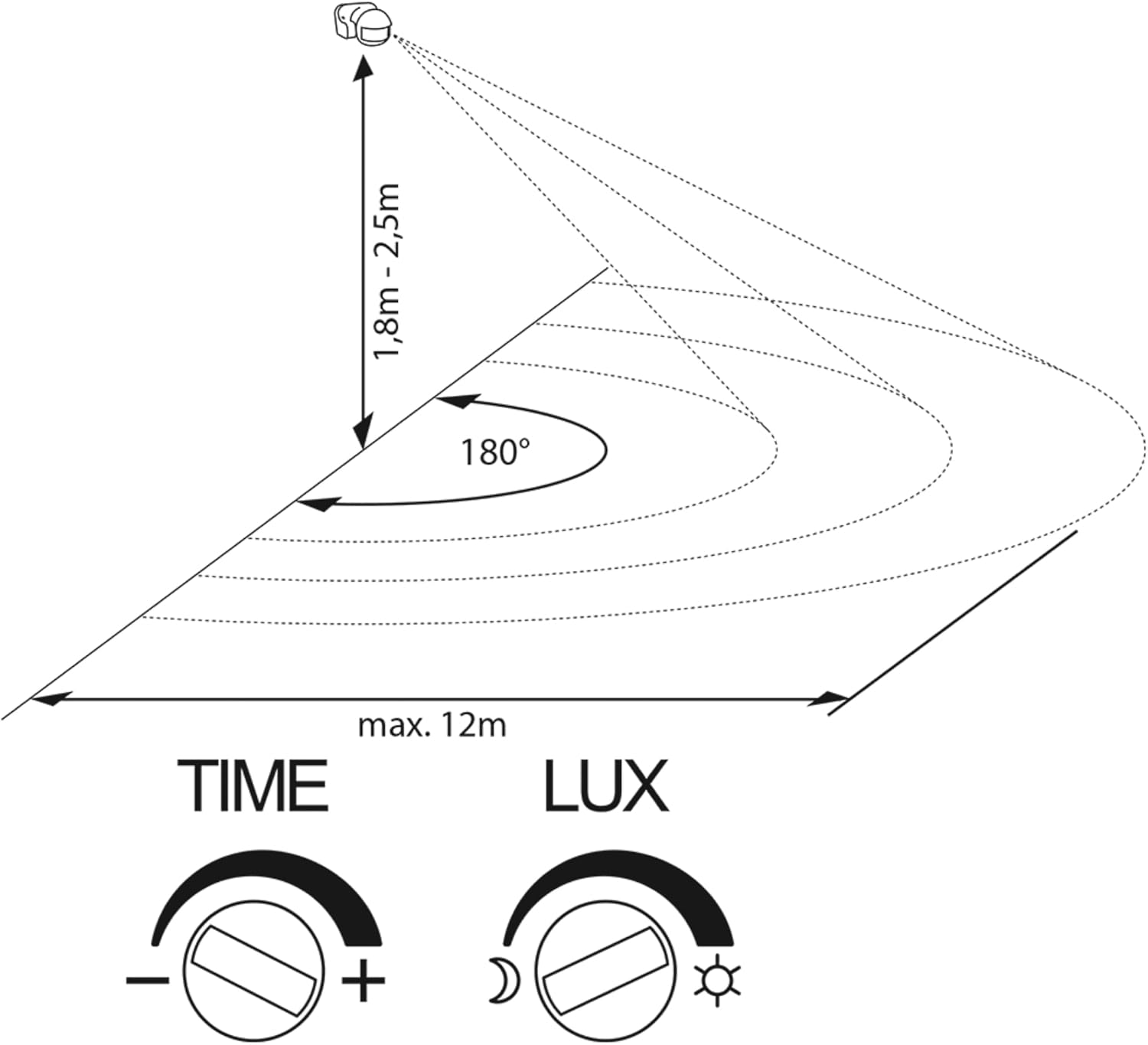

Image 6.2: Diagram illustrating the 180° detection range up to 12 meters and the function of TIME and LUX adjustment dials.
7. Kulawa
To ensure optimal performance and longevity of your motion detector:
- Tsaftacewa: Regularly clean the sensor lens and the outer casing with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface or the sensor.
- Dubawa: Periodically check the mounting screws for tightness and ensure the housing remains securely closed. Inspect the wiring for any signs of wear or damage.
- Abubuwan Muhalli: Keep the detection area clear of obstructions like growing plants or debris that could interfere with the sensor's operation.
8. Shirya matsala
If you encounter issues with your motion detector, refer to the following common problems and solutions:
| Matsala | Dalili mai yiwuwa | Magani |
|---|---|---|
| Haske ba ya kunna lokacin da aka gano motsi. |
|
|
| Light stays on continuously or turns on randomly. |
|
|
| Detection range is poor or inconsistent. |
|
|
If the problem persists after attempting these solutions, please contact SEBSON customer support.
9. Ƙayyadaddun bayanai
| Siffar | Ƙayyadaddun bayanai |
|---|---|
| Mai ƙira | SEBSON |
| Lambar Samfura | IR_OUT_BA |
| Girman samfur (L x W x H) | 8.6 x 6 x 9.6 cm |
| Nauyi | 155 Grams |
| Launi | Anthracite |
| Kayan abu | Filastik |
| Tushen wutar lantarki | AC |
| Voltage | 230 Volts |
| Max. Power (LED) | 300 Watts |
| Max. Power (Incandescent) | 1200 Watts |
| Hanyar shigarwa | Wall Mount (Surface-Mounted) |
| Daidaita Nau'in Bulb | LED |
| Rage Ganewa | 12m/180° |
| Swiveling Angle | 300° (vertical) |
| Illumination Duration (TIME) | Daƙiƙa 10 - mintuna 7 |
| Ambient Brightness (LUX) | 3 - 2000 lux |
| IP Rating | IP44 |
| Shawarwari Amfani | Waje |
| Zazzabi Mafi Girma | 40 Digiri Celsius |
| Ƙasar Asalin | China |
10. Garanti da Tallafawa
Manufar Komawa: This product is eligible for returns within 30 days of purchase, in accordance with the retailer's return policy.
Taimakon Abokin Ciniki: For technical assistance, troubleshooting, or any questions regarding your SEBSON motion detector, please contact SEBSON customer service directly through your purchase platform. Our team is dedicated to providing support and ensuring product quality.
