LITIONITE Capsule 65W / 30,000mAh Power Bank User Manual

1. Gabatarwa

Thank you for choosing the LITIONITE Capsule 65W / 30,000mAh Power Bank. This portable power solution is designed to provide reliable and efficient charging for a wide range of devices, including laptops, smartphones, and tablets. Featuring Power Delivery (PD) 3.0 via USB-C and Quick Charge (QC) 3.0 via USB-A, it ensures fast and versatile charging capabilities. Please read this manual carefully to understand the product's features, operation, and maintenance.

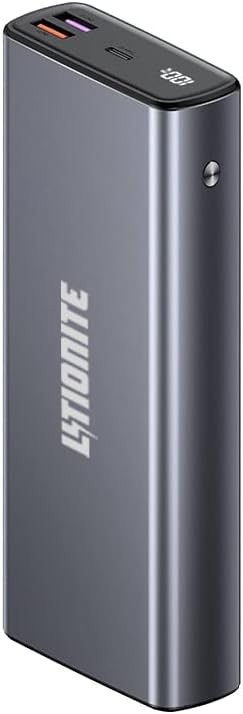

Image 1.1: LITIONITE Capsule 65W 30000mAh Power Bank, front view with LED display showing 100% charge.

2. Samfurin Ya Ƙareview

The LITIONITE Capsule Power Bank is a high-capacity portable charger with a robust aluminum casing. It integrates advanced charging technologies to support various devices.

Mabuɗin fasali:

• Babban Ƙarfi: 30,000 mAh battery, capable of charging a smartphone multiple times or powering a laptop for extended periods.
• Power Delivery (PD) 3.0: One bidirectional USB-C port (65W output, 45W input) for fast charging of laptops and other high-power devices.
• Quick Charge (QC) 3.0: Two USB-A ports (18W and 22.5W) for rapid charging of compatible smartphones and tablets.
• Nuni Dijital mai hankali: Shows the remaining battery charge percentage.
• Yanayin Ƙasa na Yanzu: Optimized for charging small devices like smartwatches and Bluetooth headphones.
• Wuce-Ta Caji: Allows simultaneous charging of the power bank and connected devices.

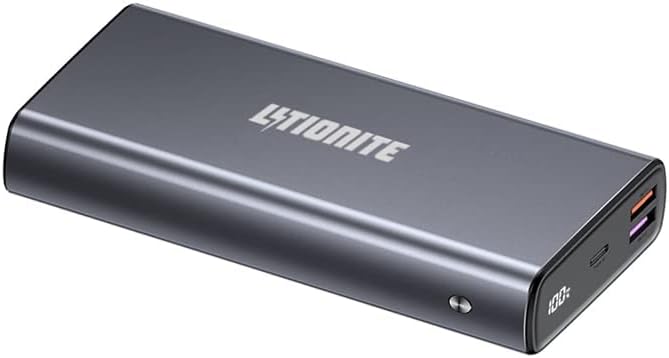

Hoto 2.1: Angled view of the LITIONITE Capsule Power Bank, highlighting its USB-C and USB-A ports.

3. Saita

Cajin Farko:

Before first use, fully charge your LITIONITE Capsule Power Bank. The power bank can be completely charged in approximately 3 hours using a 45W Power Delivery (PD) wall charger (not included). Alternatively, you can recharge the power bank using the original USB-C PD power supply of your laptop, smartphone, or tablet.

1. Connect a USB-C charging cable to the USB-C port on the power bank.
2. Connect the other end of the USB-C cable to a compatible 45W PD wall charger or device power supply.
3. The digital display will show the charging progress. The power bank is fully charged when the display shows 100%.

Image 3.1: LITIONITE Capsule Power Bank shown with a USB-C to USB-C charging cable, illustrating the connection for charging.

4. Umarnin Aiki

Na'urar Caji:

The power bank features one USB Type-C PD 3.0 port (65W output) and two USB-A ports with Quick Charge 3.0 technology (18W and 22.5W). All ports intelligently detect the connected device to deliver the fastest possible charge.

• Cajin Na'ura Guda Guda: Connect your device to any available port using a compatible charging cable. The power bank will automatically begin charging.
• Cajin Na'ura da yawa: You can charge 2 or 3 devices simultaneously. When charging multiple devices, the total charging power is distributed, and the power output for each port may decrease to 15W (5V-3A).

Image 4.1: The LITIONITE Capsule Power Bank actively charging both a laptop and a smartphone.

Image 4.2: The LITIONITE Capsule Power Bank simultaneously charging multiple smartphones, demonstrating its multi-device capability.

Yanayin Ƙasa na Yanzu:

This mode is designed for charging small electronic devices that require very low current, such as smartwatches, fitness trackers, and Bluetooth headphones. To activate this mode:

1. Double-click the power button on the power bank.
2. Connect your low-current device. The power bank will provide a stable, low-power output.
3. To exit low current mode, double-click the power button again.

Wuce-Ta Caji:

The LITIONITE Capsule Power Bank supports pass-through charging. This feature allows you to charge the power bank itself while simultaneously charging other devices connected to it. This is useful for managing power when you have limited wall outlets.

LED Digital Nuni:

The intelligent digital display shows the remaining battery charge percentage. The display activates when you press the power button or connect a device for charging. It will automatically turn off after a short period of inactivity to conserve power.

Image 4.3: LITIONITE Capsule Power Bank charging a smartphone, with the phone screen indicating 66% charge.

5. Kulawa

Proper care and maintenance will extend the lifespan of your power bank.

• Ajiya: Ajiye bankin wutar lantarki a wuri mai sanyi, bushewa nesa da hasken rana kai tsaye da matsanancin zafi.
• Tsaftacewa: Yi amfani da laushi, bushe bushe don tsaftace waje na bankin wutar lantarki. Kada a yi amfani da masu tsabtace ruwa ko kayan goge baki.
• Guji Sauki: Kare na'urar daga faɗuwa da tasiri, wanda zai iya lalata abubuwan ciki.
• Bayyanar Ruwa: Kar a bijirar da bankin wutar lantarki ga ruwa ko danshi.
• Amfani na yau da kullun: For optimal battery health, use and recharge the power bank at least once every three months.

6. Shirya matsala

If you encounter issues with your LITIONITE Capsule Power Bank, please refer to the following common solutions:

• Na'urar ba ta caji:
  • Tabbatar cewa bankin wutar lantarki yana da isasshen caji. Duba nunin LED.
  • Tabbatar cewa kebul ɗin caji yana haɗe amintacce zuwa duka bankin wuta da na'urarka.
  • Gwada wata kebul na caji ko tashar jiragen ruwa daban.
  • Ensure your device is compatible with the power bank's output specifications.
• A hankali caji:
  • Ensure you are using a compatible fast-charging cable and your device supports fast charging.
  • If charging multiple devices, the output per port may be reduced. Try charging a single device.
  • Check if the power bank is in Low Current Mode (double-click the power button to toggle).
• Bankin wutar lantarki baya caji:
  • Ensure the wall charger is functioning correctly and provides sufficient power (e.g., 45W PD charger).
  • Verify the charging cable is not damaged and is securely connected.
  • Try a different wall charger or USB-C power source.

7. Ƙayyadaddun bayanai

8. Garanti da Tallafawa

LITIONITE products come with a European warranty. For any technical assistance or support inquiries, please contact our French support team. Refer to the product packaging or the LITIONITE official website don takamaiman bayanan tuntuɓar.
