TP-Link UB5A Bluetooth 5.0 Nano USB Adapter User Manual

1. Gabatarwa

The TP-Link UB5A is a compact Bluetooth 5.0 Nano USB Adapter designed to provide Bluetooth connectivity to your desktop or laptop computer. This adapter allows you to connect various Bluetooth-enabled devices such as headphones, speakers, keyboards, mice, and game controllers wirelessly. Its nano size ensures a low-profile fit, making it ideal for permanent installation in a USB port.

Gaba view of the TP-Link UB5A Bluetooth 5.0 Nano USB Adapter, showcasing its compact design and TP-Link branding.

2. Saita da Shigarwa

Follow these steps to install your TP-Link UB5A Bluetooth 5.0 Nano USB Adapter:

1. Saka Adaftar: Plug the UB5A adapter into an available USB 2.0 port on your desktop or laptop computer.
2. Shigar Direba: For most modern operating systems (Windows 10/8.1/7), the necessary drivers should install automatically upon connection. If the adapter is not recognized or Bluetooth functionality is not available, you may need to manually install drivers.
3. Shigar da Driver da hannu (idan ana buƙata):
   • Visit the official TP-Link support website: www.tp-link.com/support.
   • Bincika 'UB5A' and download the latest drivers compatible with your operating system.
   • Gudura mai sakawa na direba da aka sauke kuma bi umarnin da ke kan allon.

The TP-Link UB5A adapter discreetly plugged into a laptop's USB port, demonstrating its nano size and low-profile dace.

3. Umarnin Aiki

Once the adapter is installed and recognized by your system, you can begin pairing Bluetooth devices:

1. Kunna Bluetooth: Ensure Bluetooth is enabled on your computer. This can usually be done through the Windows Settings (Settings > Devices > Bluetooth & other devices) or the system tray icon.
2. Put Device in Pairing Mode: Place your Bluetooth device (e.g., headphones, speaker, mouse) into pairing mode. Refer to your device's manual for specific instructions on how to do this. Typically, this involves holding down a power or Bluetooth button until an indicator light flashes.
3. Ƙara Na'ura: On your computer, click "Add Bluetooth or other device" and select "Bluetooth." Your computer will scan for nearby Bluetooth devices.
4. Zaɓi kuma Haɗa: From the list of discovered devices, select your device and follow any on-screen prompts to complete the pairing process. You may be asked to enter a PIN or confirm a code.
5. Tabbatar da Haɗin kai: Once paired, your device should appear as "Connected" in your computer's Bluetooth settings.

The retail packaging for the TP-Link UB5A adapter, highlighting key features like Bluetooth 5.0 and Windows compatibility.

4. Kulawa

The TP-Link UB5A adapter requires minimal maintenance. To ensure optimal performance and longevity:

• Keep the adapter plugged into a USB port to avoid misplacement, as its small size can make it easy to lose.
• Guji fallasa adaftar zuwa matsanancin zafi, danshi, ko hasken rana kai tsaye.
• Clean the adapter gently with a dry, soft cloth if necessary. Do not use liquid cleaners.

5. Shirya matsala

If you encounter issues with your TP-Link UB5A adapter, try the following troubleshooting steps:

• Ba a Gano Adafta ba:
  • Gwada toshe adaftan cikin wata tashar USB ta daban akan kwamfutarka.
  • Sake kunna kwamfutarka.
  • Ensure the drivers are correctly installed (refer to Section 2).
• Cannot Pair Devices:
  • Tabbatar cewa na'urarka ta Bluetooth tana cikin yanayin haɗin kai.
  • Ensure the device is within range (typically up to 10 meters or 33 feet).
  • Turn off and on Bluetooth on your computer.
  • Remove any previously paired instances of the device from your computer's Bluetooth settings and try pairing again.
• Unstable Connection or Poor Audio Quality:
  • Ensure there are no physical obstructions or sources of interference (e.g., Wi-Fi routers, microwaves) between the adapter and your Bluetooth device.
  • Update your Bluetooth drivers to the latest version from the TP-Link support website.
  • Try moving the computer or the Bluetooth device to a different location.

6. Ƙayyadaddun bayanai

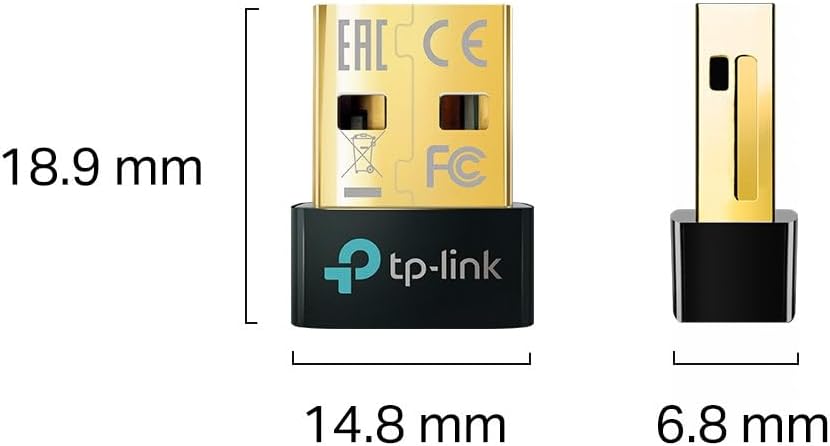

Diagram illustrating the compact dimensions of the TP-Link UB5A adapter: 18.9 mm length, 14.8 mm width, and 6.8 mm height.

7. Garanti da Tallafawa

Bayanin Garanti: The TP-Link UB5A Bluetooth 5.0 Nano USB Adapter comes with a garanti na shekaru uku against manufacturing defects, ensuring reliability and peace of mind.

Goyon bayan sana'a: For further assistance, technical support, or warranty claims, please visit the official TP-Link support webshafin yanar gizo ko tuntuɓi sabis ɗin abokin ciniki:

• Taimakon TP-Link Website: www.tp-link.com/support
• Tallafin Imel: support.usa@tp-link.com
• Tallafin Waya: 866.225.8139

Please have your product model (UB5A) and purchase information ready when contacting support.
