LUCORB Portable Gym Timer Instruction Manual

1. Gabatarwa

This manual provides detailed instructions for the LUCORB Portable Gym Timer, model B0BYH9SP13. This device is designed to assist with various fitness activities by providing accurate timekeeping for interval training, countdowns, count-ups, and stopwatch functions. Please read this manual thoroughly before using the product to ensure proper operation and to maximize its lifespan.

2. Bayanin Tsaro

• Karanta duk umarnin a hankali kafin aiki da na'urar.
• Keep the timer away from water and excessive moisture to prevent damage.
• Kada ka yi ƙoƙarin wargaza ko gyara na'urar. Wannan zai ɓata garantin.
• Yi amfani da kebul na caji na USB da aka bayar ko kuma wanda aka tabbatar da shi don caji kawai.
• Avoid exposing the timer to extreme temperatures or direct sunlight for prolonged periods.

3. Samfurin Ya Ƙareview

The LUCORB Portable Gym Timer is a compact and versatile device designed for various workout needs. It features a clear LED display, multiple timing modes, and a magnetic back for convenient placement.

Image 3.1: The LUCORB Portable Gym Timer, highlighting its compact and portable dimensions (approximately 6.3 inches long, 2 inches wide, and 0.9 inches thick). The image also indicates it is rechargeable and battery-powered.

Mabuɗin fasali:

• Ƙirƙirar ƙira mai ɗaukuwa: Sauƙi don ɗauka da amfani a ko'ina.
• Magnetic Baya: Allows for secure attachment to metal surfaces.
• Baturi Mai Caji: Provides long-lasting power for workouts.
• Halayen Lokaci da yawa: Includes Interval Timer, Countdown, Count Up, and Stopwatch.
• Time Progress Bar: Visual indicator for workout progress.
• Adjustable Sound and Countdown: Customizable settings for personalized use.

4. Abubuwan Kunshin

Da fatan za a duba kunshin don abubuwa masu zuwa:

• LUCORB Portable Gym Timer (1)
• Kebul na Caji (1)
• Littafin mai amfani (1)

5. Saita

5.1 Charging the Timer

Before first use, fully charge the timer. Connect the provided USB charging cable to the timer's charging port and plug the other end into a standard USB power adapter (not included) or a computer's USB port. The display will indicate charging status. A full charge typically takes 2-3 hours.

5.2 Kunnawa / Kashewa

• Don Kunnawa: Latsa ka riƙe Maɓallin Wuta (usually located on the side or top) for 3 seconds until the display lights up.
• Don Kashe: Latsa ka riƙe Maɓallin Wuta for 3 seconds until the display turns off.

5.3 Wuri

The LUCORB Gym Timer features a strong magnetic back, allowing it to be securely attached to any metal surface, such as gym equipment, racks, or whiteboards. Ensure the surface is clean and stable before attaching.

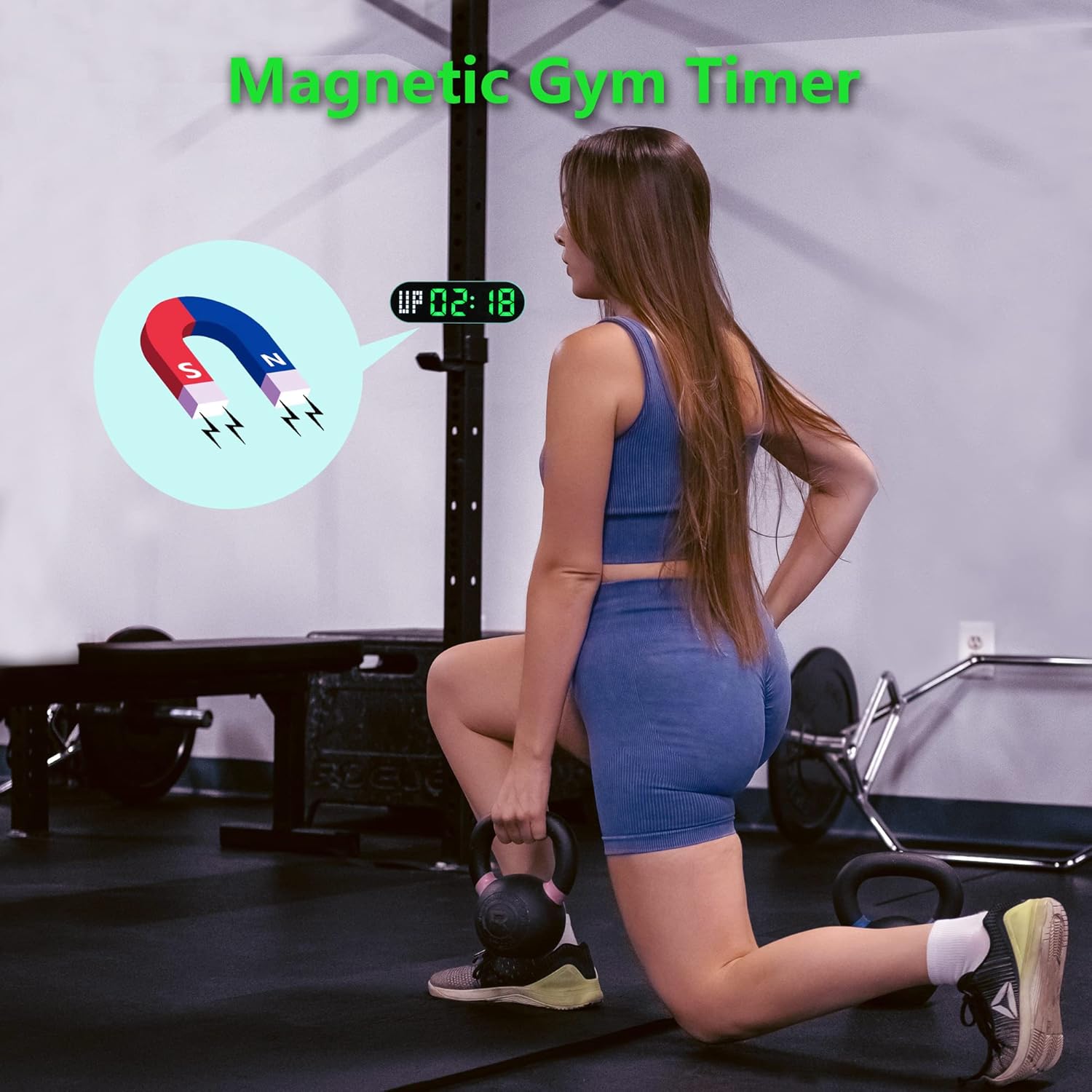

Image 5.1: The timer demonstrating its magnetic attachment capability to a metal gym rack, providing convenient visibility during workouts.

6. Umarnin Aiki

The timer has several buttons for navigation and settings. Refer to the diagram below for button identification (buttons are typically located on the top edge of the device).

• Maɓallin MODE: Cycles through different timing modes (Interval, Countdown, Count Up, Stopwatch).
• Maballin SET: Enters setting mode for the current timing program.
• Maɓallin FARA/DAKATARWA: Starts or pauses the current timer.
• +/- Maɓalli: Adjusts values when in setting mode.

6.1 Fahimtar Nuni

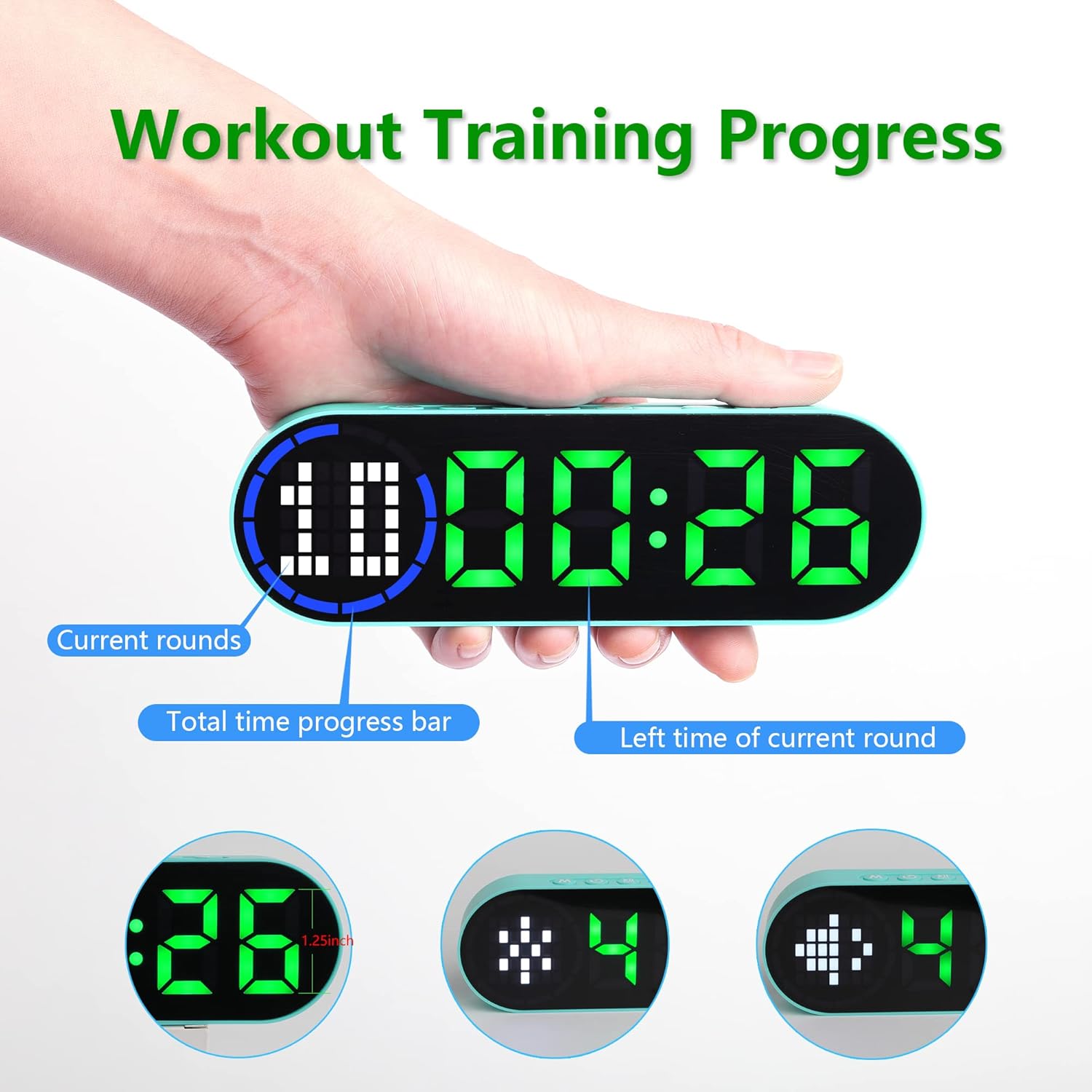

Image 6.1: The timer display indicating "Current rounds" (left), "Total time progress bar" (top segment), and "Left time of current round" (right). This visual feedback helps track workout progress.

6.2 Yanayin Lokaci

Danna maɓallin Maɓallin MODE to cycle through the available timing modes:

Image 6.2: The timer displaying examples of its four main modes: Interval Timer, Count Down, Count Up, and Stopwatch, each with distinct visual indicators.

6.2.1 Interval Timer (e.g., HIIT, Tabata)

1. Latsa MODE until "F" (Work) and "C" (Rest) indicators appear.
2. Latsa SET to enter setting mode. The time for the first interval (Work) will flash.
3. Amfani +/- Maballin to adjust minutes and seconds for the Work period. Press SET to confirm and move to the Rest period.
4. Adjust minutes and seconds for the Rest period using +/- Maballin. Latsa SET to confirm and move to the number of rounds.
5. Adjust the number of rounds. Press SET don ajiye saituna kuma fita.
6. Latsa FARA/DAKATARWA to begin the interval workout. The timer will count down the Work period, then the Rest period, for the set number of rounds.

6.2.2 Mai ƙidayar ƙidaya

1. Latsa MODE until "dn" or a countdown format (e.g., 00:00) is displayed.
2. Latsa SET to enter setting mode. The time will flash.
3. Amfani +/- Maballin to set the desired countdown time (minutes and seconds). Press SET to confirm each segment.
4. Latsa FARA/DAKATARWA don fara kirgawa.

6.2.3 Count Up Timer

1. Latsa MODE until "UP" or a count-up format (e.g., 00:00) is displayed.
2. The timer will typically start from 00:00.
3. Latsa FARA/DAKATARWA to begin counting up. Press again to pause.
4. To reset, press and hold the FARA/DAKATARWA button or a dedicated Sake saitin button (if available) while paused.

6.2.4 Agogon awon gudu

1. Latsa MODE until "ST" or a stopwatch format (e.g., 00:00:00) is displayed.
2. Latsa FARA/DAKATARWA to begin counting. Press again to pause.
3. To reset the stopwatch to zero, press and hold the FARA/DAKATARWA button or a dedicated Sake saitin button (if available) while paused.

6.3 Daidaitacce Saituna

Image 6.3: The timer illustrating adjustable features, including Sound Type (1-3) and a customizable 10-second countdown (0-99 seconds) before a program starts.

6.3.1 Sound Type Adjustment

Some modes allow adjustment of the sound type or volume. While in a setting mode (e.g., Interval Timer setup), look for an option to adjust "Sound Type" (often indicated by a speaker icon or "SND"). Use the +/- Maballin to cycle through available sound options (e.g., 1, 2, 3 for different tones or volumes). Press SET don tabbatarwa.

6.3.2 Initial Countdown Adjustment

Before starting a timed program (like Interval or Countdown), the timer may offer an initial preparation countdown (e.g., 10 seconds). This can often be adjusted from 0 to 99 seconds. While in a setting mode, look for a "10s Countdown" or "PREP" setting. Use the +/- Maballin to set the desired pre-countdown duration. Press SET don tabbatarwa.

7. Kulawa

7.1 Tsaftacewa

To clean the timer, gently wipe the surface with a dry, soft cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the display or casing.

7.2 Adana

When not in use for extended periods, store the timer in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the battery is partially charged before storing to maintain battery health.

8. Shirya matsala

• Timer not turning on:
  • Ensure the battery is charged. Connect the timer to a power source using the USB cable.
  • Latsa ka riƙe Maballin Wuta na tsawon daƙiƙa 3.
• Display is dim or unresponsive:
  • Yi cajin baturi.
  • Gwada kashe na'urar kuma a sake kunnawa.
• Maɓalli ba su da amsa:
  • Restart the timer by powering it off and then on.
  • Ensure your fingers are dry and clean when pressing buttons.
• Timer not holding a charge:
  • Tabbatar an haɗa kebul ɗin caji amintacce.
  • Gwada adaftar wutar lantarki na USB daban ko tashar jiragen ruwa.
  • Idan batun ya ci gaba, tuntuɓi tallafin abokin ciniki.

9. Ƙayyadaddun bayanai

10. Garanti da Tallafawa

For warranty information, technical support, or any inquiries regarding your LUCORB Portable Gym Timer, please refer to the product packaging or contact LUCORB customer service through the retailer where the product was purchased. Please have your model number (B0BYH9SP13) and purchase date available when contacting support.
