SWAREY 6.5L Professional Ultrasonic Cleaner Instruction Manual

1. Gabatarwa

Thank you for choosing the SWAREY 6.5L Professional Ultrasonic Cleaner. This device utilizes ultrasonic waves to provide thorough and efficient cleaning for a wide range of items. Please read this manual carefully before operation to ensure safe and optimal use of the product. Keep this manual for future reference.

Image 1.1: The SWAREY 6.5L Professional Ultrasonic Cleaner, showcasing its stainless steel construction and digital control panel.

2. Umarnin Tsaro

To prevent personal injury or damage to the unit, always observe the following safety precautions:

• Do not operate the unit without liquid in the tank.
• Tabbatar an sanya naúrar a kan barga mai daidaitacce.
• Kada a nutsar da babban naúrar cikin ruwa ko wasu ruwaye.
• A kiyaye nesa da yara.
• Use only appropriate cleaning solutions. Avoid flammable, corrosive, or abrasive liquids.
• Unplug the unit from the power outlet before filling, emptying, or cleaning.
• Do not touch the tank or cleaning solution during operation, especially when the heating function is active.
• If the unit is damaged, do not operate it. Contact customer support.
• Tabbatar da samun iska mai kyau yayin aiki.

3. Samfurin Ya Ƙareview

3.1 Maɓalli Maɓalli

• Iyawa: 6.5 liters, with a tank size of 30 x 15 x 15 cm.
• Abu: Constructed from high-quality 304 stainless steel for durability and resistance to weak acids and alkalis.
• Advanced Transducer Technology: Features 3 industrial-grade transducers (3 x 60W = 180W ultrasonic power) with a piezoelectric sandwich structure for enhanced cleaning efficiency.
• Tsabtace Mai ƙarfi: Operates at an ultrasonic frequency of 40 kHz with 180W ultrasonic power and 300W heating power.
• Ikon Dijital: Equipped with a digital display for precise time (0-99 min) and temperature (0-80°C) control.
• Aikin Degas: Intermittently removes gas from the liquid to reduce bubble resistance and improve cleaning effectiveness.
• Faɗin Aikace-aikacen: Suitable for cleaning jewelry, glasses, waterproof watches, carburetors, hardware, 3D print models, screws, circuit boards, industrial tools, and more.

3.2 Abubuwan

The SWAREY Ultrasonic Cleaner includes the main unit, a stainless steel lid, a cleaning basket, and a power cord.

Image 3.1: The ultrasonic cleaner unit shown with its accessories, including the cleaning basket and power cable.

3.3 Digital Control Panel

The control panel features a digital display for temperature and time settings, along with buttons for various functions.

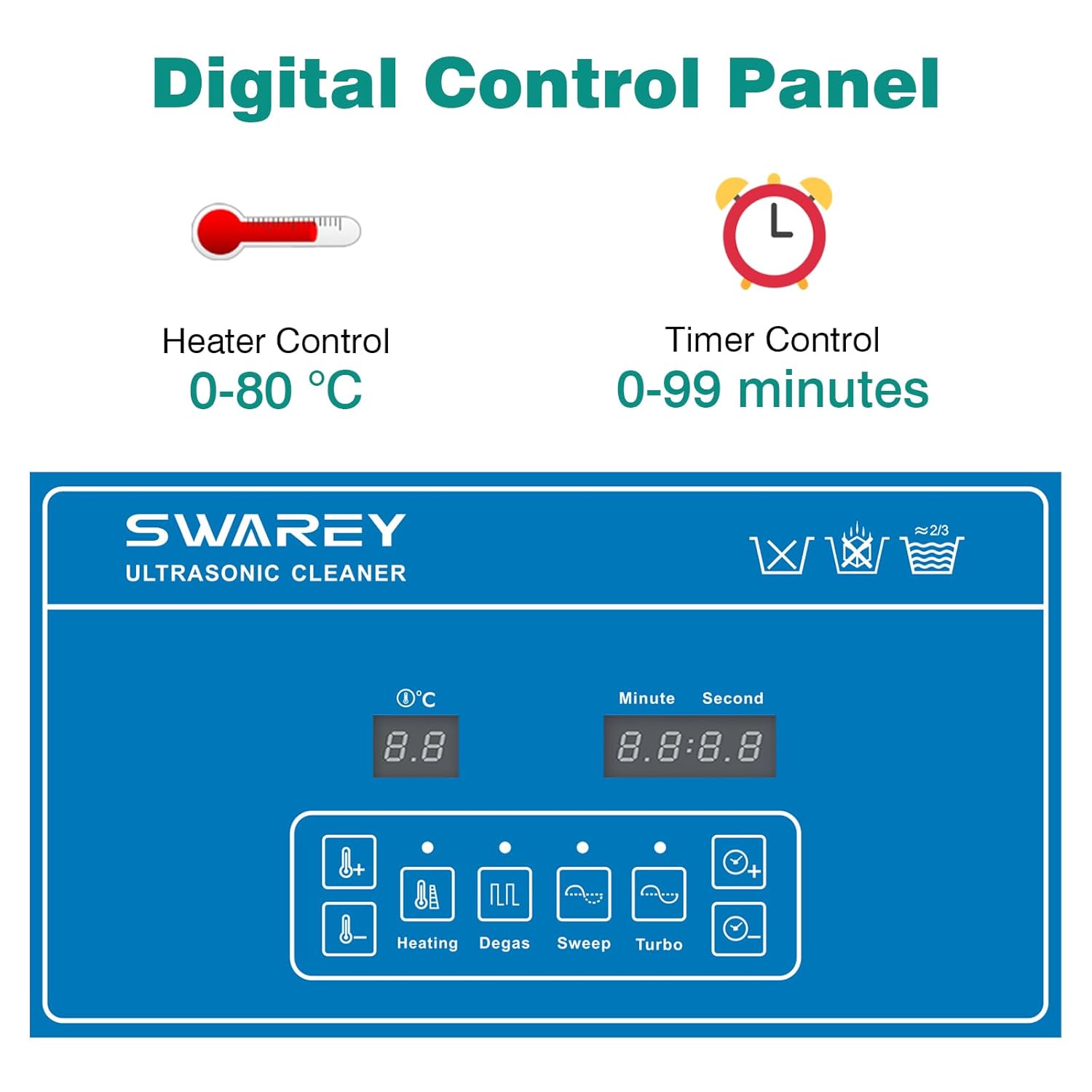

Hoto 3.2: Cikakken bayani view of the digital control panel, showing temperature and timer displays, and function buttons for heating, degas, sweep, and turbo modes.

3.4 Girman Samfura

Image 3.3: A diagram illustrating the external and internal dimensions of the ultrasonic cleaner, including the tank size of 30cm x 15cm x 15cm (11.81in x 5.9in x 5.9in).

4. Saita

1. Wuri: Place the ultrasonic cleaner on a firm, level, and dry surface. Ensure there is adequate ventilation around the unit.
2. Cika Tankin: Open the lid and fill the stainless steel tank with an appropriate cleaning solution. Do not exceed the maximum fill line (approximately 2/3 full). Ensure the items to be cleaned will be fully submerged.
3. Haɗa Ikon: Plug the power cord into the unit's power inlet, then connect it to a grounded electrical outlet.
4. Shirya Abubuwan: Place the items to be cleaned into the cleaning basket. Lower the basket into the tank, ensuring items are submerged but not touching the bottom of the tank directly.

5. Umarnin Aiki

5.1 Basic Aiki

1. Kunna Wuta: Press the main power switch (usually located on the back or side of the unit) to turn on the cleaner. The digital display will illuminate.
2. Saita Zazzabi: Use the 'Heating' buttons (up/down arrows) to set the desired cleaning temperature (0-80°C). Heating can significantly improve cleaning results, especially for oil and wax removal.
3. Saita Lokaci: Use the 'Timer' buttons (up/down arrows) to set the desired cleaning duration (0-99 minutes).
4. Fara Tsaftacewa: Press the 'Start/Stop' button to begin the ultrasonic cleaning cycle. The unit will start generating ultrasonic waves and heating (if set).
5. Dakatar da Tsabtace: The unit will automatically stop when the timer expires. You can also press the 'Start/Stop' button at any time to pause or end the cycle.

5.2 Manyan Ayyuka

• Aikin Degas: Press the 'Degas' button to activate the degas function. This function operates intermittently (6 seconds on, 2 seconds off) to remove dissolved gases from the cleaning solution, which can improve ultrasonic cavitation and cleaning efficiency. It is recommended to use this function for a few minutes when using fresh cleaning solution.
• Sweep Function: (If available on your model) The 'Sweep' function varies the ultrasonic frequency slightly to ensure more uniform cleaning throughout the tank and prevent standing waves.
• Aikin Turbo: (If available on your model) The 'Turbo' function may provide a higher power output or a more intense cleaning cycle for stubborn dirt.

Image 5.1: Illustrates the interaction with the control panel for setting parameters.

Image 5.2: Depicts the heating process, which is effective for removing oil and wax from items.

5.3 Bayan Tsabtace

1. Once the cleaning cycle is complete, turn off the unit and unplug it from the power outlet.
2. Carefully lift the cleaning basket out of the tank.
3. Rinse the cleaned items with clean water to remove any residual cleaning solution.
4. Dry the items thoroughly before storage or use.
5. To empty the tank, use the drain valve located on the side of the unit. Collect the used solution in a suitable container and dispose of it according to local regulations.

6. Kulawa

• Tsaftace Tankin: After each use, especially with dirty solutions, clean the stainless steel tank. Wipe the interior with a soft cloth. Do not use abrasive cleaners or steel wool.
• Tsabtace Waje: Shafa waje naúrar tare da tallaamp cloth. Do not spray water directly onto the control panel or electrical components.
• Ajiya: Store the unit in a cool, dry place when not in use. Ensure the tank is empty and dry.
• Dubawa na yau da kullun: Lokaci-lokaci bincika igiyar wutar lantarki don kowane alamun lalacewa.

7. Shirya matsala

8. Ƙayyadaddun bayanai

9. Garanti da Tallafawa

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official SWAREY website. Please have your model number (SS6) and purchase date available when contacting support.
