Gabatarwa
Thank you for choosing the MAXIMUS LED Flashlight M-FL-025-DU. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your flashlight. Please read these instructions thoroughly before using the product and retain them for future reference.
The MAXIMUS LED Flashlight is designed for reliability and performance, offering 105 lumens of brightness and a beam distance of up to 42 meters. Its durable aluminum construction and IP20 rating make it suitable for various environments.

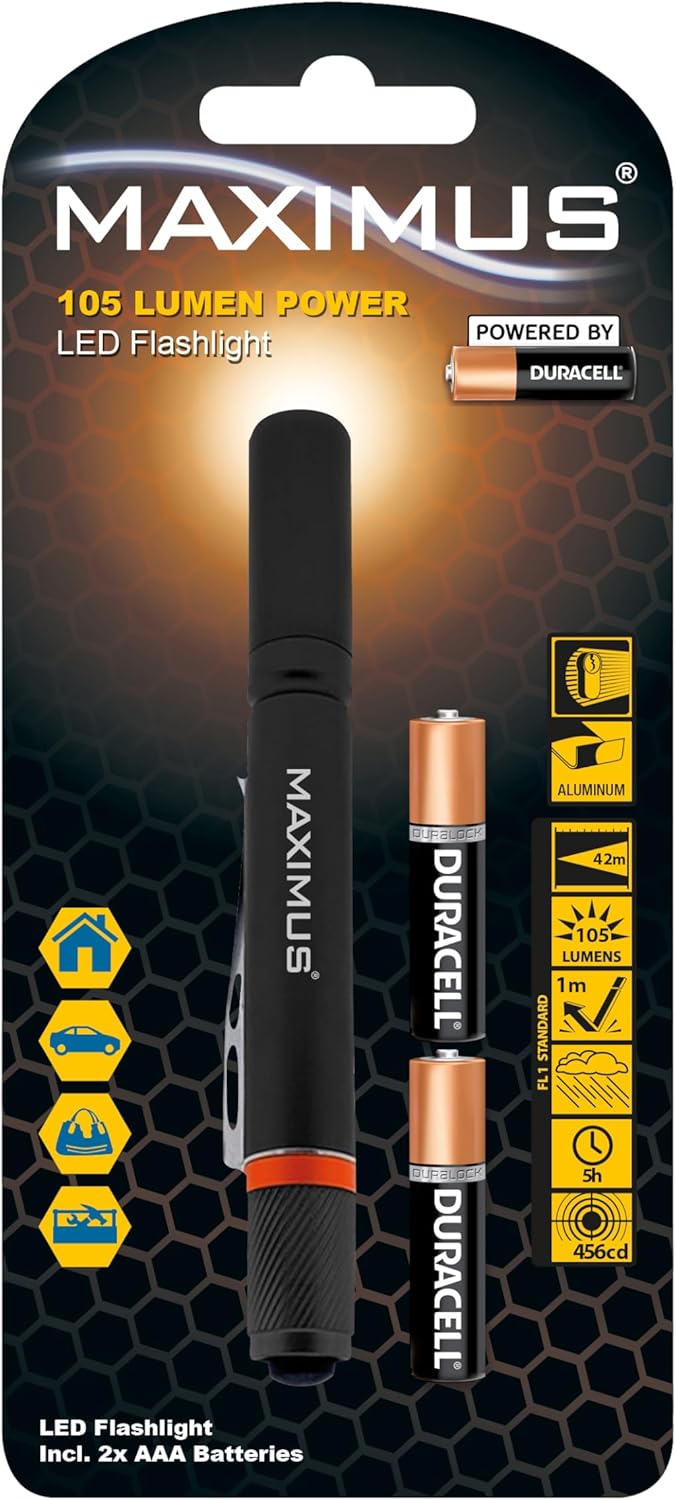

Image: MAXIMUS LED Flashlight M-FL-025-DU in its retail packaging, showcasing key features and design.
Saita
1. Ana kwashe kaya
- A hankali cire duk abubuwan da aka gyara daga marufi.
- Verify that all items listed in the "What's in the Box" section are present.
- Rike marufi don ajiya ko sufuri na gaba.
2. Shigar da Baturi
The MAXIMUS LED Flashlight requires 2 x AAA alkaline batteries (included). Follow these steps to install them:
- Cire hular wutsiya na tocila ta hanyar juya shi zuwa gaba-gaba.
- Insert two AAA batteries into the battery compartment, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the flashlight.
- Screw the tail cap back on clockwise until it is securely tightened. Do not overtighten.
Hoto: Rufewa view of the MAXIMUS LED Flashlight, illustrating the body and tail cap for battery access.
Muhimmi: Always use fresh batteries of the specified type. Do not mix old and new batteries, or different types of batteries.
Umarnin Aiki
1. Kunnawa / Kashewa
Don kunna walƙiya ON, press the button located on the tail cap. To turn the flashlight KASHE, sake danna maballin.
2. Hanyoyin Haske
The MAXIMUS LED Flashlight features multiple lighting modes. To cycle through the available modes (e.g., high brightness, energy-saving, strobe, SOS), press the tail cap button repeatedly while the flashlight is on. Each press will advance to the next mode.
- Babban Haskaka: Provides maximum illumination (105 lumens).
- Yanayin Ajiye Makamashi: Reduces brightness to conserve battery life.
- Strobe/SOS: Flashing modes for signaling or emergency situations.
The flashlight will typically remember the last used mode when turned off and on again, or it may default to high brightness. Refer to practical use for specific mode cycling behavior.
Kulawa
1. Tsaftacewa
- Shafa jikin tocila da laushi, damp zane.
- Kada a yi amfani da masu tsabtace abrasive ko kaushi, saboda waɗannan na iya lalata ƙarshen.
- Ensure the lens is clean for optimal light output.
2. Madadin Baturi
When the light output diminishes, it is time to replace the batteries. Follow the "Battery Installation" steps in the Setup section to replace the 2 x AAA alkaline batteries.
3. Adana
- If the flashlight will not be used for an extended period, remove the batteries to prevent leakage and potential damage.
- Ajiye fitilar a wuri mai sanyi da bushewa, nesa da hasken rana kai tsaye da kuma yanayin zafi mai tsanani.
4. Light Bulb Recycling and Disposal
LEDs are generally long-lasting, but proper disposal is important. For information on recycling and safe disposal of light bulbs and batteries, please consult your local waste management guidelines or recycling centers. Specific information regarding light bulb breakage and clean-up procedures should also be followed according to local regulations.
Shirya matsala
| Matsala | Dalili mai yiwuwa | Magani |
|---|---|---|
| Hasken walƙiya baya kunna. |
|
|
| Hasken duhu ne ko kyalli. |
|
|
Ƙayyadaddun bayanai
| Alamar | MAXIMUS |
| Lambar Samfura | M-FL-025-DU |
| Nau'in Tushen Haske | LED |
| Luminous Flux | 105 Lumen |
| Nisa Tsayi | Har zuwa mita 42 |
| Tushen wutar lantarki | Ana Karfin Batir |
| Nau'in Baturi | 2 x AAA Alkaline (included) |
| Lokacin gudu | Har zuwa awanni 5 |
| Kayan abu | Aluminum |
| Kimar hana ruwa | IP20 |
| Girman samfur | 10.5 x 51.5 x 2.5 cm |
| Nauyin Abu | 80g ku |
| Siffofin Musamman | Daidaitacce Halayen Haske |
Bayanin Garanti
This product is covered by a standard manufacturer's warranty. For specific details regarding warranty terms, duration, and claims procedures, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your proof of purchase for warranty validation.
Tallafin Abokin Ciniki
If you encounter any issues or have questions regarding your MAXIMUS LED Flashlight M-FL-025-DU that are not addressed in this manual, please contact the retailer from whom you purchased the product. They will be able to provide assistance or direct you to the appropriate support channels.
For general inquiries about MAXIMUS products, you may also visit the official MAXIMUS website (if available) for further information.
