Gigaset Pure 100 Cordless Phone User Manual

1. Gabatarwa

Thank you for choosing the Gigaset Pure 100 Cordless Phone. This manual provides essential information for setting up, operating, and maintaining your new phone. Please read these instructions carefully to ensure optimal performance and longevity of your device.

The Gigaset Pure 100 is designed for ease of use, featuring a call blocking button, a 50-contact address book, hearing aid compatibility, and programmable function keys to enhance your communication experience.

Image: The Gigaset Pure 100 cordless phone positioned in a home environment, showcasing ta sumul zane.

2. Abin da ke cikin Akwatin

Before you begin, please check the contents of your package. Ensure all items listed below are present:

• 1 Handset
• 1 Tashar Tusa
• 2 AAA Batura Masu Caji
• 1 Murfin baturi
• 1 adaftar da wutar lantarki
• 1 Telephone Connection Cable
• 1 Jagora mai sauri

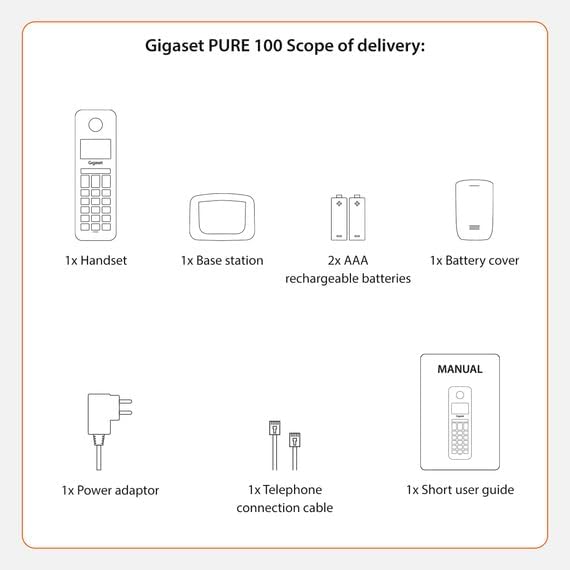

Image: A visual representation of the Gigaset Pure 100's scope of delivery, including handset, base, batteries, and cables.

3. Saita

3.1. Shigar da Baturi

1. Cire murfin batirin daga bayan wayar hannu.
2. Insert the two supplied AAA rechargeable batteries, observing the correct polarity (+/-).
3. Sauya murfin baturin har sai ya danna cikin wurin.

Image: The rear side of the Gigaset Pure 100 handset, illustrating where the battery cover is located for installation.

3.2. Haɗin Tashar Tushe

1. Connect the power adapter to the base station and plug it into a wall outlet.
2. Connect the telephone connection cable to the base station and plug the other end into your telephone wall socket.
3. Place the base station on a flat, stable surface.

3.3. Rijistar wayar hannu

The handset is usually pre-registered to the base station. If not, or if you are registering an additional handset:

1. Sanya wayar hannu a cikin tashar tushe.
2. Press and hold the registration/paging button on the base station for approximately 3 seconds. The base station will enter registration mode.
3. Follow the on-screen prompts on the handset to complete the registration process. You may need to enter a PIN (default is 0000).

Image: The Gigaset Pure 100 handset securely placed in its charging and communication base station.

4. Umarnin Aiki

4.1. Yin Kira

1. Ɗaga wayar hannu ko danna Koren Kira Key.
2. Buga lambar wayar da ake so.
3. Danna maɓallin Koren Kira Key again to initiate the call.
4. Don ƙare kira, danna maɓallin Maɓallin Kira na Ƙarshen Ja or place the handset back in the base station.

4.2. Karbar Kira

Lokacin da wayar tayi ringi, danna Koren Kira Key don amsa kiran.

4.3. Littafin Adireshi

The Gigaset Pure 100 can store up to 50 contacts in its address book.

1. To access the address book, press the Directory Key (usually an icon resembling an open book or person).
2. Use the navigation keys to scroll through your contacts.
3. To dial a contact, select their entry and press the Koren Kira Key.
4. To add a new contact, navigate to an empty entry or select the 'New Entry' option and follow the on-screen instructions to enter the name and number.

4.4. Toshe Kira

The Gigaset Pure 100 features a dedicated call blocking button to help manage unwanted calls.

1. During an incoming call from an unwanted number, press the Call Blocking Button (often marked with a shield or 'Block' icon).
2. The number will be added to your block list, and subsequent calls from this number will be rejected.
3. Refer to the quick guide for detailed instructions on managing your block list.

Image: The Gigaset Pure 100 handset screen showing a 'Blocked Number' notification, highlighting its call blocking feature.

4.5. Maɓallan Ayyukan Shirye-shiryen

The phone includes programmable function keys that can be assigned to frequently used numbers or features. Consult your quick guide for instructions on how to program these keys to suit your needs.

Image: An illustration demonstrating the Gigaset Pure 100's effective range, allowing calls from various locations within a property.

5. Kulawa

5.1. Tsaftacewa

Goge wayar hannu da tashar tushe da laushi, damp cloth. Do not use abrasive cleaners or solvents. Ensure no liquid enters the device openings.

5.2. Kula da baturi

Use only the recommended rechargeable AAA batteries. If the phone will not be used for an extended period, remove the batteries to prevent leakage. Replace batteries when their performance significantly degrades.

6. Shirya matsala

• Babu Sautin Kira:
  Check if the power adapter and telephone connection cable are securely plugged into the base station and wall outlets. Ensure the handset is registered to the base.
• Ba za a iya yin / karɓar kira ba:
  Verify that the telephone line is active. Check if the handset batteries are charged. Ensure the handset is within range of the base station.
• Rashin ingancin Sauti:
  Matsa kusa da tashar tushe. Duba ko akwai tsangwama daga wasu na'urorin lantarki.
• Handset Display is Blank:
  Place the handset in the base station to charge the batteries. If the issue persists, replace the batteries.

7. Ƙayyadaddun bayanai

8. Garanti da Tallafawa

For warranty information and technical support, please refer to the quick guide included in your package or visit the official Gigaset website. Ajiye shaidar siyan ku don da'awar garanti.
