1. Gabatarwa
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Faber Hood Mojito IN HC SC FL BK 60 Vertical Wall Mounted Chimney. Please read these instructions carefully before using the appliance and retain them for future reference.
2. Bayanin Tsaro
- Tabbatar da cewa wutar lantarki ta yi daidai da ƙa'idodin da ke kan lakabin ƙimar.
- Installation must be performed by a qualified technician.
- Do not operate the chimney without filters in place.
- Regular cleaning is crucial to prevent fire hazards from grease accumulation.
- Nisantar yara daga na'urar yayin aiki.
- Do not flambé under the chimney.
- Disconnect power before any cleaning or maintenance.
3. Samfurin Ya Ƙareview
The Faber Hood Mojito IN HC SC FL BK 60 is a vertical wall-mounted kitchen chimney designed for efficient smoke and odor extraction. It features advanced controls and a filterless design for ease of use and maintenance.
Mabuɗin fasali:
- Nau'in: Vertical/Slant Shape, Wall Mounted
- Ikon tsotsa: 1200m³/h
- Nau'in Tace: Filterless, corrosion-resistant single layer filter
- Nau'in Sarrafa: Touch Control, Gesture Control, Motion Sensor (On, Off, Speed Switching)
- Gudu: 3
- Siffofin Musamman: AutoClean, 1 LED Lamp, Dual Suction Vents
Hoto: Overview of key features including filter type, control, and suction capabilities.
4. Ƙayyadaddun bayanai
| Ƙayyadaddun bayanai | Daraja |
|---|---|
| Lambar Samfura | 325.0710.409 |
| Girma (LxWxH) | 60 x 41.5 x 48.5 santimita |
| Girman | 60 cm (Suitable for 2-4 burner stove) |
| Farancin Jirgin Sama | 1200m³/h |
| Matsayin Surutu | 58db ku |
| Kayan abu | Karfe |
| Voltage | 230 Volts |
| Watatage | 180 Watts |
| Nauyin Abu | 14.7 kilogiram |
| Nau'in Tushen Haske | LED |
| Ƙasar Asalin | China |
Image: Detailed dimensions of the chimney for installation planning.
5. Shigarwa
Proper installation is critical for the performance and safety of your chimney. It is highly recommended to have the chimney installed by a certified professional. Refer to the included installation guide for detailed steps.
Duban shigarwa kafin shigarwa:
- Girman Majalisar: Ensure adequate space between kitchen cabinets for the chimney.
- Nisa: Measure the clear width between cabinets. Common chimney widths are 60 cm, 75 cm, or 90 cm.
- Tsayi: Measure the height from the gas stove to the desired chimney base position. For slant models like this one, the recommended minimum clearance is typically 18-22 inches (45-55 cm) from the cooking surface. Always confirm specific clearance requirements in the detailed installation manual.
- Rushewa: Decide between ducted installation (expelling smoke outside) or ductless (using a charcoal filter, purchased separately).
Video: A guide on how to measure your kitchen space for chimney installation, covering width and height considerations for different chimney types.
Image: Illustrates the two primary installation options: ducted, which vents air outside, and ductless, which recirculates filtered air.
6. Aiki
Your Faber chimney offers intuitive controls for a seamless cooking experience.
Kwamitin Gudanarwa:
The chimney features a touch control panel, gesture control, and motion sensors for easy operation. The control panel typically includes buttons for power, fan speed adjustment, light, and auto-clean function.
Daidaita Gudun Fan:
- Use the touch controls or gesture sensors to select one of the three available fan speeds.
- Higher speeds are recommended for heavy cooking or strong odors.
Haske:
Press the light button on the touch panel to turn the LED lamp on or off, providing illumination for your cooking area.

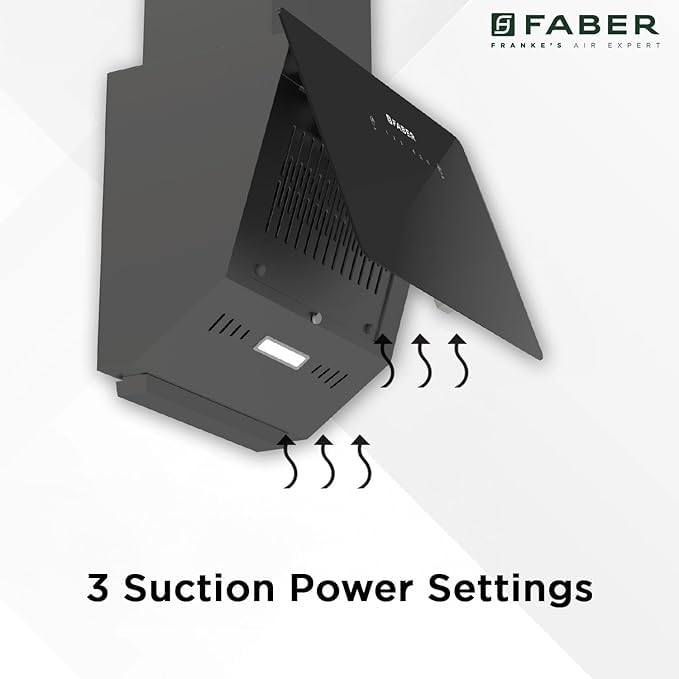

Boost Suction:
To enhance airflow instantly, lift the flap on the chimney to maximize suction efficiency during intense cooking.
Image: Demonstrates how to activate the boost suction feature by lifting the chimney flap.
Image: Highlights the Auto Clean function, dual suction vents, and powerful 1200 m³/hr suction.
7. Kulawa
Regular maintenance ensures the longevity and optimal performance of your chimney.
AutoClean Function:
The AutoClean feature helps to remove oil and grease particles from the internal components. Activate this function regularly as per the instructions in the detailed manual to maintain efficiency.
Tace Tsabta:
Although filterless, the corrosion-resistant single layer filter should be wiped clean periodically to prevent grease buildup. Refer to the full manual for specific cleaning instructions.
Tsabtace Waje:
Clean the exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
8. Shirya matsala
If you encounter any issues, refer to the following common troubleshooting tips before contacting customer support.
Batutuwa gama gari da Magani:
- Chimney not turning on: Check power supply, ensure the plug is securely inserted, and check the circuit breaker.
- Ƙarfin tsotsa ƙasa: Ensure the flap is fully open for boost suction. Check for any obstructions in the ducting (if ducted). Clean the filter surface.
- Hayaniyar da ba ta saba ba: Ensure the chimney is securely mounted. Check for loose parts or obstructions in the fan.
- Haske ba ya aiki: Duba idan LED lamp needs replacement (contact service for this).
For persistent issues, please contact Faber customer support.
9. Garanti da Tallafawa
Your Faber Hood Mojito IN HC SC FL BK 60 Chimney comes with comprehensive warranty coverage:
- Garanti na samfur: Garanti na Shekaru 2 cikakke
- Garanti na Motoci: 8 Years Warranty on Motor
For installation services, warranty claims, or technical support, please contact Faber customer care at 1800-209-3484.
Image: Faber Protect+ logo, indicating extended warranty and peace of mind.
