ELECTROPRIME B5303 10.26 inch Portable Car MP5 Player

1. Gabatarwa

Thank you for choosing the ELECTROPRIME B5303 10.26 inch Portable Car MP5 Player. This device is designed to enhance your in-car entertainment and connectivity experience, offering a wide range of features including wireless CarPlay and Android Auto, Bluetooth connectivity, media playback from various sources, and FM transmission.

This manual provides detailed instructions on how to set up, operate, and maintain your new car MP5 player. Please read it thoroughly before use to ensure proper installation and optimal performance.

2. Samfurin Ya Ƙareview da Abubuwan Kunshin

The ELECTROPRIME B5303 is a versatile portable car MP5 player featuring a large 10.26-inch display. Below is an image of the product and a list of items included in your package.

Hoto 2.1: Gaba view of the ELECTROPRIME B5303 Portable Car MP5 Player displaying the CarPlay interface.

Abubuwan Kunshin:

• Host Unit (1x)
• User Instructions Manual (1x)
• Cigarette Lighter Power Cord (with USB charging port) (1x)
• Bakin Shigarwa (2x)
• Reversing Video Cable (1x)

Note: Accessories, instructions, and packaging may be updated by the manufacturer from time to time. Please refer to the actual contents received.

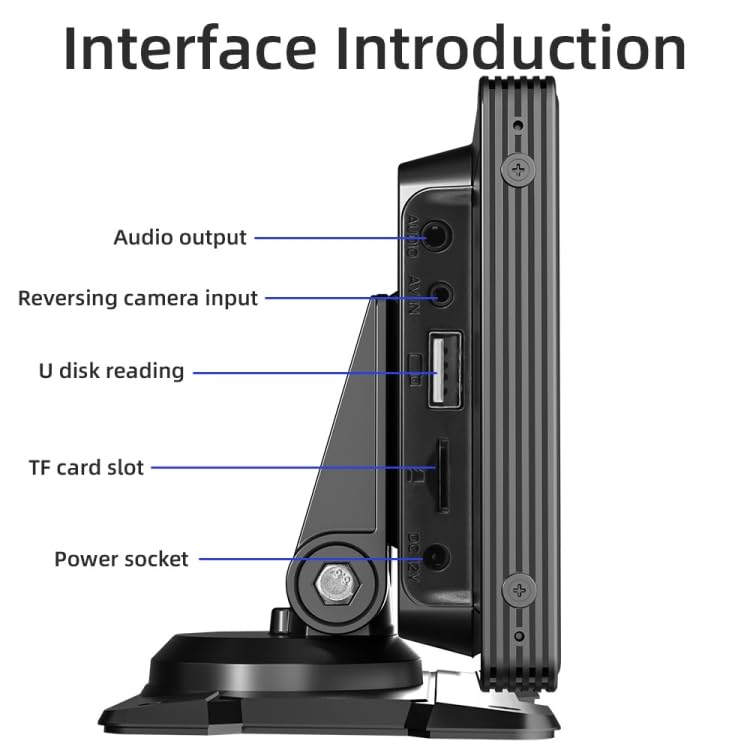

Hoto 2.2: Gefe view illustrating the various input/output ports on the ELECTROPRIME B5303. These include the Audio output, Reversing camera input, USB port for U disk reading, TF card slot, and the Power socket.

3. Saita da Shigarwa

Follow these steps to properly set up and install your portable car MP5 player.

3.1 Hawan Na'urar

1. Attach the provided installation brackets to the main unit.
2. Choose a suitable location on your dashboard that does not obstruct your view ko tsoma baki tare da sarrafa abin hawa.
3. Securely mount the device using the brackets. Ensure it is stable and does not move during driving.

3.2 Haɗin Wuta

1. Insert the cigarette lighter power cord into your vehicle's 12V or 24V cigarette lighter socket.
2. Connect the other end of the power cord to the DC 12V power socket on the side of the MP5 player (refer to Figure 2.2).
3. The unit should power on automatically or by pressing the power button.

3.3 Optional Rear View Haɗin Kamara

Idan kuna da baya na zaɓiview camera, connect it as follows:

1. Connect the reversing video cable to the "Reversing camera input" port on the MP5 player (refer to Figure 2.2).
2. Route the cable to your rearview camera and connect it according to the camera's instructions.
3. Ensure the camera's power is correctly wired to your vehicle's reverse light circuit for automatic activation.

4. Umarnin Aiki

This section details the various functions and how to operate your ELECTROPRIME B5303.

4.1 Aiki na asali

• Kunnawa/Kashewa: The device typically powers on with the vehicle's ignition. Press and hold the power button (if available) to manually turn it on or off.
• Sarrafa ƙara: Adjust volume using the on-screen controls or physical buttons if present.
• Hasken allo: Access display settings through the main menu to adjust brightness for optimal viewing.

4.2 Media Playback (SD Card / U Disk)

The device supports playback of audio, video, and image files from SD cards and USB drives (U disk).

1. Insert your SD card into the TF card slot or your USB drive into the USB2.0 port (refer to Figure 2.2).
2. Navigate to the respective media player application on the device's main interface.
3. Zaɓi abin da ake so file type (audio, video, or image) and choose the file yin wasa.

Tsarukan Tallafawa:

• Audio: MP3, AAC, APE, OGG, M4A, RA, WAV
• Bidiyo: H263, H264, H265, DIVX HD, AVI, FLV, MKV, MPEG, MP4, WMV9, VC, ASF, TS, QT
• Hoto: JPEG, PNG, BMP, GIF, TIFF

4.3 Aikin Bluetooth

Haɗa wayarku ta hannu ta hanyar Bluetooth don kiran waya kyauta da kuma yaɗa sauti.

1. On the MP5 player, go to the Bluetooth settings.
2. Kunna Bluetooth akan wayoyinku kuma bincika samammun na'urori.
3. Select "CarPlay" (default name) from the list on your phone to pair.
4. Once paired, you can make/receive calls and play music through the MP5 player.

4.4 Smartphone Integration (CarPlay / Android Auto / Screen Mirroring)

The device supports both wired and wireless CarPlay/Android Auto, as well as wired screen mirroring.

• Haɗin Mara waya: Ensure your phone's Wi-Fi and Bluetooth are enabled. The device will automatically prompt for connection when in range. Follow on-screen instructions to complete the setup.
• Haɗin Waya: Connect your smartphone to the USB port of the MP5 player using a compatible USB cable. The device will automatically detect and launch CarPlay or Android Auto, or initiate screen mirroring.

4.5 Radio Frequency Transmitting Function (FM Transmitter)

Transmit audio from the MP5 player to your car's FM radio.

1. Access the FM Transmitter settings on the MP5 player.
2. Select an unused FM frequency from the available options.
3. Tune your car's FM radio to the same frequency.
4. Audio from the MP5 player will now play through your car's speakers.

Akwai Mitoci: 88.60, 89.20, 89.50, 89.80, 91.50, 91.80, 93.00, 93.60, 93.90, 94.50, 95.10, 95.70 MHz.

4.6 Na baya View Aiki

Idan a bayaview an haɗa kyamara, nunin zai canza ta atomatik zuwa kamara view lokacin da aka sanya abin hawa a cikin juyi na gear.

5. Kulawa

Kulawa da kyau yana tabbatar da tsawon rai da ingantaccen aikin na'urar ku.

• Tsaftacewa: Use a soft, dry, lint-free cloth to clean the screen and exterior. For stubborn smudges, slightly dampen the cloth with water. Do not use harsh chemicals, abrasive cleaners, or solvents.
• Zazzabi: Operate the device within the specified working temperature range of -10°C to 60°C. Avoid exposing it to extreme heat or cold.
• Ajiya: Idan ba a amfani da na'urar na tsawon lokaci, a ajiye ta a wuri mai sanyi da bushewa, nesa da hasken rana kai tsaye.
• Gudanarwa: Ka guji jefa na'urar ko sanya ta ga tasiri mai ƙarfi.

6. Shirya matsala

If you encounter issues with your ELECTROPRIME B5303, refer to the following common problems and solutions.

Idan matsalar ta ci gaba bayan gwada waɗannan hanyoyin, tuntuɓi tallafin abokin ciniki.

7. Ƙayyadaddun bayanai

Detailed technical specifications for the ELECTROPRIME B5303 Portable Car MP5 Player.

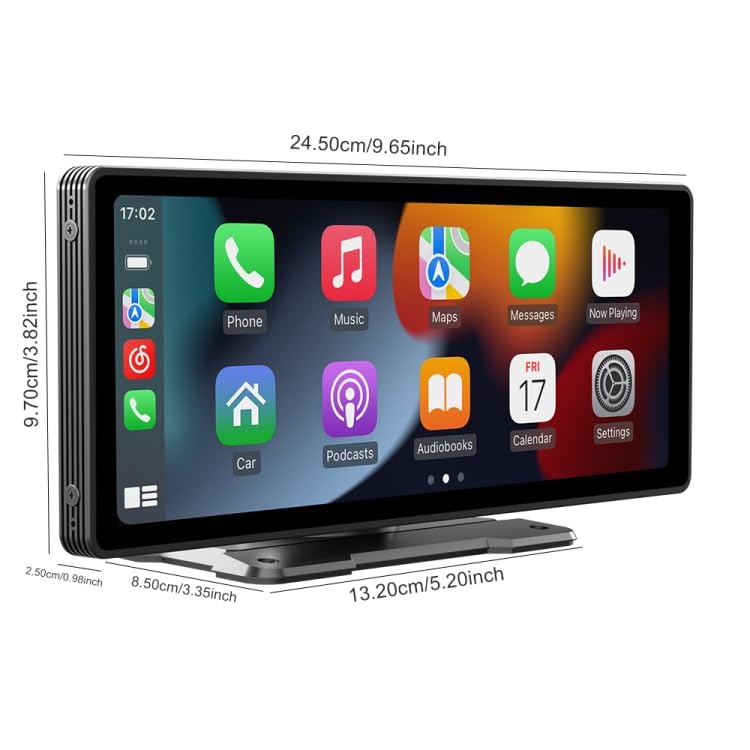

Figure 7.1: Dimensions of the ELECTROPRIME B5303 Portable Car MP5 Player. The main unit measures approximately 24.50 cm (9.65 inches) in width and 9.70 cm (3.82 inches) in height. The depth is about 2.50 cm (0.98 inches). The base measures 13.20 cm (5.20 inches) in width and 8.50 cm (3.35 inches) in depth.

8. Garanti da Tallafawa

ELECTROPRIME products are designed for reliability and performance. For warranty claims, technical support, or service inquiries, please refer to the retailer or manufacturer's official support channels.

Please note that the manufacturer reserves the right to update accessories, instructions, and packaging without prior notice. Always refer to the latest information provided with your product or on the official ELECTROPRIME website for the most current details regarding warranty and support.

For further assistance, please contact your point of purchase or visit the ELECTROPRIME official website.
