1. Gabatarwa
This manual provides detailed instructions for the installation, operation, and maintenance of your Alarm.com ADC-VC728PF Pro Series 4MP Bullet PoE Camera. This camera is designed for both indoor and outdoor surveillance, offering advanced features such as a motorized varifocal lens, 4MP video resolution, and intelligent analytics for enhanced security monitoring.
Please read this manual thoroughly before attempting to install or operate the device to ensure proper functionality and safety.
2. Abubuwan Kunshin
Tabbatar cewa duk abubuwa suna nan a cikin kunshin ku:
- Alarm.com ADC-VC728PF Camera
- Hawan Hardware
- Weather Resistant RJ45 Cap
- Jagoran Shigarwa
- Torx Wrench
3. Samfurin Ya Ƙareview
The Alarm.com ADC-VC728PF is a robust Power over Ethernet (PoE) bullet camera featuring a 4MP sensor and a motorized varifocal lens. This design allows for flexible installation and remote adjustment of the camera's field of view without compromising image quality. It supports 24/7 recording to an optional onboard microSD card or a Commercial-Grade Stream Video Recorder (CSVR126), and integrates advanced analytics for object detection and business activity tracking.

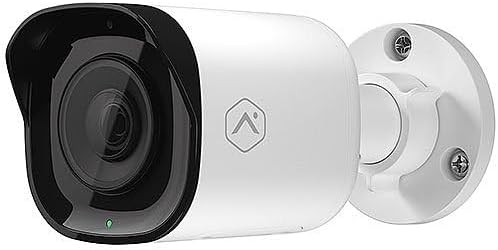

Gaba view of the Alarm.com ADC-VC728PF Pro Series 4MP Bullet PoE Camera, showing the lens, LED indicator, and the adjustable mounting base.
Mabuɗin fasali:
- 4MP WDR and HDR Video: Delivers high-resolution video with Wide Dynamic Range and High Dynamic Range capabilities (4MP recording supported on Commercial SVR).
- Motorized Varifocal Lens: Allows remote adjustment of the camera's field of view (3.2-9.8mm).
- Ƙarfin Ethernet (PoE): Yana sauƙaƙe shigarwa ta hanyar samar da wuta da bayanai akan kebul na Ethernet guda ɗaya.
- SD Card Local Storage: Supports optional onboard microSD card for 24/7 continuous recording.
- IR Night Night Vision: Provides clear video surveillance in low-light or no-light conditions.
- Perimeter Guard: Supports LED and Audio Alert features (requires firmware version 0.6.3.601+).
- Business Activity Analytics: Enables intelligent object detection and tracking for commercial applications.
- Amfani na cikin gida/Waje: Designed for versatile deployment in various environments.
4. Saita da Shigarwa
Follow these steps for proper installation of your camera.
4.1 Haɗa Kamara
- Zaɓi Wuri: Choose a suitable indoor or outdoor location for wall mounting. Ensure the area provides a clear field of view and is within reach of your network infrastructure.
- Shirya Surface: Use the included mounting hardware to secure the camera base to the chosen surface. Drill pilot holes if necessary.
- Haɗa Kamara: Securely attach the camera to the mounting base. The adjustable ball joint allows for flexible positioning.
4.2 Wayoyi da Haɗi
- Haɗa kebul na Ethernet: Connect a standard Ethernet cable from your PoE-enabled network switch or injector to the camera's RJ45 port.
- Apply Weather Resistant Cap: For outdoor installations, use the included weather-resistant RJ45 cap to protect the Ethernet connection from environmental elements.
- Kunna Wuta: Once connected to a PoE source, the camera will power on automatically. The status LED on the camera will indicate its operational status.
- Tsarin Yanar Gizo: Access the Alarm.com platform or your network management interface to discover and configure the camera. Refer to the Alarm.com documentation for specific network setup procedures.
5. Aiki
After successful installation and network configuration, you can begin operating your ADC-VC728PF camera.
5.1 Varifocal Lens Adjustment
- The motorized varifocal lens can be adjusted remotely through the Alarm.com app or web dubawa.
- Navigate to the camera settings to widen or narrow the field of view to optimize surveillance coverage.
5.2 SD Card Recording
- If an optional microSD card is installed, the camera supports 24/7 continuous recording.
- Rikodin shiga footage via the Alarm.com platform. Ensure the microSD card is properly formatted as per Alarm.com guidelines.
5.3 Binciken Hankali
- Configure object detection and business activity tracking settings within the Alarm.com platform.
- Utilize the Perimeter Guard feature for LED and audio alerts, if supported by your camera's firmware version.
6. Kulawa
Kulawa na yau da kullun yana tabbatar da kyakkyawan aiki da tsawon rayuwar kamarar ku.
- Tsaftacewa: Lokaci-lokaci tsaftace ruwan tabarau na kamara da gidaje tare da taushi, damp zane. Kauce wa masu tsabtace abrasive.
- Sabunta Firmware: Ensure your camera's firmware is up to date. Firmware updates are typically managed through the Alarm.com platform and provide performance enhancements and new features.
- Duban Kebul: Regularly inspect all cables and connections for wear or damage, especially in outdoor environments.
7. Shirya matsala
Koma zuwa teburin da ke ƙasa don batutuwan gama gari da mafitarsu.
| Batu | Dalili mai yiwuwa | Magani |
|---|---|---|
| No Power / Camera Not Turning On | No PoE connection; Faulty Ethernet cable; PoE switch issue. | Verify Ethernet cable connection; Ensure PoE source is active; Try a different cable or PoE port. |
| Babu Ciyarwar Bidiyo | Network connectivity issue; Incorrect camera configuration; Firewall blocking. | Check network connection; Verify camera settings in Alarm.com; Ensure network allows camera traffic. |
| Rashin ingancin Hoto | Dirty lens; Incorrect focus (varifocal); Low light conditions; Network bandwidth. | Clean the lens; Adjust varifocal lens remotely; Ensure adequate lighting or check IR functionality; Verify network bandwidth. |
| SD Card Recording Not Working | SD card not installed; SD card full or corrupted; Incorrect recording settings. | Install a compatible microSD card; Format or replace SD card; Check recording settings in Alarm.com. |
8. Ƙayyadaddun bayanai
Detailed technical specifications for the Alarm.com ADC-VC728PF camera.
| Siffar | Ƙayyadaddun bayanai |
|---|---|
| Sunan Samfura | Alarm.com VC728PF |
| Ingancin Har yanzu Ƙaddamarwa | 4 MP |
| Ƙimar Ɗaukar Bidiyo | 1080, 1920p |
| Nau'in Lens | Motorized Varifocal (3.2-9.8mm) |
| Fasahar Haɗuwa | Waya (Ethernet) |
| Tushen wutar lantarki | PoE (Power akan Ethernet) |
| Amfanin Cikin Gida/Waje | Cikin Gida, Waje |
| Nau'in hawa | Dutsen bango |
| Factor Factor | Harsashi |
| Girma (L x W x H) | 6.8 x 3 x 3 inci |
| Nauyin Abu | 1.86 fam |
| UPC | 850010773322 |
| Siffofin Musamman | PoE, 4MP, WDR, HDR, IR Night Vision, Business Activity Analytics, Perimeter Guard |
9. Garanti da Tallafawa
For warranty information, technical support, or service inquiries, please contact Alarm.com directly or refer to their official webShafin yanar gizo. Ajiye rasitin siyan ku don tabbatar da garanti.
- Taimako kan layi: Visit the official Alarm.com support portal for FAQs, troubleshooting guides, and software downloads.
- Tuntuɓi Sabis na Abokin Ciniki: Refer to your Alarm.com service provider for direct customer support.
