Fender Bassman Reverb Pedal

Gabatarwa

The Fender Bassman Reverb Pedal is designed to provide bass-tuned room and hall reverb effects, enhancing your instrument's tone with depth and space. This pedal incorporates meticulously crafted analog and digital circuits to deliver professional-grade reverb while maintaining low-end clarity. Its compact design makes it suitable for any pedalboard.

Mabuɗin Siffofin

• Bass-tuned room and hall reverb DSP algorithms with analog dry-through.
• Low cut knob and pre-delay switch to maintain signal clarity.
• Cikin damp control for adjusting the high frequency content of the reverb signal.
• Soft-touch switchable true or buffered bypass with trails.
• Side-mounted pad switch to suit active basses.

Saita

Before connecting the pedal, ensure your amplifier and other effects are powered off. Use high-quality instrument cables for optimal signal integrity.

Haɗin kai

1. Haɗa guitar bass ɗin ku zuwa INPUT jack on the pedal.
2. Haɗa da FITARWA jack of the pedal to your ampshigar da lifier.
3. Connect a 9V DC power supply (center-negative) to the 9V DC IN jak.

Hoto 1: Na baya view of the pedal with input, output, and power connections.

The rear of the pedal features clearly labeled input, output, and power jacks for easy connection to your instrument and ampmai sanyaya wuta.

Gudanarwar Aiki

The Bassman Reverb Pedal features intuitive controls for shaping your desired reverb sound. Familiarize yourself with each knob and switch to unlock the pedal's full potential.

Hoto 2: Sama view of the pedal's control layout.

Kwankwasawa

• LOKACI: Adjusts the length of the reverb decay. Turn clockwise for longer, more expansive reverb tails.
• KASAN KASHI: Controls the amount of low frequencies removed from the reverb trails. This helps prevent muddiness and maintains bass clarity.
• MATAKI: Sets the overall output volume of the reverb effect.

Sauyawa

• NAU'I: Selects between different reverb algorithms (e.g., Room, Hall). Refer to the description for specific algorithm details.
• PRE: Engages or disengages the pre-delay function, which introduces a slight delay between the dry signal and the onset of the reverb. This can add clarity to individual notes.

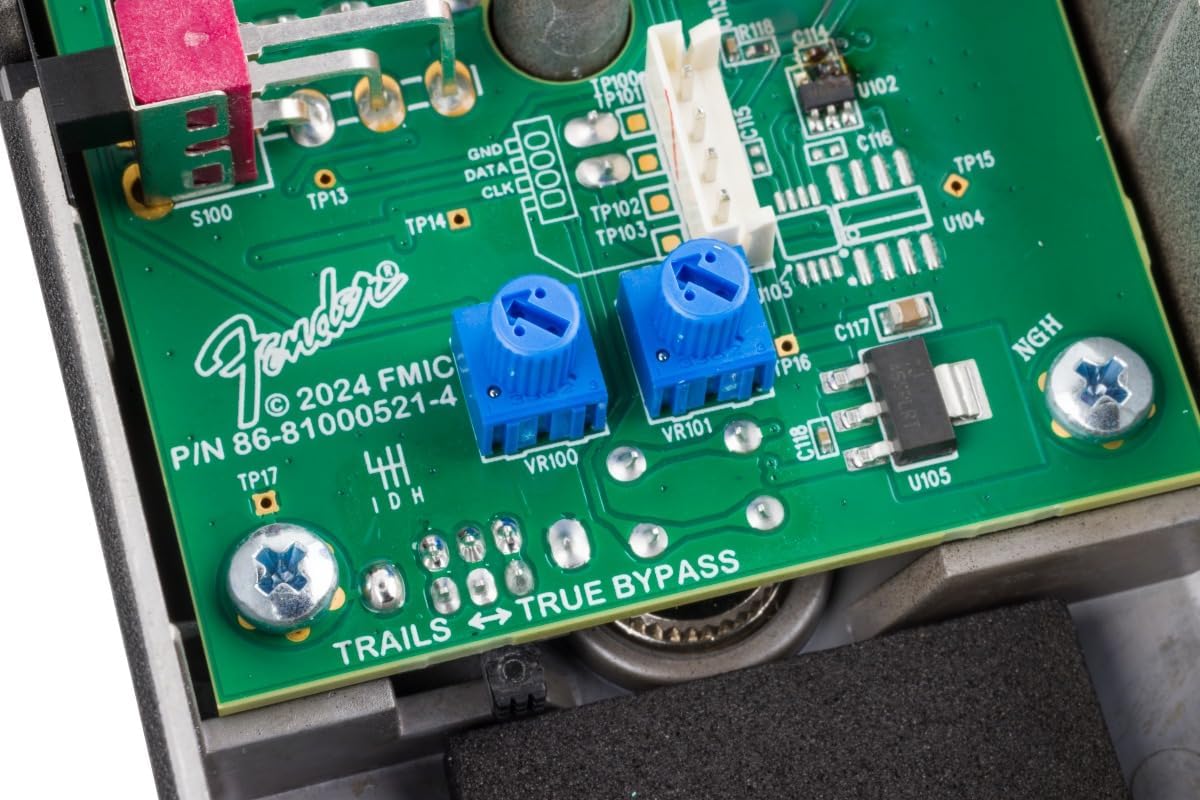

Ikon Cikin Gida

• DAMP Sarrafa: An internal control that adjusts the high-frequency content of the reverb signal. This allows for fine-tuning the brightness or darkness of the reverb.
• Bypass Switch (True/Buffered): The pedal offers soft-touch switchable true or buffered bypass with trails. This setting can typically be adjusted via an internal switch or specific power-up sequence. Consult the full technical manual for detailed instructions on changing bypass modes.

Side-Mounted Switch

• PAD Canja: A side-mounted switch designed to accommodate active basses by providing an input pad, preventing signal overload.

Ƙaddamar da Fedal

The Bassman Reverb Pedal operates on a standard 9V DC power supply (center-negative). Ensure the power supply meets the specified voltage and polarity requirements to avoid damage to the unit.

• Voltage: 9 Volts
• Amplokaci: miliyan 100amps (minimum recommended)
• Tushen wutar lantarki: Battery Powered (internal 9V battery) or external DC power supply.

Kulawa

To ensure the longevity and optimal performance of your Bassman Reverb Pedal, follow these maintenance guidelines:

• Tsaftacewa: Yi amfani da kyalle mai laushi da busasshe don tsaftace waje na fedal. A guji masu tsaftace ko abubuwan da ke da sinadarai masu ƙarfi.
• Ajiya: Ajiye feda a cikin busasshiyar wuri mai sanyi, nesa da hasken rana kai tsaye da kuma yanayin zafi mai tsanani.
• Madadin Baturi: If using a battery, replace it when the indicator light dims or the effect performance degrades. Disconnect the input cable when not in use to conserve battery life.
• Haɗin kai: Periodically check all cable connections for tightness and wear.

Shirya matsala

If you experience issues with your pedal, try the following steps:

• Babu Sauti: Check all cable connections, power supply, and ensure the pedal is engaged. Test with different cables and power supply if possible.
• Weak/Distorted Sound: Verify the input signal level (especially with active basses and the PAD switch). Check battery life if applicable.
• Yawan Hayaniya: Ensure you are using a high-quality, isolated power supply. Check for ground loops in your signal chain.
• Tasirin Rashin Sha'awa: Ensure the footswitch is functioning correctly. If in buffered bypass mode, check the internal bypass setting.

Ƙayyadaddun bayanai

Garanti da Taimako

For warranty information, technical support, or service inquiries, please refer to the official Fender website or contact your authorized Fender dealer. Keep your purchase receipt as proof of purchase.
