Ambition Soldier 270 S Wireless Tattoo Pen Machine Instruction Manual

1. Gabatarwa

Thank you for choosing the Ambition Soldier 270 S Wireless Tattoo Pen Machine. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use and retain it for future reference.

2. Samfurin Ya Ƙareview da Features

The Ambition Soldier 270 S is a high-performance wireless tattoo pen machine designed for professional artists. It features a robust aluminum alloy construction, a powerful brushless motor, and a versatile battery system.

• Abu: Constructed from durable aluminum alloy, ensuring longevity and a comfortable grip for extended sessions.
• High Torque Brushless Motor: Equipped with a 270 g.cm high torque brushless motor for improved stability and reliability. This motor minimizes issues like needle skipping and wire breakage, even at lower voltage.
• Direct Drive System: Features a direct drive system with a built-in 5.0mm cam, ideal for fast coloring and fogging. An additional 4.5mm stroke cam accessory is included for fine line work.
• Multifunctional Battery: The 2400mAh battery provides approximately 7-8 hours of operation and supports both frequency and regular working modes.
• Madaidaicin Nauyi: Weighs 200g, designed for comfortable handling and reduced fatigue during long tattoo sessions.
• Hanyoyin Aiki Biyu: Can be used wirelessly with the battery or wired via the included RCA adapter when the battery is depleted.
• Ƙananan Voltage Aiki: Capable of operating at voltages as low as 1V, which can help reduce skin damage, pain, and promote faster healing.

Image: Ambition Soldier 270 S Wireless Tattoo Machine with key specifications displayed.

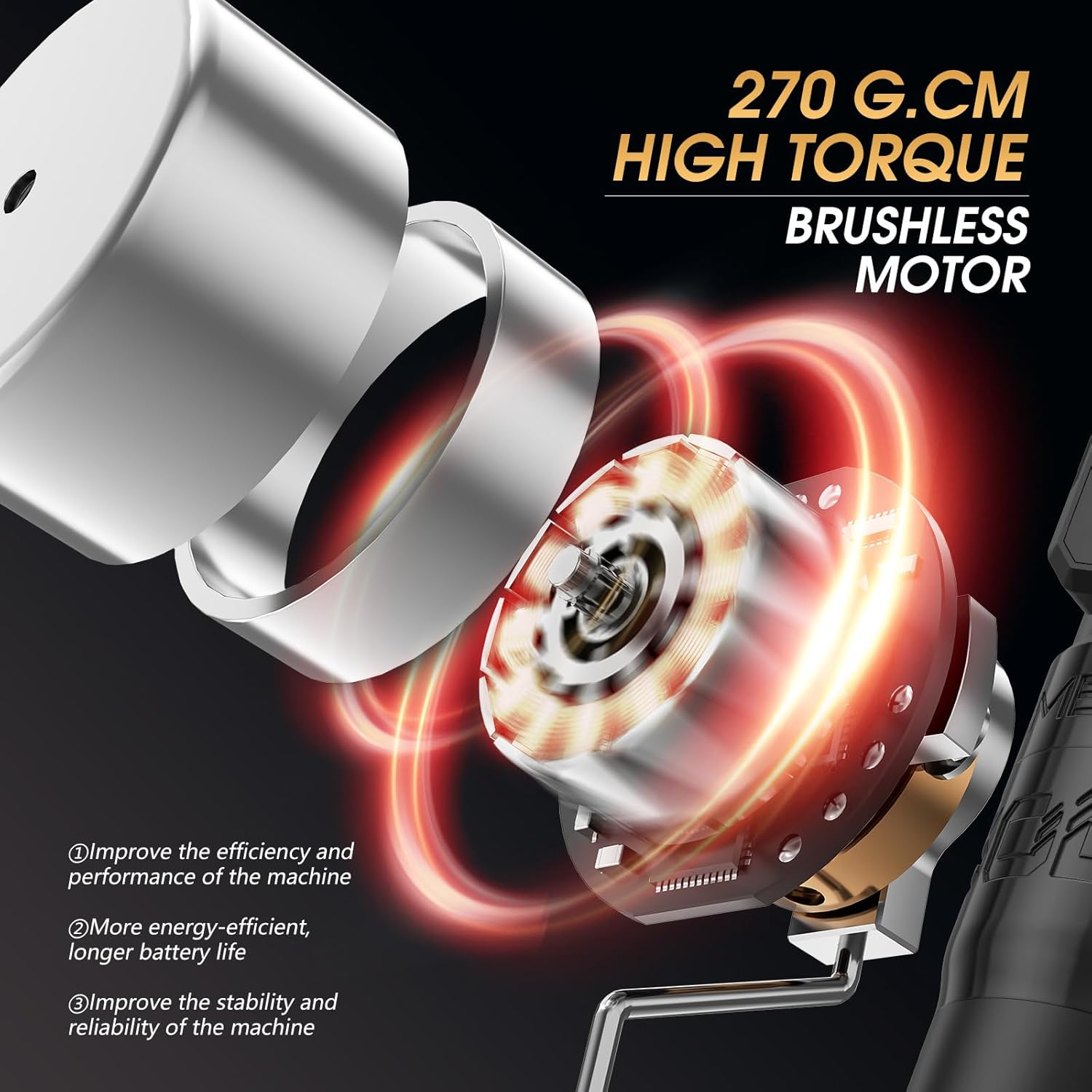

Hoto: Dalla-dalla view of the 270 g.cm high torque brushless motor, highlighting its internal components and benefits for efficiency, battery life, and stability.

Image: Illustration of the direct drive system, showing the 5.0mm original cam and the included 4.5mm extra stroke cam accessory, compatible with the motor for powerful and low-vibration operation.

3. Abubuwan Kunshin

The Ambition Soldier 270 S package includes the following items:

• 1 x Wireless Tattoo Pen Machine
• 1 x Extra Battery
• 1 x Extra 4.5 mm Stroke Cam
• 1 x RCA Adapter
• 1 x Fast Charging Cable
• 1 x Zipper Box

4. Bayanin Tsaro

GARGADI:

• Don amfanin waje kawai.
• Ka guji haɗuwa da idanu.
• Ka nisantar da harshen wuta.
• This device is intended for professional use by trained individuals.
• Always follow proper sterilization and hygiene protocols for tattoo equipment.

5. Saita

5.1 Cajin Baturi

Before initial use, fully charge the battery. Use the provided fast charging cable and a 5V/2A charging adapter (not included, recommended to use original charging cable). Do not completely drain the battery before charging, as this can damage the battery's lifespan.

Image: Close-up of the battery unit, showing the USB-C charging port, timer, billing, hertz, battery indicator, model, and voltage display. Charging input recommendation is also visible.

5.2 Attaching the Battery/RCA Adapter

Align the battery unit with the machine body and twist to secure. Alternatively, for wired operation, attach the RCA adapter to the machine body and connect an RCA cable to a separate power supply.

Image: The Ambition Soldier 270 S machine demonstrating both wireless operation with the battery and wired operation using the RCA adapter.

5.3 Installing/Changing Stroke Cam

The machine comes with a 5.0mm stroke cam installed. To change to the 4.5mm stroke cam (included accessory), carefully disassemble the relevant section of the machine as per the diagram in Section 2, replace the cam, and reassemble securely.

5.4 Needle Cartridge Installation

Insert your preferred needle cartridge into the machine's grip, twisting gently until it locks into place. Ensure the needle is securely seated before operation.

6. Umarnin Aiki

6.1 KUNNA/KASHE

To power ON or OFF the machine, long press the 'O' key for 3 seconds.

6.2 Output Pause/Resume

A lokacin aiki, short press the 'O' key to pause the output. Short press it again to resume the output.

6.3 Adjusting Voltage

While the machine is paused, use the '+' and '-' buttons to adjust the voltage. Voltage range is 1-12V, adjustable in 0.1V increments.

6.4 Switching Startup Mode

To switch between frequency mode and regular mode, double press the 'O' key.

6.5 8V Jump Start

The machine features an 8V jump start function for easier initiation with certain cartridges or techniques.

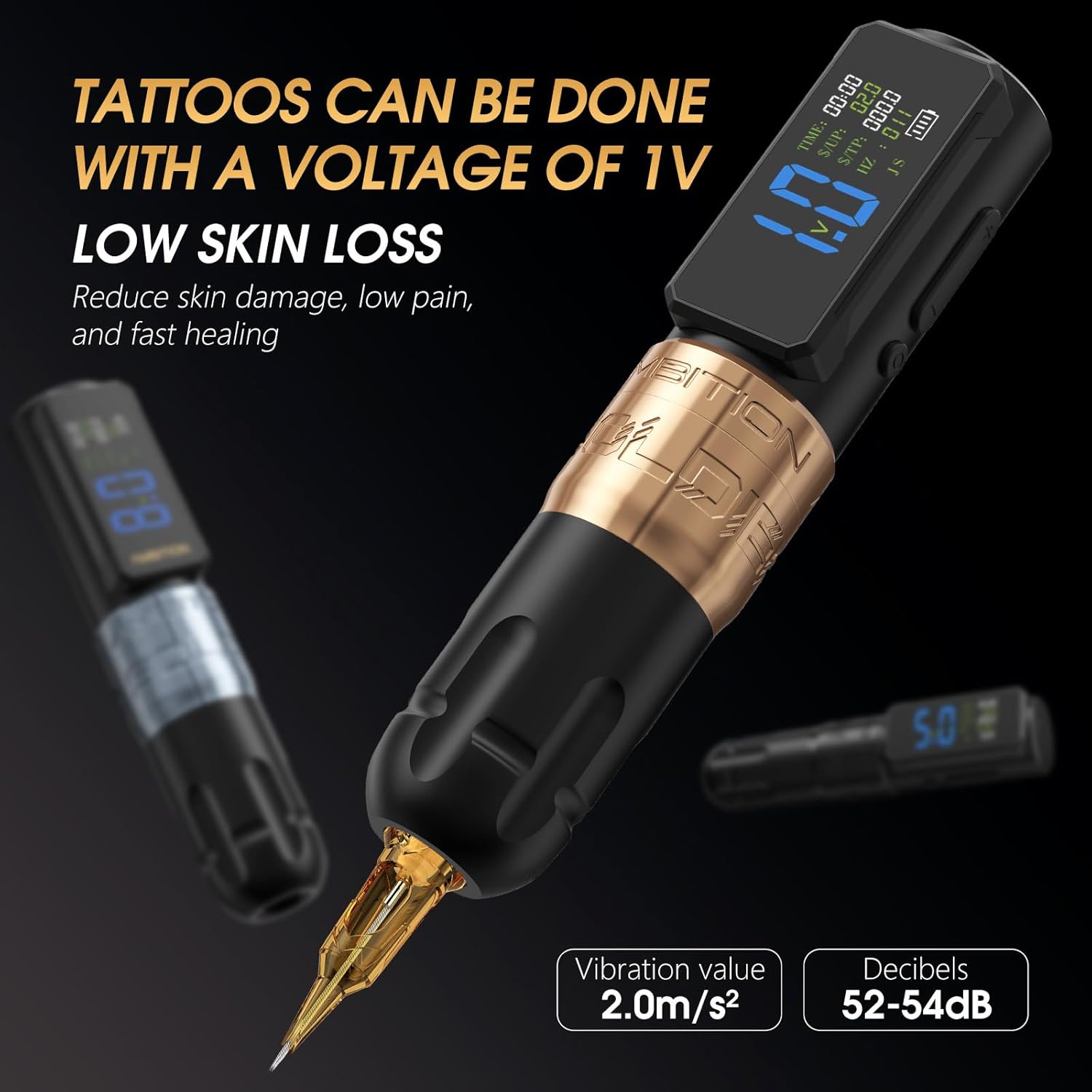

Image: The Ambition Soldier 270 S machine in operation, illustrating its capability for low voltage tattooing (1V) to minimize skin damage, pain, and promote faster healing.

7. Kulawa

Proper maintenance ensures the longevity and optimal performance of your tattoo machine.

• Tsaftacewa: After each use, thoroughly clean the exterior of the machine with a suitable disinfectant wipe. Do not immerse the machine in liquids.
• Haifuwa: Ensure all components that come into contact with skin or ink are properly sterilized according to industry standards. The machine body itself is not autoclavable.
• Ajiya: Store the machine in its zipper box or a clean, dry environment away from direct sunlight and extreme temperatures.
• Kulawar Baturi: Charge the battery regularly, even if not in frequent use, to maintain its health. Avoid overcharging or completely discharging the battery.
• Lubrication: The direct drive system is designed for minimal maintenance. Do not attempt to lubricate internal motor components unless specifically instructed by the manufacturer.

8. Shirya matsala

If you encounter issues with your Ambition Soldier 270 S, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Ambition customer support.

9. Ƙayyadaddun bayanai

10. Garanti da Tallafawa

Ambition products are manufactured to high-quality standards. For warranty information, product support, or service inquiries, please contact Ambition customer service through the retailer where the product was purchased or visit the official Ambition webShafin yanar gizo. Da fatan za a sami samfurin samfurin ku da ranar siyan ku lokacin tuntuɓar tallafi.
