Homary 71" Electric Fireplace TV Stand

1. Gabatarwa

Thank you for choosing the Homary 71" Electric Fireplace TV Stand. This media console is designed to accommodate TVs up to 75+ inches, featuring a 57.1'' electric fireplace insert with remote control and touch panel operation. Crafted from engineered wood with a marble veneer finish, it offers both elegant design and practical functionality, including heating capabilities and ample storage. This manual provides essential information for safe assembly, operation, and maintenance of your new TV stand.

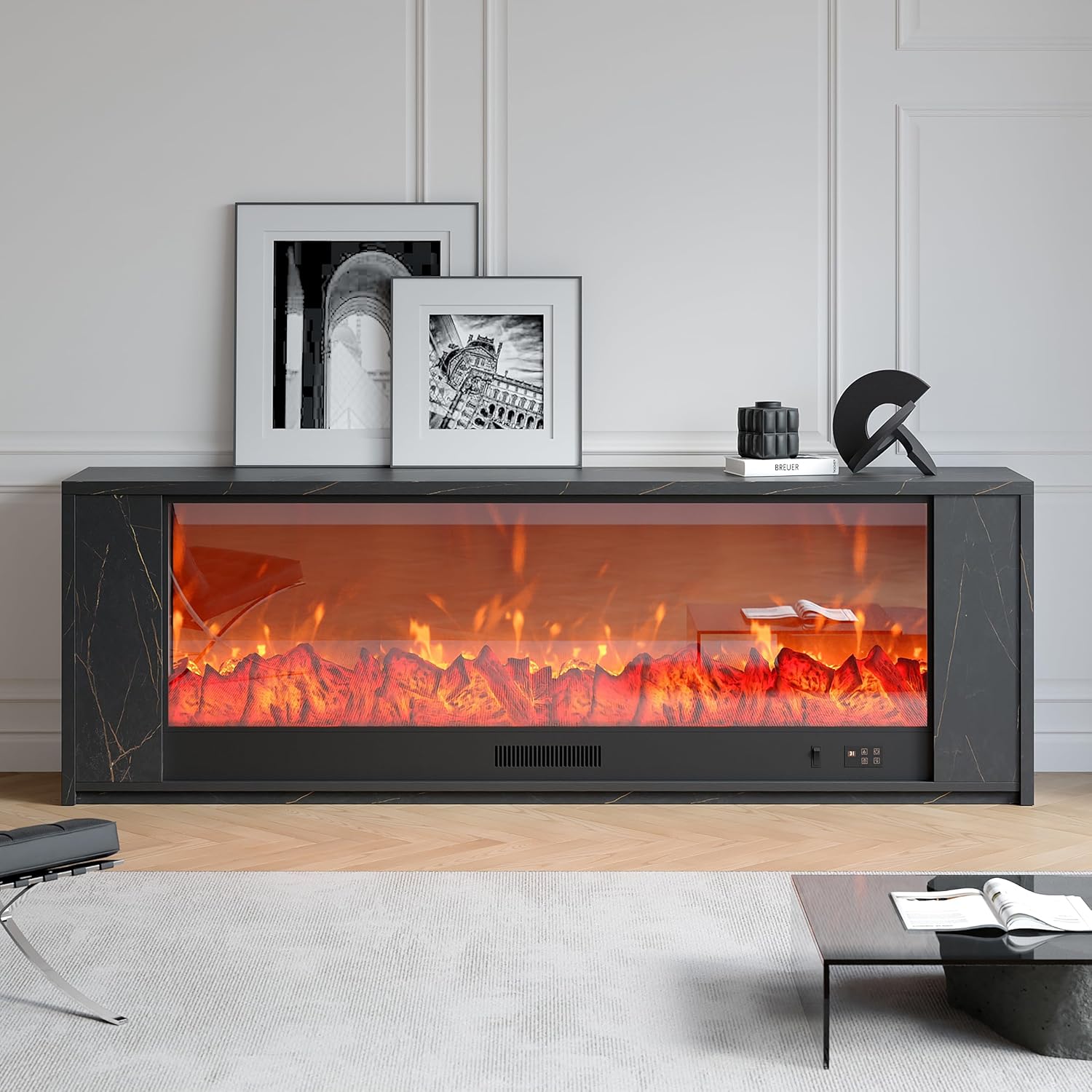

Figure 1: Homary 71" Electric Fireplace TV Stand with realistic flames.

2. Bayanin Tsaro

• Karanta duk umarnin kafin amfani da wannan na'urar.
• Do not operate any fireplace with a damaged cord or plug, or if the heater has malfunctioned or been dropped/damaged in any manner.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater.
• Koyaushe cire toshe murhu lokacin da ba a amfani da shi.
• Kar a saka ko ƙyale abubuwa na waje su shiga kowane buɗaɗɗen iska ko shaye-shaye saboda wannan na iya haifar da girgiza wutar lantarki ko wuta, ko lalata injin dumama.
• Koyaushe yi amfani da kafaffen ƙasa yadda ya kamata, gauraye, da kantunan da ba su da tushe.
• Ensure the TV stand is placed on a stable, level surface.
• Keep children and pets away from the fireplace and heating vents.

3. Abubuwan Kunshin

Your Homary Electric Fireplace TV Stand will be delivered in two cartons. Please ensure all parts are present before beginning assembly. Refer to the parts list image below for identification.

Hoto 2: Samaview na duk sassan da aka haɗa a cikin kunshin.

4. Umarnin Majalisa

Follow these step-by-step instructions carefully. All screws and parts are labeled for easy identification. It is recommended to have two people for assembly.

Step 1: Prepare the Base Panels

Attach the LED strip to the designated top plate (Part 8) and secure the LED power cord using the provided clips and screws.

Mataki 2: Haɗa Panels na gefe

Connect the side panels (Part 2 and 8) using screws (A) and wooden dowels (E) as shown. Ensure the LED cable passes through the designated hole.

Mataki 3: Haɗa Babban Panel

Secure the top panel (Part 4) to the assembled side panels using screws (A) and wooden dowels (D).

Step 4: Complete the Side Structure

Repeat steps 1-3 for the other side of the TV stand, ensuring symmetry and proper alignment.

Step 5: Connect the Main Body

Connect the two side structures to the main central panel (Part 14) using screws (A) and wooden dowels (D).

Step 6: Install Support Legs

Attach the support legs (Part 15 and 17) to the bottom of the main central panel using screws (J) and wooden dowels (D).

Step 7: Attach Back Panels

Secure the back panels (Part 10) to the rear of the side structures using screws (F).

Step 8: Install the Top Shelf

Place the top shelf (Part 1) onto the assembled structure and secure it with screws (A).

Step 9: Connect LED Wires

Connect the LED wires from the side panels to the main power source, ensuring all connections are secure.

Step 10: Insert Fireplace Unit

Carefully slide the electric fireplace unit into the central opening of the TV stand. Secure it with screws (S).

Step 11: Place Decorative Crystals

Open the bag of decorative crystals and carefully place them along the bottom of the fireplace insert.

Step 12: Attach Fireplace Front Panel

Secure the fireplace front panel to the unit using screws (S).

Mataki 13: Sanya Ƙofofin Majalisar

Attach the hinges (N) to the cabinet doors (Part 11) and then secure the doors to the side cabinets using screws (G).

Step 14: Adjust Door Alignment

Adjust the hinges to ensure proper door alignment (left/right and front/back) for a seamless look.

Mataki na 15: Haɗin Ƙarshe

Connect the main power cord of the fireplace to a suitable electrical outlet. Ensure all cables are neatly managed through the cable management holes.

Bidiyo na Babban Taro

Video 1: Detailed assembly instructions for the TV stand with fireplace.

5. Umarnin Aiki

Your electric fireplace TV stand can be operated using the included remote control or the touch panel located on the fireplace unit.

5.1. Remote & Touch Control

The remote control and touch panel allow you to adjust various settings of the electric fireplace.

Figure 3: Remote control and touch panel interface.

• Ƙarfi: Turn the fireplace unit ON or OFF.
• Hasken Harshe: Adjust the intensity of the flame effect. There are 5 types of flame brightness settings.
• Mai zafi: Activate the heating function. The heater can warm areas up to 400 square feet.
• Zazzabi: Adjust the desired room temperature. The temperature can be set between 15°C - 45°C (62°F - 82°F).
• Mai ƙidayar lokaci: Set an automatic shut-off timer for the fireplace, ranging from 1 to 9 hours.

5.2. Flame Effects

The fireplace features realistic flame effects that can be customized. You can enjoy the flame effect independently without activating the heating function.

Figure 4: Remote control with flame brightness options.

5.3. Ayyukan dumama

The electric fireplace provides supplemental heating for rooms up to 400 square feet. The heat is emitted from the vent located above the flame display.

Figure 5: Heat output from the fireplace vent.

6. Kulawa

• Tsaftacewa: Koyaushe cire kayan aikin kafin tsaftacewa. Yi amfani da taushi, damp cloth to wipe surfaces. Do not use abrasive cleaners or solvents.
• Ƙura: Regularly dust the TV stand and fireplace unit to prevent dust buildup, especially around air vents.
• Kulawar Igiya: Periodically inspect the power cord for any signs of damage. If damaged, discontinue use and contact customer service.

7. Shirya matsala

• Babu Ƙarfi: Ensure the power cord is securely plugged into a grounded outlet. Check your household circuit breaker.
• Babu Zafi: Verify the heater function is activated and the temperature setting is above the current room temperature. Ensure air vents are not obstructed.
• Ikon nesa Baya Aiki: Check the batteries in the remote control and replace if necessary. Ensure there are no obstructions between the remote and the fireplace unit.
• Tasirin Harshe Ba Ya Aiki: Ensure the unit is powered on. If the flame effect is still not visible, contact customer support.

8. Ƙayyadaddun bayanai

Hoto 6: Girman samfur.

Figure 7: TV size compatibility.

9. Garanti da Abokin ciniki Support

All Homary products come with comprehensive product support. For any inquiries or assistance, please do not hesitate to reach out to our customer service team. We aim to respond within 12 hours.

• Nau'in Garanti: Iyakance
• Tuntuɓar: For support, please refer to the contact information provided with your purchase or visit the official Homary website.
