BSTUOKEY TF108 WiFi Fingerprint Access Control System User Manual

1. Sama daview

The BSTUOKEY TF108 is a state-of-the-art WiFi Fingerprint Access Control System designed for secure and convenient entry management. This integrated stand-alone unit features a robust ABS shell, an IP66 waterproof rating, and supports multiple access methods, making it suitable for various indoor and outdoor applications.

Mabuɗin fasali:

Hanyoyi masu yawa: Fingerprint, RFID card (125Khz EM & 13.56Mhz MF), User PIN, Tuya App, and temporary passwords.
Babban Ƙarfin Mai Amfani: Supports up to 100 fingerprints and 1000 card users.
Tuya App Integration: Remote management, user addition/deletion, unlocking records, temporary password generation, and sharing management permissions.
Dorewa & Mai hana ruwa: IP66 rated for outdoor use, resistant to rain, dust, and wind.
Biometric Fingerprint Sensor: Live biometric recognition for rapid identification (less than 0.5 seconds).
Backlit Touch Keypad: Ensures visibility and ease of use in low-light conditions.
Wiegand Card Reader Functionality: Can be configured as a professional Wiegand card reader.

BSTUOKEY TF108 Access Control System with key fobs and smartphone showing app interface. — Image 1.1: The BSTUOKEY TF108 Access Control System, displaying its sleek design, integrated fingerprint sensor, numeric keypad, and a smartphone illustrating the Tuya app control. Several colorful RFID key fobs are also shown.

Features of BSTUOKEY TF108 including remote unlocking, user management, waterproof, dual frequency, and environmental temperature range. — Image 1.2: An illustration highlighting the key features of the TF108, such as remote unlocking via mobile app, user data management, temporary passwords, record query, full waterproofing, dual frequency card swiping, and an operational temperature range of -20°C to 60°C.

2. Abubuwan Samfur

The standard package for the BSTUOKEY TF108 Access Control System includes the following items:

1 x Door Access Control Keypad (TF108 unit)
1 x Littafin shigarwa
10 x IC 13.56Mhz Mixed Key Fobs
Kayan aikin hawa (skru da anka bango)

Contents of the BSTUOKEY TF108 product package including the keypad, manuals, and key fobs. — Image 2.1: A visual representation of the product list, showing the TF108 access control keypad, two instruction manuals, mounting screws, and a set of colorful RFID key fobs.

Close-up of the TF108 keypad showing touch buttons, card swiping area, and fingerprint recognition area. — Hoto 2.2: Cikakken bayani view of the TF108 keypad, labeling the touch buttons (numeric 0-9, *, #), the card swiping area, and the fingerprint recognition area. The keypad features a backlight for use in dim environments.

3. Ƙayyadaddun bayanai

Siffar	Daki-daki
Lambar Samfura	TF108
Alamar	BSTUOKEY
Launi	Baki
Tushen wutar lantarki	Corded Electric
Voltage	12 Volts
Watatage	36 Watts
Fasahar Haɗuwa	Wired (with WiFi for App control)
Nau'in Shigarwa	Haɗin Waya
Na'urori masu jituwa	Glass door, Iron door, Wooden door
Girman Abu (L x W x H)	5.12 x 1.85 x 0.67 inci (130 x 46 x 16 mm)
Nauyin Abu	0.26 fam (4.2 oz)
Kimar hana ruwa	IP66
Ƙarfin Sawun yatsa	100
Ƙarfin Mai Amfani da Kati	1000
Frequency RFID	125Khz EM + 13.56Mhz MF (Dual Frequency)
Hanyar sarrafawa	App, Fingerprint, Card, PIN

Dimensions of the BSTUOKEY TF108 access control unit. — Hoto 3.1: Gaba da baya views of the TF108 unit, illustrating its dimensions (130mm height, 46mm width, 16mm depth) and the wiring harness on the rear.

4. Saita da Shigarwa

Proper installation is crucial for the optimal performance and security of your access control system. It is recommended that installation be performed by individuals with basic electrical knowledge.

4.1 Tsarin Waya

Refer to the following diagram for connecting the TF108 unit to your power supply and other access control components (e.g., electric lock, exit button, doorbell).

Detailed wiring diagram for the BSTUOKEY TF108 access control keypad. — Image 4.1: A color-coded wiring diagram for the TF108, showing connections for +12V (red), GND (black), D0 (green), D1 (white), OPEN (yellow), NO (blue), COM (purple), ALARM- (grey), NC (orange), and D-IN (brown).

4.2 System Integration Diagram

This diagram illustrates how the TF108 integrates into a complete access control system, including a power supply, electric lock, doorbell, and exit button.

Diagram showing the integration of the TF108 access control unit with a power supply, magnetic lock, doorbell, and exit button. — Image 4.2: An access control system diagram depicting the TF108 unit connected to a power supply control, a 180KG magnetic lock on a door, a doorbell, and an exit button, demonstrating a typical setup.

4.3 Shigarwa na Jiki

Shirya Dutsen Sama: Choose a suitable location on the door frame or wall, ensuring it is flat and stable.
Ramin Fasa: Use the provided template (if available in the physical manual) to mark and drill holes for mounting screws and wiring.
Haɗa Waya: Follow the wiring diagram (Image 4.1) carefully to connect the TF108 to the power supply, electric lock, and any other peripherals. Ensure all connections are secure and insulated.
Dutsen Unit: Secure the TF108 unit to the prepared surface using the provided screws.
Kunna Wuta: Once all connections are verified, apply power to the system.

5. Umarnin Aiki

The TF108 offers multiple methods for unlocking and user management. Detailed instructions for programming and daily use are provided in the included physical manual.

5.1 Tuya App Remote Management

The Tuya App provides comprehensive remote control and management capabilities for your access control system.

Zazzage App: Bincika "Tuya Smart" in your mobile app store and install it.
Haɗin Na'ura: Follow the in-app instructions to pair your TF108 device with your smartphone.
Gudanar da Mai amfani: Add, modify, or delete user fingerprints, cards, and PINs directly from the app.
Buɗe Nesa: Unlock the door remotely via the app.
Kalmomin sirri na wucin gadi: Generate time-limited or single-use passwords for visitors.
Rikodin shiga: View a log of all unlocking events and access attempts.
Kulle ta atomatik: Configure automatic locking functions.

Smartphone displaying the Tuya app interface for intelligent access control management. — Image 5.1: A smartphone screen showing the Tuya app interface, demonstrating its capabilities for adding and managing users, checking unlocking records, and sharing temporary passwords for the access control system.

5.2 Hanyoyin Buɗewa

The TF108 supports various methods for unlocking the door:

Buɗe Sawun yatsa: Place a registered finger on the fingerprint recognition area. The system will verify and unlock the door.
Card Unlocking: Present a registered RFID card or key fob to the card swiping area.
PIN Unlocking: Enter a registered user PIN on the keypad, followed by the '#' key.
Buɗe Manhaja: Use the Tuya App on your smartphone to remotely unlock the door.
Combination Unlocking: The system may support combinations like Card + PIN for enhanced security.

Illustrations of multiple unlocking methods for the TF108 access control system. — Hoto na 5.2: Na gani na bayaamples of the four primary unlocking methods: Tuya APP unlock, password unlocking via keypad, fingerprint unlocking, and 13.56Mhz + 125Khz RFID dual frequency card swiping.

5.3 Fingerprint Enrollment and Recognition

The TF108 utilizes a semiconductor fingerprint sensor for quick and accurate recognition.

Shiga: Follow the instructions in the physical manual or Tuya App to enroll new fingerprints. Typically, this involves placing the finger on the sensor multiple times from different angles.
Ganewa: For unlocking, place a registered finger firmly and completely on the sensor. The system will identify the fingerprint in approximately 0.5 seconds.

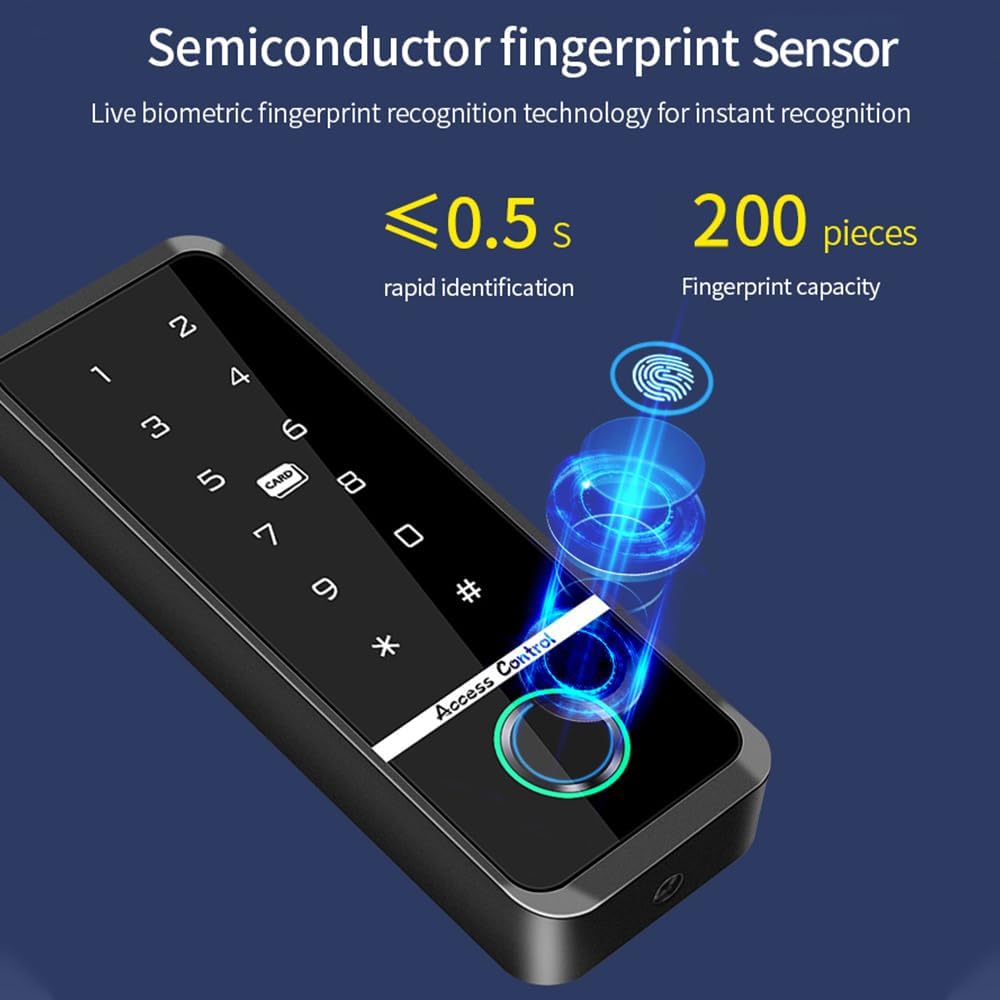

Diagram illustrating the semiconductor fingerprint sensor technology of the TF108. — Image 5.3: A graphic illustrating the semiconductor fingerprint sensor, highlighting its live biometric recognition technology for instant identification (less than 0.5 seconds) and a capacity of 200 fingerprints.

6. Kulawa

To ensure the longevity and reliable operation of your BSTUOKEY TF108 access control system, follow these maintenance guidelines:

Tsaftacewa: Regularly wipe the keypad and fingerprint sensor with a soft, dry, or slightly damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface or internal components.
Kariyar Muhalli: Although the device is IP66 waterproof, avoid prolonged exposure to extreme weather conditions or direct high-pressure water jets.
Sabunta Firmware: Periodically check the Tuya App for any available firmware updates for the device. Keeping the firmware updated ensures optimal performance and security.
Duban Kebul: Occasionally inspect the wiring connections for any signs of wear, corrosion, or loose connections. Ensure all cables are properly secured and protected.
Battery (if applicable): This model does not use batteries. It is powered by a corded electric connection.

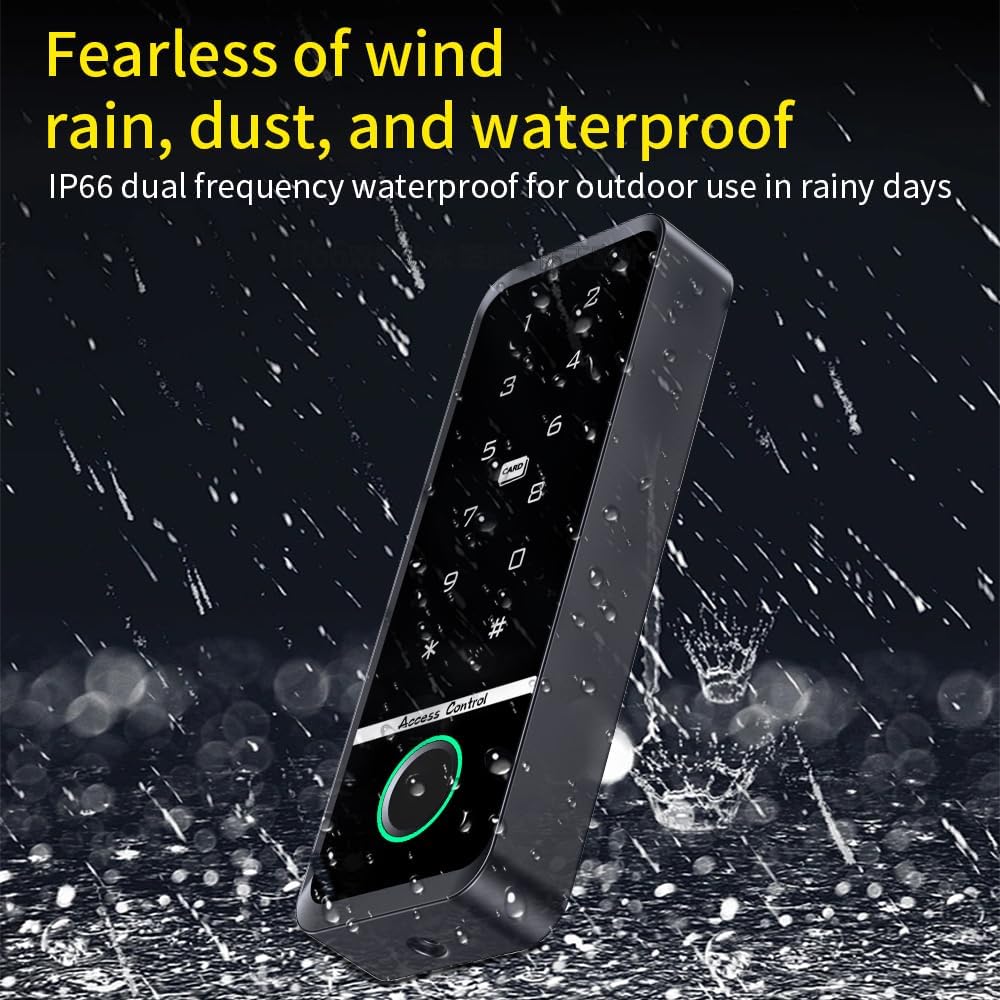

BSTUOKEY TF108 access control unit being splashed with water, demonstrating its waterproof capability. — Image 6.1: The TF108 unit shown with water splashing, emphasizing its IP66 waterproof rating and suitability for outdoor use in various weather conditions.

7. Shirya matsala

If you encounter issues with your TF108 access control system, refer to the following common problems and solutions:

Matsala	Dalili mai yiwuwa	Magani
Na'urar baya kunnawa.	No power supply; loose wiring.	Check power connection and ensure wiring is secure according to the diagram. Verify power source is active.
Ba a gane sawun yatsa ba.	Finger not placed correctly; unregistered fingerprint; dirty sensor.	Ensure finger covers the entire sensor. Try different angles. Re-enroll fingerprint if necessary. Clean the sensor surface.
Katin RFID ba ya aiki.	Unregistered card; incorrect card type; card damage.	Ensure the card is registered. Verify it's a compatible 125Khz EM or 13.56Mhz MF card. Try another card.
PIN code not unlocking.	Incorrect PIN; PIN not registered; '#' key not pressed.	Double-check the PIN. Ensure the PIN is registered. Always press '#' after entering the PIN.
Tuya App cannot connect to device.	WiFi signal issue; incorrect pairing; device offline.	Ensure strong 2.4GHz WiFi signal. Re-attempt pairing process. Check device status and power.
Kofa ba ta buɗewa bayan nasarar tantancewa.	Lock mechanism issue; wiring to lock is faulty; door obstruction.	Check the electric lock for proper function. Inspect wiring between the TF108 and the lock. Ensure no physical obstruction prevents the door from opening.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact technical support.

8. Garanti da Tallafawa

BSTUOKEY products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included with your product or contact BSTUOKEY customer service.

8.1 Tallafin Fasaha

If you require technical assistance, have questions about installation, operation, or troubleshooting, please reach out to our support team. Contact information can typically be found in the product packaging, on the BSTUOKEY official webshafin yanar gizo, ko kuma ta hanyar wurin siyan ku.

Our technical team is available to provide guidance and support to ensure you get the most out of your access control system.
